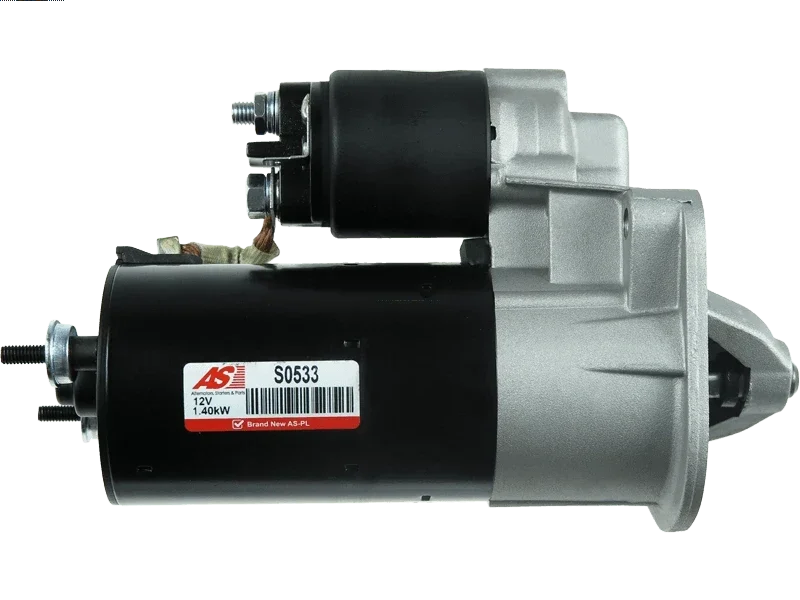

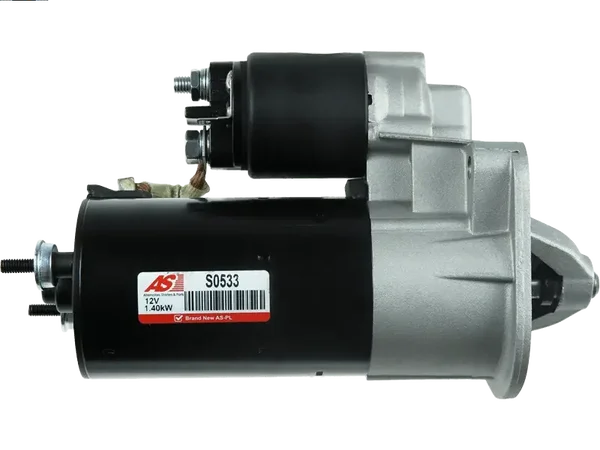

Démarreur Bosch 0001108166
Démarreur Bosch 0001108166
Référence : S0533
Référence OE : 0001108166
EAN : 5902129015529
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.40
Rotation du demarreur CW
Taille A [ mm ] 76.00
Taille B [ mm ] -1.00
Nombre de dents [ qty. ] 9
Nombre d'ouvertures dans la tete [ qty. ] 2
Nombre de trous filetes [ qty. ] 2
L.1 [ mm ] 241.00
O.1 [ mm ] 106.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
Balais charbons : BSX159-160 BSX229-230
Références démarreurs compatibles :
0001108166BOSCHListe
112818CARGO
F032112818CARGO
8EA730196-001HELLA
6.0133.9IKA
11.139.309ISKRA / LETRIKA
11.139.407ISKRA / LETRIKA
AZE2123ISKRA / LETRIKA
AZE2182ISKRA / LETRIKA
IS9309ISKRA / LETRIKA
943241060010MAGNETI MARELLI
944280166600MAGNETI MARELLI
MSR1060MAGNETI MARELLI
MS 216MAHLE
MS216MAHLE
20510116PRESTOLITE
S1029BPRESTOLITE
7700102000RENAULT
7700103386RENAULT
7700114428RENAULT
7701499617RENAULT
1363451VOLVOListe
1363451-0VOLVO
1363451-4VOLVO
30358564VOLVO
30658564VOLVO
30658565VOLVO
30815466VOLVO
30819127VOLVO
36050275VOLVO
5003810VOLVO
5003810-0VOLVO
5003810-8VOLVO
5003811VOLVO
5003918VOLVO
5003918-0VOLVO
5003918-9VOLVO
5003919VOLVO
8111302VOLVO
8111302-0VOLVO
8111302-9VOLVO
8111303VOLVO
8251551VOLVO
8251551-0VOLVO
8251551-1VOLVO
8602084VOLVOListe
86020849VOLVO
8602085VOLVOListe
8602085-0VOLVO
8602085-6VOLVO
8602086VOLVO
8602104VOLVO
8602104-0VOLVO
8602104-5VOLVO
9128421VOLVO
9128421-0VOLVO
9128421-6VOLVO
9128422VOLVO
9162617VOLVOListe
9162618VOLVOListe
9162618-4VOLVO
9442201VOLVO
STRL1753EFFE
CGB-25161AINDE
AES1216AUTOELECTRO
CST10158CASCO
CST10158ASCASCO
CST10158ESCASCO
CST10158GSCASCO
CST10158OSCASCO
CST10158RSCASCO
3652CEVAM
260-14111DIXIE
S-6160DIXIE
STR1113ELECTROLOG
STR1258ELECTROLOG
25-2037ELSTOCK
25-3135ELSTOCK
220104ERA
CS680HC PARTS
42016660HERTH+BUSS
10680KUHNER
10979KUHNER
22.0680MLAUBER
LRS02109LUCAS
LRS2109LUCAS
LRT00116LUCAS
8212223POWERMAX
810.504.093PSH
6010158SANDO
S12BH0798A2SIDAT
MAV121580SIOM
STX200143STARDAX
STX200143RSTARDAX
STX200473STARDAX
17508NWAI / TRANSPO
17508RWAI / TRANSPO
91-15-7036WILSON
91-15-7036NWILSON
STR50020WOODAUTO
STR50269WOODAUTO
Convient pour :
BUICK ELECTRA 3.0 LK9(183CUV6) 10.1984 - 09.1985
BUICK ELECTRA 3.8 LD5 10.1984 - 09.1986
BUICK ELECTRA 3.8 LN3 10.1986 - 09.1989
BUICK LESABRE 3.8 LN3 10.1986 - 09.1987
BUICK ELECTRA 3.8 LN3 10.1986 - 09.1990
BUICK LESABRE 3.8 LN3 10.1986 - 09.1987
BUICK ELECTRA 3.8 LN3 10.1984 - 09.1990
BUICK ELECTRA 4.1 LC4 10.1981 - 09.1984
DAEWOO LEGANZA (KLAV) 2.0 T20SED 01.2001 - 12.2002
DAEWOO LEGANZA (KLAV) 2.0 X20SED 06.1997 - 12.2002
DAEWOO LEGANZA (KLAV) 2.0 16V T20SED 07.2000 - 04.2004
DAEWOO LEGANZA (KLAV) 2.0 16V X20SED 06.1997 - 12.2002
DAEWOO LEGANZA (KLAV) 2.2 16V T22SED 04.1999 - 12.2002
RENAULT SAFRANE II (B54_) 2.0 16V (B54L) N7Q710 07.1996 - 12.2000
RENAULT SAFRANE II (B54_) 2.0 16V (B54L) N7Q711 07.1996 - 12.2000
RENAULT SAFRANE II (B54_) 2.5 20V (B54F) N7U700 07.1996 - 12.2000
RENAULT SAFRANE II (B54_) 2.5 20V (B54F) N7U701 07.1996 - 12.2000
VOLVO V40 Estate (645) 1.6 B4164S 12.1995 - 08.1999
VOLVO S40 I (644) 1.6 B4164S 09.1995 - 08.1999
VOLVO S40 I (644) 1.6 B4164S2 03.1999 - 12.2003
VOLVO V40 Estate (645) 1.6 B4164S2 03.1999 - 06.2004
VOLVO S40 I (644) 1.8 B4184S 07.1995 - 08.1999
VOLVO V40 Estate (645) 1.8 B4184S 07.1995 - 08.1999
VOLVO S40 I (644) 1.8 B4184S2 03.1999 - 12.2003
VOLVO V40 Estate (645) 1.8 B4184S2 03.1999 - 06.2004
VOLVO S40 I (644) 1.8 B4184S2 06.2001 - 08.2003
VOLVO V40 Estate (645) 1.8 B4184S3 07.1995 - 08.1999
VOLVO S40 I (644) 1.8 B4184S3 07.1995 - 08.1999
VOLVO V40 Estate (645) 1.8 Bi-Fuel B4184S9 11.1999 - 08.2003
VOLVO V40 Estate (645) 1.8 LPG B4184S9 03.1999 - 06.2004
VOLVO S40 I (644) 1.8 LPG B4184S9 03.1999 - 12.2004
VOLVO S40 I (644) 1.9 T4 B4194T 05.1997 - 07.2000
VOLVO V40 Estate (645) 1.9 T4 B4194T 05.1997 - 07.2000
VOLVO S40 I (644) 1.9 T4 B4194T2 05.1997 - 07.2000
VOLVO V40 Estate (645) 1.9 T4 B4194T2 05.1997 - 07.2000
VOLVO V40 Estate (645) 2.0 B4204S 07.1995 - 08.1999
VOLVO S40 I (644) 2.0 B4204S 07.1995 - 12.2003
VOLVO S40 I (644) 2.0 B4204S 07.1995 - 08.1999
VOLVO V40 Estate (645) 2.0 B4204S 07.1995 - 06.2004
VOLVO V40 Estate (645) 2.0 B4204S2 07.1995 - 06.2004
VOLVO S40 I (644) 2.0 B4204S2 07.1995 - 12.2003
VOLVO V70 III (135) 2.0 B4204S3 10.2007 - 12.2011
VOLVO V70 I (875, 876) 2.0 B5202FS 12.1995 - 03.2000
VOLVO S70 (874) 2.0 B5202FS 01.1997 - 11.2000
VOLVO 850 (854) 2.0 B5202S 08.1994 - 12.1996
VOLVO V70 I (875, 876) 2.0 B5202S 12.1995 - 03.2000
VOLVO 850 Estate (855) 2.0 B5202S 08.1994 - 12.1996
VOLVO S70 (874) 2.0 B5202S 01.1997 - 11.2000
VOLVO V70 I (875, 876) 2.0 B5204F 12.1995 - 03.2000
VOLVO S70 (874) 2.0 B5204F 01.1997 - 11.2000
VOLVO 850 (854) 2.0 B5204FS 06.1991 - 12.1996
VOLVO 850 Estate (855) 2.0 B5204FS 02.1993 - 12.1996
VOLVO C70 I Coupe (872) 2.0 B5204T2 03.1997 - 09.2002
VOLVO S70 (874) 2.0 B5204T2 01.1997 - 11.2000
VOLVO C70 I Convertible (873) 2.0 B5204T2 03.1998 - 10.2005
VOLVO V70 I (875, 876) 2.0 B5204T2 11.1996 - 03.2000
VOLVO S70 (874) 2.0 B5204T4 01.1997 - 11.2000
VOLVO V70 I (875, 876) 2.0 B5204T4 01.1997 - 12.2000
VOLVO S80 I (184) 2.0 B5204T4 06.1998 - 07.2006
VOLVO V40 Estate (645) 2.0 T B4204T 10.1997 - 07.2000
VOLVO S40 I (644) 2.0 T B4204T 10.1997 - 12.2003
VOLVO V40 Estate (645) 2.0 T B4204T2 07.1999 - 06.2004
VOLVO S40 I (644) 2.0 T B4204T2 07.2000 - 06.2001
VOLVO V40 Estate (645) 2.0 T B4204T3 06.2001 - 06.2004
VOLVO V40 Estate (645) 2.0 T B4204T3 07.1999 - 06.2004
VOLVO S40 I (644) 2.0 T B4204T3 07.2000 - 06.2001
VOLVO S40 I (644) 2.0 T B4204T3 06.2001 - 12.2003
VOLVO S80 I (184) 2.0 T B5204T3 06.1998 - 07.2006
VOLVO C70 I Convertible (873) 2.0 T B5204T3 03.1998 - 10.2005
VOLVO C70 I Coupe (872) 2.0 T B5204T3 03.1997 - 09.2002
VOLVO C70 I Convertible (873) 2.0 T B5204T4 03.2000 - 10.2005
VOLVO C70 I Coupe (872) 2.0 T B5204T4 03.2000 - 09.2002
VOLVO V70 II (285) 2.0 T B5204T5 11.1999 - 08.2007
VOLVO S60 I (384) 2.0 T B5204T5 07.2000 - 04.2010
VOLVO S80 I (184) 2.0 T B5204T5 12.1999 - 07.2006
VOLVO V40 Estate (645) 2.0 T4 B4204T5 07.2000 - 06.2004
VOLVO S40 I (644) 2.0 T4 B4204T5 07.2000 - 12.2003
VOLVO 850 Estate (855) 2.0 Turbo B5204FT 02.1993 - 12.1996
VOLVO 850 (854) 2.0 Turbo B5204FT 08.1993 - 12.1996
VOLVO V70 I (875, 876) 2.0 Turbo B5204T 12.1995 - 03.2000
VOLVO S70 (874) 2.0 Turbo B5204T 01.1997 - 11.2000
VOLVO 850 Estate (855) 2.0 Turbo B5204T 02.1993 - 12.1996
VOLVO 850 (854) 2.0 Turbo B5204T 08.1993 - 12.1996
VOLVO 850 Estate (855) 2.0 Turbo B5204T2 09.1993 - 10.1997
VOLVO 850 (854) 2.0 Turbo B5204T2 09.1993 - 10.1996
VOLVO S70 (874) 2.0 Turbo B5204T3 01.1997 - 11.2000
VOLVO V70 I (875, 876) 2.0 Turbo B5204T3 11.1996 - 12.2000
VOLVO V70 I (875, 876) 2.0 Turbo AWD B5204T3 11.1996 - 12.2000
VOLVO S70 (874) 2.3 B5234T3 11.1996 - 11.2000
VOLVO V70 I (875, 876) 2.3 B5234T3 11.1996 - 11.2000
VOLVO S70 (874) 2.3 B5234T7 04.1999 - 09.2000
VOLVO V70 II (285) 2.3 B5234T7 10.2000 - 09.2004
VOLVO V70 I (875, 876) 2.3 AWD B5234T3 04.1997 - 09.1998
VOLVO V70 I (875, 876) 2.3 AWD B5234T7 12.1998 - 02.2000
VOLVO V70 I (875, 876) 2.3 AWD B5234T8 12.1998 - 02.2000
VOLVO V70 I (875, 876) 2.3 T AWD B5234T4 04.1997 - 03.2000
VOLVO V70 I (875, 876) 2.3 T-5 B5234T3 11.1996 - 12.2000
VOLVO V70 I (875, 876) 2.3 T-5 AWD B5234T3 01.1997 - 12.2000
VOLVO S70 (874) 2.3 T5 AWD B5234T3 11.1996 - 09.1998
VOLVO S70 (874) 2.3 Turbo B5234T4 01.1997 - 11.2000
VOLVO V70 I (875, 876) 2.3 Turbo B5234T4 12.1995 - 03.2000
VOLVO 850 Estate (855) 2.3 Turbo R B5234T5 09.1994 - 10.1997
VOLVO 850 (854) 2.3 Turbo R B5234T5 09.1994 - 10.1997
VOLVO 850 Estate (855) 2.3 Turbo R B5234T5 06.1995 - 10.1997
VOLVO 850 (854) 2.3 Turbo R B5234T5 06.1995 - 10.1996
VOLVO V70 I (875, 876) 2.4 B5244S 12.1995 - 05.2000
VOLVO S60 I (384) 2.4 B5244S 11.2000 - 04.2010
VOLVO S70 (874) 2.4 B5244S 01.1997 - 11.2000
VOLVO S80 I (184) 2.4 B5244S 01.1999 - 07.2006
VOLVO V70 II (285) 2.4 B5244S 03.2000 - 08.2007
VOLVO C70 I Coupe (872) 2.4 B5244S 05.1999 - 09.2002
VOLVO S80 I (184) 2.4 B5244S2 01.1999 - 07.2006
VOLVO S60 I (384) 2.4 B5244S2 07.2000 - 04.2010
VOLVO V70 II (285) 2.4 B5244S2 03.2000 - 08.2007
VOLVO V70 I (875, 876) 2.4 B5244S2 03.1999 - 12.2000
VOLVO S70 (874) 2.4 B5244S2 08.1999 - 11.2000
VOLVO S70 (874) 2.4 B5244SG 08.1999 - 11.2000
VOLVO V70 I (875, 876) 2.4 B5244SG2 03.1999 - 12.2000
VOLVO S60 I (384) 2.4 B5244T4 01.2005 - 10.2006
VOLVO 850 Estate (855) 2.4 B5252 08.1992 - 07.1994
VOLVO 850 (854) 2.4 B5252 06.1991 - 07.1994
VOLVO 850 Estate (855) 2.4 B5252FS 08.1994 - 12.1996
VOLVO V70 I (875, 876) 2.4 B5252FS 12.1995 - 03.2000
VOLVO S70 (874) 2.4 B5252FS 01.1997 - 11.2000
VOLVO 850 (854) 2.4 B5252FS 08.1994 - 12.1996
VOLVO V70 I (875, 876) 2.4 B5254FS 12.1995 - 05.2000
VOLVO C70 I Coupe (872) 2.4 B5254S 05.1999 - 09.2002
VOLVO S70 (874) 2.4 B5254S 06.1998 - 11.2000
VOLVO V70 I (875, 876) 2.4 B5254S 12.1995 - 05.2000
VOLVO 850 (854) 2.4 B5254S 08.1991 - 12.1996
VOLVO V70 I (875, 876) 2.4 B5254S 06.1998 - 12.1999
VOLVO 850 Estate (855) 2.4 B5254S 09.1992 - 12.1996
VOLVO C70 I Coupe (872) 2.4 B5254S 03.1999 - 09.2002
VOLVO C70 I Convertible (873) 2.4 B5254S 06.1998 - 10.2005
VOLVO S70 (874) 2.4 B5254S 01.1997 - 11.2000
VOLVO S70 (874) 2.4 AWD B5244S 04.1999 - 09.2000
VOLVO S70 (874) 2.4 AWD B5244S2 04.1999 - 09.2000
VOLVO S70 (874) 2.4 AWD B5252FS 11.1996 - 05.1999
VOLVO S70 (874) 2.4 AWD B5254S 10.1998 - 05.1999
VOLVO V70 I (875, 876) 2.4 AWD B5254S 06.1998 - 12.1999
VOLVO 850 Estate (855) 2.4 AWD B5254T 04.1996 - 10.1997
VOLVO V70 I (875, 876) 2.4 Bifuel B5244SG 08.1999 - 12.2000
VOLVO S70 (874) 2.4 Bifuel B5244SG 07.1999 - 11.2000
VOLVO S70 (874) 2.4 Bifuel GB5252S 10.1998 - 11.2000
VOLVO V70 I (875, 876) 2.4 Bifuel GB5252S 05.1998 - 12.1999
VOLVO S60 I (384) 2.4 Bifuel (CNG) B5244SG 07.2001 - 04.2010
VOLVO V70 II (285) 2.4 Bifuel (CNG) B5244SG 09.2001 - 08.2007
VOLVO S60 I (384) 2.4 Bifuel (CNG) B5244SG2 07.2001 - 04.2010
VOLVO S80 I (184) 2.4 Bifuel (CNG) B5244SG2 09.2001 - 07.2006
VOLVO V70 II (285) 2.4 Bifuel (CNG) B5244SG2 09.2001 - 08.2007
VOLVO S80 I (184) 2.4 Bifuel (LPG) B5244SG 09.2001 - 07.2006
VOLVO V70 II (285) 2.4 Bifuel (LPG) B5244SG2 09.2001 - 08.2007
VOLVO S60 I (384) 2.4 Bifuel (LPG) B5244SG2 07.2001 - 04.2010
VOLVO S70 (874) 2.4 Blu-Fuel B5244S2 07.1997 - 09.2000
VOLVO S70 (874) 2.4 Blu-Fuel B5244SG 07.1997 - 09.2000
VOLVO 850 (854) 2.4 GLE B5254T 09.1993 - 10.1997
VOLVO 850 Estate (855) 2.4 GLE B5254T 09.1993 - 10.1997
VOLVO C70 I Coupe (872) 2.4 T B5244T 03.1997 - 09.2002
VOLVO C70 I Convertible (873) 2.4 T B5244T 03.1998 - 10.2005
VOLVO S80 I (184) 2.4 T B5244T3 06.2000 - 07.2006
VOLVO S60 I (384) 2.4 T B5244T3 07.2000 - 04.2010
VOLVO V70 II (285) 2.4 T B5244T3 11.1999 - 08.2003
VOLVO C70 I Convertible (873) 2.4 T B5244T7 07.2002 - 10.2005
VOLVO C70 I Coupe (872) 2.4 T B5254T 03.1997 - 09.2002
VOLVO C70 I Convertible (873) 2.4 T B5254T 03.1998 - 10.2005
VOLVO V70 II (285) 2.4 T AWD B5244T3 09.2001 - 08.2002
VOLVO S60 I (384) 2.4 T AWD B5244T3 06.2001 - 04.2010
VOLVO XC70 I Cross Country (295) 2.4 T XC AWD B5244T3 03.2000 - 09.2002
VOLVO XC70 I Cross Country (295) 2.4 T XC AWD B5254T 11.1997 - 09.2002
VOLVO S70 (874) 2.4 T5 AWD B5254T 11.1996 - 04.1999
VOLVO S70 (874) 2.4 Turbo B5244T 01.1997 - 11.2000
VOLVO V70 I (875, 876) 2.4 Turbo B5244T 04.1996 - 12.2000
VOLVO S70 (874) 2.4 Turbo B5254T 01.1997 - 11.2000
VOLVO V70 I (875, 876) 2.4 Turbo B5254T 04.1996 - 12.2000
VOLVO V70 I (875, 876) 2.4 Turbo AWD B5244T 04.1996 - 12.2000
VOLVO V70 I (875, 876) 2.4 Turbo AWD B5244T2 03.1999 - 12.2000
VOLVO V70 I (875, 876) 2.4 Turbo AWD B5254T 04.1996 - 12.2000
VOLVO S60 I (384) 2.5 T B5254T2 01.2003 - 04.2010
VOLVO S80 I (184) 2.5 T B5254T2 03.2003 - 07.2006
VOLVO V70 II (285) 2.5 T B5254T2 07.2001 - 08.2007
VOLVO S60 I (384) 2.5 T AWD B5254T2 07.2002 - 04.2010
VOLVO XC90 I (275) 2.5 T AWD B5254T2 10.2002 - 09.2014
VOLVO S80 I (184) 2.5 T AWD B5254T2 07.2003 - 07.2006
VOLVO V70 II (285) 2.5 T AWD B5254T2 07.2002 - 08.2007
VOLVO XC70 I Cross Country (295) 2.5 T XC AWD B5254T2 09.2002 - 08.2007
VOLVO V70 II (285) R 2,5 T AWD B5254T4 03.2003 - 08.2007
VOLVO S60 I (384) R 2,5 T AWD B5254T4 01.2003 - 04.2010
VOLVO C70 I Coupe (872) T-5 B5234T3 03.1997 - 09.2002
VOLVO 850 (854) T5 B5234FT 08.1993 - 07.1996
VOLVO 850 Estate (855) T5 B5234FT 02.1993 - 12.1996
VOLVO V70 II (285) T5 B5234T3 11.1999 - 12.2004
VOLVO S60 I (384) T5 B5234T3 07.2000 - 04.2010
VOLVO C70 I Convertible (873) T5 B5234T3 03.1998 - 10.2005
VOLVO S70 (874) T5 B5234T3 01.1997 - 11.2000
VOLVO S60 I (384) T5 B5234T7 07.2000 - 09.2002
VOLVO C70 I Convertible (873) T5 B5234T9 07.2002 - 10.2005
VOLVO V70 II (285) T5 B5244T5 04.2004 - 08.2007
VOLVO S60 I (384) T5 B5244T5 04.2004 - 04.2010
VOLVO XC70 I Cross Country (295) T5 AWD B5204T3 10.1997 - 03.1999
VOLVO S80 I (184) T5 AWD B5244T3 04.2000 - 09.2003
VOLVO 850 (854) T5-R B5234T4 08.1995 - 12.1996
VOLVO 850 Estate (855) T5-R B5234T4 08.1995 - 12.1996
