Démarreur Magneti-Marelli MRS20220

Référence : S3043

Référence 0E : D6GS13

EAN : 5901259422085

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.00

Rotation du demarreur ACW

Taille A [ mm ] 76.00

Taille B [ mm ] 53.00

Nombre de dents [ qty. ] 10

Nombre de dents (s'insère dans) [ qty. ] 10

Nombre d'ouvertures dans la tete [ qty. ] 2

Nombre de trous filetes [ qty. ] 0

L.1 [ mm ] 205.00

O.1 [ mm ] 112.00

C.1 [ mm ] 12.50

C.2 [ mm ] 12.50

Références démarreurs compatibles

0001120408BOSCHListe

0001120409BOSCHListe

0986020220BOSCH

114176CARGO

DRT0220DELCO

DT1330DELCO

8EA012526-481HELLA

8EA738166-001HELLA

063521204080MAGNETI MARELLI

943213241010MAGNETI MARELLI

944280202200MAGNETI MARELLI

MRS20220MAGNETI MARELLI

M1201EPRESTOLITE

438173VALEOListe

458215VALEOListe

726086VALEO

726886VALEO

D6GS13VALEOListe

D6GS13MVALEO

02T911023MVW

02T911023MXVW

02T911023TVW

02T911023TXVW

02T911024QVW

02T911024QXVW

2T911023MVW

2T911023MXVW

2T911023TVW

2T911023TXVW

2T911024QVW

L02T911023TVW

STRW3983EFFE

ASM1307APEC

AEU1324AUTOELECTRO

STA0352RBOVEZ

CST10318CASCO

CST10318ASCASCO

CST10318ESCASCO

CST10318GSCASCO

CST10318OSCASCO

CST10318RSCASCO

CST15182CASCO

CST15182ASCASCO

CST15182ESCASCO

CST15182GSCASCO

CST15182OSCASCO

CST15182RSCASCO

3036CEVAM

221324CQ

12065EAI

STR0065ELECTROLOG

25-3294ELSTOCK

220447ERA

8020220FRIESEN

CS1324HC PARTS

42020220HERTH+BUSS

STV1324KRAUF

101324KUHNER

101324BKUHNER

101324VKUHNER

331449LOGISTIK

LRS01735LUCAS

LRS1735LUCAS

5015850MEAT & DORIA

NPANSM1307NAPA

8213301POWERMAX

88213301POWERMAX

300.566.102PSH

20401813REAL

20479281REAL

STM580ROLLCO

6010318SANDO

6015182SANDO

S12BH0247SIDAT

S12BH0247A2SIDAT

MAV123180SIOM

MAV171820SIOM

SS077SOVEREIGN

STX200279STARDAX

STX200279RSTARDAX

32735NWAI / TRANSPO

BOS0001120408WOODAUTO

STR54059WOODAUTO

VAL438173WOODAUTO

VALD6GS13MWOODAUTO



Convient pour :



AUDI A3 1.6 E-Power [CCSA] 01.2011-08.2012

AUDI A3 1.6 E-Power [CMXA] 01.2011-08.2012

AUDI A3 1.6 Sportback E-Power [CCSA] 01.2011-03.2013

AUDI A3 1.6 Sportback E-Power [CMXA] 01.2011-03.2013



SEAT Altea XL 1.6 [CCSA] 10.2006-

SEAT Altea 1.6 Multifuel [BSE] 10.2006-

SEAT Altea 1.6 Multifuel [BSF] 10.2006-

SEAT Altea 1.6 Multifuel [CCSA] 10.2006-

SEAT Leon 1.6 [BSE] 01.2005-

SEAT Leon 1.6 [BSF] 01.2005-

SEAT Leon 2.0 FSi [BLR] 01.2005-

SEAT Leon 1.6 [CHGA] 01.2009-12.2012

SEAT Leon 2.0 FSi [BLY] 01.2005-

SEAT Leon 2.0 FSi [BVY] 01.2005-

SEAT Leon 1.6 MultiFuel [CMXA] 11.2010-

SEAT Leon 2.0 FSi [BVZ] 01.2005



SKODA Octavia 1.6 [CMXA] 06.2004-

SKODA Octavia 1.6 [CMXA] 01.2008-

SKODA Octavia 1.6 LPG [CHGA] 08.2009-

SKODA Octavia 1.6 [BGU] 06.2004-

SKODA Octavia 1.6 [BSE] 06.2004-

SKODA Octavia 1.6 [BSF] 06.2004-

SKODA Octavia 1.6 [CCSA] 06.2004-

SKODA Octavia 1.6 [CCSA] 01.2008



VW Golf VI 1.6 [BSE] 10.2008-11.2012

VW Golf VI 1.6 [BSF] 10.2008-11.2012

VW Golf Plus 1.6 [BSE] 05.2005-

VW Golf VI 1.6 [CCSA] 10.2008-11.2012

VW Golf V 1.6 Multijet [CCSA] 10.2007-

VW Golf Plus 1.6 [BSF] 05.2005-

VW Golf VI 1.6 [CMXA] 10.2008-11.2012

VW Golf VI 1.6 [CMXA] 07.2009-07.2013

VW Golf VI 1.6 Multijet [CMXA] 07.2009-07.2013

VW Golf VI 1.6 Multijet [CMXA] 05.2010-11.2012

VW Golf Plus 1.6 [CCSA] 11.2007-

VW Golf Plus 1.6 [CMXA] 05.2005-

VW Golf Plus 1.6 BiFuel [CHGA] 05.2009-

VW Jetta 1.6 [BSE] 10.2005-

VW Jetta 1.6 [BSF] 10.2005-

VW Golf Plus 1.6 Multifuel [CCSA] 11.2007-

VW Golf Plus 1.6 Multifuel [CMXA] 11.2007-

VW Jetta 1.6 [CCSA] 10.2005-

VW Golf V 1.6 [BGU] 06.2007-07.2009

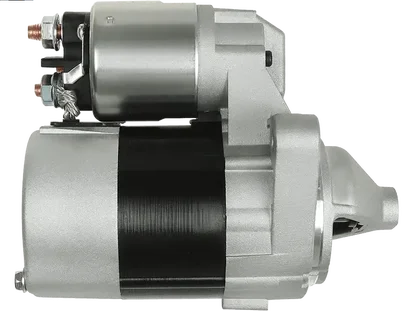

Démarreur Magneti-Marelli 943212261010

Référence : S3036

Référence 0E : D7E31

EAN : 5901259422016

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 0.70

Rotation du demarreur CW

Taille A [ mm ] 70.00

Taille B [ mm ] 11.00

Nombre de dents [ qty. ] 8

Nombre de dents (s'insère dans) [ qty. ] 8

Nombre d'ouvertures dans la tete [ qty. ] 2

Nombre de trous filetes [ qty. ] 1

L.1 [ mm ] 169.00

O.1 [ mm ] 106.00

C.1 [ mm ] 10.50

C.2 [ mm ] M10x1.5

Références démarreurs compatibles

0001116006BOSCHListe

0986018630BOSCH

BX1863BOSCH

113267CARGO

DRS8630DELCO

RAS39741DELCO

8EA011-610-692HELLA

8EA737943-001HELLA

943212261010MAGNETI MARELLI

944280186300MAGNETI MARELLI

23300-9F600NISSAN

23300-9F660NISSAN

23300-9F661NISSAN

23300-9F662NISSAN

23300-9F664NISSAN

23300-9F66ANISSAN

23300-9F66BNISSAN

23300-9F6RBNISSAN

233009F661EXNISSAN

B33009F66BNISSAN

190679VALEO

191749VALEO

192814VALEO

201105VALEO

438137VALEOListe

458159VALEOListe

600042VALEO

602023VALEO

726063VALEO

726863VALEO

D7E31VALEOListe

D7E41VALEOListe

S0001250274VALEO

TS8E4VALEOListe

PRSS0683EFFE

STR10193EFFE

STR21203EFFE

STRS0683EFFE

ANM10850XANDEL

ASM1068APEC

003-D978ASHIKA

STA0359RBOVEZ

CST45102ASCASCO

CST45102GSCASCO

9524CEVAM

11904EAI

STR00199ELECTROLOG

25-3061ELSTOCK

220154ERA

JS1226HC PARTS

J5211084HERTH+BUSS

MTD978JAPANPARTS

3D978JAPKO

STV1226KRAUF

201226KUHNER

201226VKUHNER

336076LOGISTIK

LRT00206LUCAS

LRT206LUCAS

5015210MEAT & DORIA

NPANSM1068NAPA

88212667POWERMAX

160.543.082.000PSH

160.543.082.360PSH

160.543.082.505PSH

20417201BNREAL

20417201OEREAL

STM1109ROLLCO

6045102.0SANDO

6045102.1SANDO

S12VA0773SIDAT

S12VA0773A2SIDAT

MAV471020SIOM

STX200080STARDAX

STX200080RSTARDAX

31206NWAI / TRANSPO



Convient pour :



NISSAN Almera 1.5 [QG15DE] 03.2000-11.2006

NISSAN Almera 1.5 [QG15DE] 07.2000-11.2006

NISSAN Almera 1.5 [QG15DE] 10.2002-09.2006

NISSAN Almera 1.8 [QG18DE] 01.2000-11.2002

NISSAN Almera 1.8 [QG18DE] 07.2000-11.2002

NISSAN Almera 1.8 [QG18DE] 10.2002-09.2006

NISSAN Almera Tino 1.8 [QG18DE] 08.2000-02.2006

NISSAN Almera Tino 1.8 [QG18DE] 12.2002-02.2006

NISSAN Primera 1.6 [QG16DE] 01.2002-04.2006

NISSAN Almera Tino 2.0 [SR20DE] 08.2000-01.2003

NISSAN Primera 1.6 [QG16DE] 01.2002-04.2006

NISSAN Almera Tino 2.0 [SR20DE] 08.2000-01.2003

NISSAN Primera 1.6 [QG16DE] 03.2002-08.2008

NISSAN Primera 1.6 [QG16DE] 07.2002-04.2006

NISSAN Primera 1.6 16V [QG16DE] 06.1996-12.2001

NISSAN Primera 1.6 16V [QG16DE] 09.2000-07.2002

NISSAN Primera 1.8 [QG18DE] 03.2002-10.2008

NISSAN Primera 1.8 [QG18DE] 03.2002-05.2007

NISSAN Primera 1.8 [QG18DE] 07.2002-10.2008

NISSAN Primera 1.8 16V [QG18DE] 08.1999-12.2001

NISSAN Primera 1.8 16V [QG18DE] 08.1999-07.2002

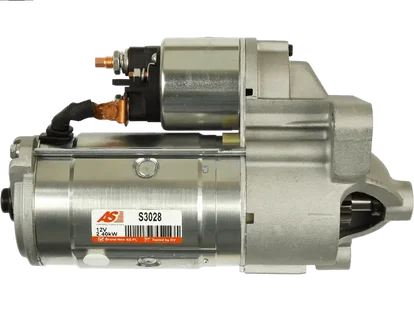

Démarreur Magneti-Marelli MRS80211

Référence : S3028

Référence 0E : D8R1

EAN : 5901259421927

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 2.40

Rotation du demarreur CW

Taille B [ mm ] -6.00

Nombre de dents [ qty. ] 10

Nombre de dents (s'insère dans) [ qty. ] 10

Nombre d'ouvertures dans la tete [ qty. ] 4

Nombre de trous filetes [ qty. ] 3

L.1 [ mm ] 239.00

O.1 [ mm ] 28.00

O.2 [ mm ] 62.00

O.3 [ mm ] 126.50

O.4 [ mm ] 78.50

C.1 [ mm ] M10x1.5

C.2 [ mm ] M8x1.25

C.3 [ mm ] M10x1.5

C.4 [ mm ] 11.50



Références démarreurs compatibles

0986024220BOSCH

114161CARGO

DRS0093DELCO

DS1203DELCO

8EA012528-091HELLA

8EA738127-001HELLA

944280802110MAGNETI MARELLI

MRS80211MAGNETI MARELLI

7711135502RENAULT

8200237594RENAULT

8200634604RENAULT

438162VALEOListe

458178VALEOListe

726144VALEO

D8R1VALEOListe

D8R1BVALEO

D8R1CVALEO

STRW4483EFFE

ANM12313XANDEL

AEU1288AUTOELECTRO

CST15173CASCO

CST15173ASCASCO

CST15173ESCASCO

CST15173GSCASCO

CST15173OSCASCO

CST15173RSCASCO

3011CEVAM

11926EAI

STR00124ELECTROLOG

25-3297ELSTOCK

220444ERA

CS1288HC PARTS

42458178HERTH+BUSS

STV1288KRAUF

101288KUHNER

101288VKUHNER

LRS01738LUCAS

LRS1738LUCAS

88212678POWERMAX

570.550.104PSH

20479371REAL

STM1162ROLLCO

6015173SANDO

S12VA0281A2SIDAT

MAV171730SIOM

SS451SOVEREIGN

STX200576STARDAX

STX200576RSTARDAX

32738NWAI / TRANSPO

STR54101WOODAUTO

VAL438162WOODAUTO



Convient pour :



RENAULT Vel Satis 2.2 DCi [G9T600] 04.2004-

RENAULT Vel Satis 2.2 DCi [G9T600] 09.2004-

RENAULT Vel Satis 2.2 DCi [G9T600] 12.2004-

RENAULT Vel Satis 2.2 DCi [G9T606] 09.2004-

RENAULT Vel Satis 2.2 DCi [G9T606] 09.2005-12.2010

RENAULT Vel Satis 2.2 DCi [G9T607] 09.2004-

RENAULT Vel Satis 2.2 DCi [G9T700] 09.2004-

RENAULT Vel Satis 2.2 DCi [G9T702] 09.2004

RENAULT Laguna 2.2 DCi [G9T600] 04.2004-10.2005

RENAULT Laguna 2.2 DCi [G9T600] 05.2005-

RENAULT Laguna 2.2 DCi [G9T605] 05.2005-

RENAULT Laguna 2.2 DCi [G9T700] 10.2001-

RENAULT Laguna 2.2 DCi [G9T702] 10.2001-

RENAULT Laguna 2.2 DCi [G9T706] 05.2005-

RENAULT Laguna 2.2 DCi [G9T707] 05.2005-

RENAULT Espace 2.2 DCi [G9T645]02.2006-

RENAULT Espace 2.2 DCi [G9T742] 11.2002-

RENAULT Espace 2.2 DCi [G9T743] 11.2002-

Démarreur Magneti-Marelli 943213421010

Référence : S3027

Référence 0E : D8R27

EAN : 5901259421910

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.90

Rotation du demarreur CW

Taille B [ mm ] -5.00

Nombre de dents [ qty. ] 11

Nombre de dents (s'insère dans) [ qty. ] 10. 11. 12

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 3

L.1 [ mm ] 238.00

O.1 [ mm ] 120.00

O.2 [ mm ] 85.00

O.3 [ mm ] 85.00

C.1 [ mm ] M10x1.5

C.2 [ mm ] M10x1.5

C.3 [ mm ] M10x1.5

Références démarreurs compatibles

0986025470BOSCH

1986S10069BOSCH

113926CARGO

DRS0567DELCO

DRS3949DELCO

DS1677DELCO

DS5059DELCO

RAS34050DELCO

RAS34226DELCO

428000-1620DENSOListe

71722353FIAT

71722354FIAT

71724273FIAT

71786189FIAT

9635659780FIAT

9647157980FIAT

964715980FIAT

K9647157980FIAT

8EA011610-281HELLA

8EA738251-001HELLA

063280090010MAGNETI MARELLI

943213421010MAGNETI MARELLI

MSRC1342MAGNETI MARELLI

1638116180OPEL

5802-EAPEUGEOT

5802-W7PEUGEOT

5802-X9PEUGEOT

5802-Y0PEUGEOT

5802EAPEUGEOT

5802EFPEUGEOT

5802W7PEUGEOT

5802X9PEUGEOT

5802Y0PEUGEOT

5802Z5PEUGEOT

5802Z6PEUGEOT

5802Z7PEUGEOT

9555507680PEUGEOT

9646972280PEUGEOT

9648242180PEUGEOT

9655507680PEUGEOT

SU0001-A2692TOYOTA

SU001A2692TOYOTA

190700VALEO

201089VALEO

438165VALEOListe

438193VALEOListe

458180VALEOListe

458249VALEOListe

D7R9VALEOListe

D8R27VALEOListe

D8R29VALEOListe

PRSL0633EFFE

STRL0633EFFE

ASM1519APEC

AEY2338AUTOELECTRO

STA0345RBOVEZ

CST15207ASCASCO

CST15207GSCASCO

CST15207RSCASCO

11959EAI

STR00125ELECTROLOG

STR00127ELECTROLOG

25-4010ELSTOCK

220393ERA

220393AERA

8018970FRIESEN

SG0415GHIBAUDI

GS438165V-CXGPARTS

GS438165V-RGPARTS

GS438193-NGPARTS

SS438165V-RGPARTS

CS1342HC PARTS

42018970HERTH+BUSS

STV1342KRAUF

101342KUHNER

101342RKUHNER

101342VKUHNER

331890LOGISTIK

LRS02338LUCAS

LRS2338LUCAS

5015837MEAT & DORIA

NPANSM1519NAPA

88213251POWERMAX

220.529.113.000PSH

220.529.113.008PSH

220.529.113.500PSH

220.529.113.505PSH

20479702BNREAL

20479702OEREAL

20479702RCREAL

STM1185ROLLCO

6015207.0SANDO

6015207.1SANDO

6015207.2SANDO

S12VA0035A2SIDAT

MAV172070SIOM

STX200017STARDAX

STX200017RSTARDAX

STX200036STARDAX

STX200036RSTARDAX

STX200076STARDAX

STX200076/PRZETSTARDAX

STX200076RSTARDAX

STX200193STARDAX

STX200193RSTARDAX

STX200452STARDAX

33016NWAI / TRANSPO

33313N-OEWAI / TRANSPO

STR54181WOODAUTO

VAL438165WOODAUTO



Convient pour :



CITROEN C4 Picasso 1.6 HDi 110 [9HR(DV6C)] 09.2010-08.2013

CITROEN C5 2.0 HDi [RHZ(DW10ATED)] 03.2001-08.2004

CITROEN DS4 2.0 HDi 135 [AHS(DW10FD)] 09.2011-07.2015

CITROEN C5 2.0 HDi [RHZ(DW10ATED)] 06.2001-08.2004

CITROEN DS4 2.0 HDi 135 [AHV(DW10FD)] 09.2011-07.2015

CITROEN DS4 2.0 HDi 135 [RHD(DW10CB)] 09.2011-07.2015

CITROEN C5 2.0 HDi 140 [RHA(DW10CTED4)] 11.2008-

CITROEN C5 2.0 HDi 140 [RHA(DW10CTED4)] 04.2009-

CITROEN C5 2.0 HDi 140 [RHF(DW10BTED4)] 11.2008-

CITROEN DS4 2.0 HDi 135 [RHD(DW10CTED4)] 09.2011-07.2015

CITROEN C5 2.0 HDi 140 [RHF(DW10BTED4)] 04.2009-

CITROEN C5 2.0 HDi 150 [AHR(DW10FD)] 04.2009-02.2015

CITROEN C8 2.0 HDi [RHK(DW10UTED4)] 07.2006-

CITROEN Jumper 2.8 HDi [8140.43S] 09.2000-04.2002

CITROEN C5 2.0 HDi 150 [RHE(DW10CTED4)] 04.2009-02.2015

CITROEN DS4 2.0 HDi 165 [RHH(DW10CTED4)] 04.2011-07.2015

CITROEN C4 2.0 BlueHDi 150 [AHR(DW10FD)] 11.2009-

CITROEN C4 2.0 BlueHDi 150 [RHE(DW10CTED4)] 11.2009-

CITROEN C5 2.0 HDi 165 [RHH(DW10CTED4)] 04.2009-

CITROEN C4 2.0 HDi [AHR(DW10FD)] 11.2009-

CITROEN C5 2.0 HDi 165 [RHH(DW10CTED4)] 04.2009-

CITROEN C8 2.0 HDi [RHM(DW10ATED4)] 07.2002-

CITROEN Jumper 2.0 BlueHDi 110 [AHM(DW10FUE)] 07.2015-09.2019

CITROEN Jumpy 2.0 HDi 120 [RHK(DW10UTED4)] 01.2007-03.2016

CITROEN Jumper 2.0 BlueHDi 110 [AHM(DW10FUE)] 11.2015-09.2019

CITROEN C4 2.0 HDi [RHE(DW10CTED4)] 11.2009-

CITROEN Jumpy 2.0 HDi 125 [AHZ(DW10CD)] 07.2011-03.2016

CITROEN C4 Grand Picasso 1.6 HDi 110 [9HR(DV6C)] 09.2010-08.2013

CITROEN Jumper 2.0 BlueHDi 130 [AHN(DW10FUD)] 07.2015-09.2019

CITROEN Jumpy 2.0 HDi 125 [AHZ(DW10CD)] 07.2011-

CITROEN C4 2.0 HDi [RHF(DW10BTED4)] 07.2008-07.2011

CITROEN Jumper 2.0 BlueHDi 130 [AHN(DW10FUD)] 11.2015-09.2019

CITROEN Jumpy 2.0 HDi 125 4x4 [AHZ(DW10CD)] 07.2011-03.2016

CITROEN Jumpy 2.0 HDi 140 [RHR(DW10BTED4)] 01.2007-03.2016

CITROEN Jumpy 2.0 HDi 165 [RHH(DW10CTED4)] 07.2010-03.2016

CITROEN Jumper 2.0 BlueHDi 160 [AHP(DW10FUC)] 07.2015-09.2019

CITROEN Jumpy 2.0 HDi 95 [AHY(DW10CE)] 07.2011-03.2016

CITROEN SpaceTourer 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2016-

CITROEN Grand C4 SpaceTourer 2.0 BlueHDi 150 [AHR(DW10FD)] 04.2018-

CITROEN Grand C4 SpaceTourer 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2018-

CITROEN C4 2.0 HDi [RHR(DW10BTED4)] 11.2004-07.2011

CITROEN C4 2.0 HDi [RHR(DW10BTED4)] 11.2004-12.2010

CITROEN C5 2.0 BlueHDi 150 [AHR(DW10FD)] 04.2009-02.2015

CITROEN C8 2.0 HDi [RHT(DW10ATED4)] 07.2002-

CITROEN C4 Picasso 2.0 BlueHDi 135 [AHV(DW10FD)] 09.2013-

CITROEN C8 2.0 HDi [RHT(DW10ATED4)] 07.2002-

CITROEN C4 Picasso 2.0 BlueHDi 135 [RHD(DW10CB)] 09.2013-

CITROEN C4 Picasso 2.0 BlueHDi 150 [AHE(DW10FD)] 09.2013-

CITROEN C4 Picasso 2.0 BlueHDi 150 [AHR(DW10FD)] 09.2013-

CITROEN C4 Picasso 2.0 BlueHDi 150 [AHX(DW10FD)] 09.2013-

CITROEN C5 2.0 BlueHDi 150 [RHE(DW10CTED4)] 04.2009-02.2015

CITROEN DS5 2.0 BlueHDi 150 [AHX(DW10FD)] 07.2014-07.2015

CITROEN C5 2.0 HDi [RHD(DW10CTED4)] 02.2008-

CITROEN C5 2.0 HDi [RHD(DW10CTED4)] 02.2008-

CITROEN Jumpy 2.0 BlueHDi 120 [AHK(DW10FE)] 04.2016-

CITROEN Jumpy 2.0 BlueHDi 120 [AHK(DW10FE)] 09.2016-

CITROEN C4 Picasso 2.0 HDi 138 [RHJ(DW10BTED4)] 10.2006-08.2013

CITROEN Jumpy 2.0 BlueHDi 145 [EHS(DW10FDDU370)] 08.2021-

CITROEN C4 Picasso 2.0 HDi 138 [RHR(DW10BTED4)] 10.2006-08.2013

CITROEN Jumpy 2.0 BlueHDi 145 [EHT(DW10FDDU340)] 08.2021

CITROEN C4 Picasso 2.0 HDi 150 [RHE(DW10CTED4)] 07.2009-08.2013

CITROEN C5 2.2 HDi [4HT(DW12BTED4)] 04.2006-08.2008

CITROEN C8 2.0 HDi [RHW(DW10ATED4)] 07.2002-

CITROEN C5 2.0 HDi [RHF(DW10BTED4)] 02.2008-

CITROEN Jumpy 2.0 i [RFH(EW10A)] 01.2007-03.2016

CITROEN C4 Grand Picasso 2.0 BlueHDi 135 [AHV(DW10FD)] 09.2013-

CITROEN C4 Grand Picasso 2.0 BlueHDi 135 [RHD(DW10CB)] 09.2013-

CITROEN C8 2.0 HDi 135 [RHD(DW10CB)] 03.2006-

CITROEN Jumpy 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2016-

CITROEN Jumpy 2.0 i [RFJ(EW10A)] 01.2007-03.2016

CITROEN C4 Grand Picasso 2.0 BlueHDi 150 [AHR(DW10FD)] 06.2013-

CITROEN C8 2.0 HDi 135 [RHD(DW10CTED4)] 03.2006-

CITROEN Jumpy 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2016-

CITROEN C4 Grand Picasso 2.0 BlueHDi 150 [AHX(DW10FD)] 06.2013-

CITROEN C8 2.0 HDi 135 [RHR(DW10BTED4)] 03.2006-

CITROEN DS5 2.0 HDi 135 [RHD(DW10CB)] 11.2011-07.2015

CITROEN C8 2.0 HDi 165 [RHH(DW10CTED4)] 03.2006-

CITROEN DS5 2.0 HDi 165 [RHH(DW10CTED4)] 11.2011-07.2015

CITROEN DS5 2.0 HDi 200 Hybrid4 12.2011-07.2015

CITROEN C4 Grand Picasso 2.0 HDi 138 [RHJ(DW10BTED4)] 10.2006-12.2013

CITROEN C5 2.2 HDi [4HX(DW12TED4)] 03.2001-08.2004

CITROEN C4 Grand Picasso 2.0 HDi 138 [RHR(DW10BTED4)] 10.2006-12.2013

CITROEN C5 2.0 HDi [RHR(DW10BTED4)] 09.2004-01.2008

CITROEN Jumper 2.2 HDi [4HY(DW12UTED)] 04.2002-06.2006

CITROEN C4 Grand Picasso 2.0 HDi 150 [RHE(DW10CTED4)] 07.2009-08.2013

CITROEN C5 2.0 HDi [RHR(DW10BTED4)] 09.2004-

CITROEN C8 2.2 HDi [4HW(DW12TED4)] 07.2002-

CITROEN C5 2.2 HDi [4HX(DW12TED4)] 06.2001-08.2004

CITROEN C5 2.0 HDi [RHR(DW10BTED4)] 02.2008-

CITROEN C5 2.0 HDi [RHR(DW10BTED4)] 02.2008-

CITROEN Jumpy 1.6 HDi 90 16V [9HU(DV6UTED4)] 01.2007-03.2016

CITROEN C5 2.2 HDi [4HX(DW12TED4)] 09.2004-08.2008

CITROEN C5 2.2 HDi [4HX(DW12TED4)] 09.2004-

CITROEN C5 2.0 HDi [RHS(DW10ATED)] 06.2001-08.2004

CITROEN C4 SpaceTourer 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2018

CITROEN C5 2.7 HDi [UHZ(DT17TED4)] 02.2008-

CITROEN C5 2.0 HDi [RHY(DW10TD)] 03.2001-08.2004

CITROEN C5 2.7 HDi [UHZ(DT17TED4)] 02.2008-

CITROEN C5 3.0 HDi 240 [DT20C] 04.2009-10.2014

CITROEN DS4 2.0 BlueHDi 135 [AHS(DW10FD)] 09.2011-07.2015

CITROEN DS4 2.0 BlueHDi 135 [AHV(DW10FD)] 09.2011-07.2015

CITROEN DS4 2.0 BlueHDi 135 [RHD(DW10CB)] 09.2011-07.2015

CITROEN DS4 2.0 BlueHDi 135 [RHD(DW10CTED4)] 09.2011-07.2015

CITROEN DS4 2.0 BlueHDi 150 [AHX(DW10FD)] 07.2014-07.2015

CITROEN C5 2.0 HDi [RHY(DW10TD)] 06.2001-08.2004

CITROEN DS4 2.0 BlueHDi 180 [AHW(DW10FC)] 07.2014-07.2015

CITROEN Xsara 2.0 HDi 90 [RHY(DW10TD)] 02.1999-03.2005



DS DS 4 Crossback 2.0 BlueHDi 150 [AHR(DW10FD)] 07.2015-12.2018

DS DS 4 Crossback 2.0 BlueHDi 180 [AHW(DW10FC)] 07.2015-12.2018

DS DS 5 2.0 BlueHDi 135 [AHV(DW10FDD)] 06.2015-12.2018

DS DS 5 2.0 BlueHDi 150 [AHR(DW10FD)] 04.2015-12.2018



FIAT Ulysse 2.2 D Multijet [4HS(DW12BTED4)] 03.2008-06.2011

FIAT Ulysse 2.2 D Multijet [4HT(DW12BTED4)] 03.2008-06.2011

FIAT Ulysse 2.2 JTD [4HW(DW12ATED4)] 08.2002-08.2006

FIAT Ulysse 2.0 D Multijet [RHK] 05.2006-06.2011

FIAT Ulysse 2.0 D Multijet [RHR] 05.2006-06.2011

FIAT Ulysse 2.0 JTD [RHM(DW10ATED4)] 05.2003-08.2006

FIAT Ulysse 2.0 JTD [RHW(DW10ATED4)] 08.2002-08.2006

FIAT Scudo 2.0 D Multijet [RH02] 07.2010-03.2016

FIAT Scudo 2.0 D Multijet [RH02] 04.2011-03.2016

FIAT Scudo 2.0 D Multijet [RH02] 05.2011-03.2016

FIAT Scudo 2.0 D Multijet [RHH] 07.2010-03.2016

FIAT Ulysse 2.0 JTD 16V [RHW(DW10ATED4)] 05.1999-08.2002



LANCIA Phedra 2.0 JTD [RHW(DW10ATED4)] 09.2002-11.2010

LANCIA Phedra 2.2 D Multijet [4HS] 03.2008-11.2010

LANCIA Phedra 2.2 D Multijet [4HT] 03.2008-11.2010

LANCIA Phedra 2.2 JTD [4HW(DW12ATED4)] 09.2002-11.2010

LANCIA Phedra 2.0 D Multijet [RHR(DW10BTED4)] 07.2006-11.2010

LANCIA Phedra 2.0 JTD [RHK(DW10UTED4)] 06.2006-11.2010

LANCIA Phedra 2.0 JTD [RHM(DW10ATED4)] 07.2003-11.2010



PEUGEOT 807 2.0 HDi [RHT(DW10ATED4)] 06.2002-05.2006

PEUGEOT 308 2.0 HDi [RHR(DW10BTED4)] 04.2009-12.2014

PEUGEOT Expert 2.0 HDi 100 03.2011-

PEUGEOT Expert 2.0 HDi 120 [RHK(DW10UTED4)] 01.2007-

PEUGEOT Expert 2.0 HDi 120 [RHK(DW10UTED4)] 01.2007-

PEUGEOT 406 2.2 HDi [4HX(DW12TED4)] 03.2000-05.2004

PEUGEOT 406 2.2 HDi [4HX(DW12TED4)] 03.2000-10.2004

PEUGEOT Expert 2.0 HDi 130 [AHZ(DW10CD)] 03.2011-

PEUGEOT 406 2.2 HDi [4HX(DW12TED4)] 03.2000-12.2004

PEUGEOT 807 2.0 HDi [RHW(DW10ATED4)] 06.2002-05.2006

PEUGEOT Expert 2.0 HDi 130 [AHZ(DW10CD)] 03.2011-

PEUGEOT Expert 2.0 HDi 140 [RHR(DW10BTED4)] 01.2007-

PEUGEOT Expert 2.0 HDi 140 [RHR(DW10BTED4)] 01.2007-

PEUGEOT Expert 2.0 HDi 165 [RHH(DW10CTED4)] 09.2009-

PEUGEOT Expert 2.0 HDi 165 [RHH(DW10CTED4)] 09.2009-

PEUGEOT 807 2.0 HDi [RHW(DW10ATED4)] 04.2004-

PEUGEOT Boxer 2.0 BlueHDi 110 [AHM(DW10FUE)] 07.2015-09.2019

PEUGEOT Expert Tepee 2.0 HDi 100 [AHY(DW10CE)] 03.2011-03.2016

PEUGEOT Expert Tepee 2.0 HDi 120 [RHK(DW10UTED4)] 01.2007-03.2016

PEUGEOT 807 2.2 HDi [4HP(DW12BTED4)] 06.2006-

PEUGEOT Boxer 2.0 BlueHDi 130 [AHN(DW10FUD)] 07.2015-09.2019

PEUGEOT 807 2.2 HDi [4HR(DW12BTED4)] 06.2006-

PEUGEOT Expert Tepee 2.0 HDi 130 [AHZ(DW10CD)] 03.2011-

PEUGEOT Expert Tepee 2.0 HDi 140 [RHR(DW10BTED4)] 01.2007-

PEUGEOT 807 2.2 HDi [4HW(DW12TED4)] 06.2002-

PEUGEOT Boxer 2.0 BlueHDi 160 [AHP(DW10FUC)] 07.2015-09.2019

PEUGEOT Expert Tepee 2.0 HDi 165 [RHH(DW10CTED4)] 09.2009-

PEUGEOT 508 1.6 HDi [9HD(DV6CTED)] 02.2012-12.2018

PEUGEOT 508 1.6 HDi [9HL(DV6C)] 02.2012-12.2018

PEUGEOT 508 1.6 HDi [9HR(DV6C)] 02.2012-12.2018

PEUGEOT Expert 2.0 BlueHDi 120 [AHK(DW10FE)] 04.2016-

PEUGEOT Expert 2.0 BlueHDi 145 [EHS(DW10FDDU370)] 08.2021-

PEUGEOT Expert 2.0 BlueHDi 145 [EHT(DW10FDDU340)] 08.2021-

PEUGEOT Expert 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2016-

PEUGEOT Expert 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2016-

PEUGEOT RCZ 2.0 HDi [RHH(DW10CTED4)] 03.2010-12.2015

PEUGEOT 508 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2014-12.2018 ST

PEUGEOT 508 2.0 HDi [AHS(DW10FD)] 11.2010-12.2018 ST

PEUGEOT 406 2.0 HDi 110 [RHS(DW10ATED)] 08.2001-05.2004

PEUGEOT 508 2.0 HDi [AHS(DW10FD)] 11.2010-12.2018

PEUGEOT 406 2.0 HDi 110 [RHS(DW10ATED)] 08.2001-10.2004

PEUGEOT 508 2.0 HDi [AHV(DW10FD)] 11.2010-12.2018 ST

PEUGEOT 508 2.0 HDi [AHV(DW10FD)] 11.2010-12.2018

PEUGEOT 508 2.0 HDi [AHX(DW10FD)] 11.2010-12.2018 ST

PEUGEOT 508 2.0 HDi [AHX(DW10FD)] 11.2010-12.2018

PEUGEOT 508 2.0 HDi [RHA(DW10CTED4)] 11.2010-12.2018

PEUGEOT 406 2.0 HDi 110 [RHZ(DW10ATED)] 02.1999-04.2004

PEUGEOT 406 2.0 HDi 110 [RHZ(DW10ATED)] 08.2001-05.2004

PEUGEOT 508 2.0 HDi [RHF(DW10BTED4)] 11.2010-12.2018

PEUGEOT 406 2.0 HDi 110 [RHZ(DW10ATED)] 08.2001-10.2004

PEUGEOT 607 2.0 HDi [RHR(DW10BTED4)] 09.2005-07.2011

PEUGEOT Boxer 2.2 HDi [4HY(DW12UTED)] 12.2001-06.2006

PEUGEOT 5008 2.0 BlueHDi 136 [AHS(DW10FD)] 12.2016-

PEUGEOT 607 2.0 HDi [RHS(DW10ATED)] 03.2001-09.2004

PEUGEOT 406 2.0 HDi 90 [RHY(DW10TD)] 02.1999-05.2004

PEUGEOT 5008 2.0 BlueHDi 136 [AHV(DW10FD)] 02.2012-03.2017

PEUGEOT 406 2.0 HDi 90 [RHY(DW10TD)] 02.1999-10.2004

PEUGEOT 5008 2.0 BlueHDi 136 [AHV(DW10FD)] 12.2016-

PEUGEOT 508 2.0 HDi [RHH(DW10CTED4)] 11.2010-12.2018

PEUGEOT 307 2.0 HDi 135 [RHR(DW10BTED4)] 10.2003-11.2007

PEUGEOT 407 2.0 HDi [RHH(DW10CTED4)] 06.2009-12.2010

PEUGEOT 5008 2.0 BlueHDi 136 [RHD(DW10CB)] 02.2012-03.2017

PEUGEOT 5008 2.0 BlueHDi 136 [RHD(DW10CTED4)] 02.2012-03.2017

PEUGEOT 508 2.0 HDi [RHR(DW10BTED4)] 11.2010-12.2018 ST

PEUGEOT 3008 2.0 BlueHDi 136 [AHV(DW10FD)] 11.2016-

PEUGEOT 5008 2.0 BlueHDi 150 [AHX(DW10FD)] 12.2016-

PEUGEOT 508 2.0 HDi [RHR(DW10BTED4)] 11.2010-12.2018

PEUGEOT 607 2.0 HDi [RHZ(DW10ATED)] 05.2000-09.2005

PEUGEOT 807 2.0 HDi [RHH(DW10CTED4)] 06.2009-

PEUGEOT 3008 2.0 BlueHDi 150 [AHR(DW10FD)] 05.2016-09.2020

PEUGEOT 307 2.0 HDi 135 [RHR(DW10BTED4)] 02.2004-04.2008

PEUGEOT 3008 2.0 BlueHDi 150 [AHS(DW10FD)] 05.2016-09.2020

PEUGEOT 3008 2.0 BlueHDi 150 [AHX(DW10FD)] 06.2009-08.2016

PEUGEOT 5008 2.0 HDi 136 [AHV(DW10FD)] 02.2012-03.2017

PEUGEOT 3008 2.0 BlueHDi 150 [AHX(DW10FD)] 05.2016-09.2020

PEUGEOT 307 2.0 HDi 135 [RHR(DW10BTED4)] 06.2005-04.2009

PEUGEOT 5008 2.0 HDi 136 [RHD(DW10CB)] 02.2012-03.2017

PEUGEOT 3008 2.0 BlueHDi 150 [RHE(DW10CTED4)] 06.2009-08.2016

PEUGEOT 5008 2.0 HDi 136 [RHD(DW10CTED4)] 02.2012-03.2017

PEUGEOT 3008 2.0 HDi [RHD(DW10CB)] 09.2011-08.2016 ST

PEUGEOT 5008 2.0 HDi 150 [AHX(DW10FD)] 06.2009-03.2017

PEUGEOT 5008 2.0 HDi 150 [RHE(DW10CTED4)] 06.2009-03.2017

PEUGEOT 807 2.0 HDi [RHK(DW10UTED4)] 02.2006-

PEUGEOT 5008 2.0 HDi BlueHDi 150 [AHX(DW10FD)] 06.2009-03.2017

PEUGEOT 3008 2.0 HDi [RHH(DW10CTED4)] 06.2009-08.2016

PEUGEOT 407 2.0 HDi [RHR(DW10BTED4)] 10.2005-

PEUGEOT 5008 2.0 HDi BlueHDi 150 [RHE(DW10CTED4)] 06.2009-03.2017

PEUGEOT 3008 2.0 HDi 150 [AHX(DW10FD)] 06.2009-08.2016

PEUGEOT 3008 2.0 HDi 150 [RHE(DW10CTED4)] 06.2009-08.2016

PEUGEOT 407 2.0 HDi [RHR(DW10BTED4)] 08.2008-12.2010

PEUGEOT 508 2.0 HDi RXH Hybrid4 [RHC(DW10CTED4)] 11.2010-12.2018

PEUGEOT 3008 2.0 HDi Hybrid4 [RHC(DW10CTED4)] 02.2011-08.2016

PEUGEOT 308 2.0 BlueHDi 150 [AHX(DW10FCD)] 11.2013-06.2021

PEUGEOT 308 2.0 BlueHDi 150 [AHX(DW10FCD)] 03.2014-06.2021

PEUGEOT 807 2.0 HDi [RHM(DW10ATED4)] 06.2002-05.2006

PEUGEOT 308 2.0 BlueHDi 150 [AHX(DW10FD)] 11.2013-06.2021

PEUGEOT 607 2.2 HDi [4HT(DW12BTED4)] 05.2006-06.2010

PEUGEOT 607 2.2 HDi [4HX(DW12TED4)] 02.2000-02.2006

PEUGEOT 407 2.0 HDi [RHR(DW10BTED4)] 06.2009-12.2010

PEUGEOT 807 2.0 HDi [RHR(DW10BTED4)] 06.2006-

PEUGEOT 407 2.0 HDi 135 [RHR(DW10BTED4)] 05.2004-10.2010

PEUGEOT 308 2.0 HDi [RHE(DW10CTED4)] 04.2011-10.2014

PEUGEOT 407 2.0 HDi 135 [RHR(DW10BTED4)] 07.2004-12.2010

PEUGEOT 807 2.0 HDi [RHR(DW10CB)] 06.2006-

PEUGEOT 308 2.0 HDi [RHE(DW10CTED4)] 10.2011-10.2014

PEUGEOT 308 2.0 HDi [RHH(DW10CTED4)] 06.2009-12.2014

PEUGEOT Traveller 2.0 BlueHDi 150 [AHX(DW10FD)] 04.2016

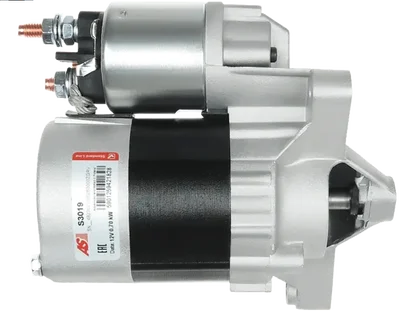

Démarreur Magneti-Marelli 944280179300

Référence : S3019

Référence 0E : D7E16

EAN : 5901259421828

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 0.70

Rotation du demarreur CW

Taille A [ mm ] 55.00

Taille B [ mm ] -5.00

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 8. 9

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 1

L.1 [ mm ] 169.00

O.1 [ mm ] 85.00

O.2 [ mm ] 120.00

O.3 [ mm ] 85.00

C.1 [ mm ] 9.00

C.2 [ mm ] 9.00

C.3 [ mm ] M8x1.25

Références compatibles :

0001116003BOSCHListe

0986017930BOSCH

111994CARGO

DRS3545DELCO

DRS3545XDELCO

DS4655DELCO

RAS34656DELCO

9609313280FIAT

96262614FIAT

8EA012526-961HELLA

8EA737537-001HELLA

943253115MAGNETI MARELLI

944280179300MAGNETI MARELLI

M000T45071MITSUBISHIListe

M000T45071ZTMITSUBISHIListe

M002T13081MITSUBISHIListe

M0T45071MITSUBISHIListe

M0T45071ZTMITSUBISHIListe

M2T13081MITSUBISHIListe

5802-EPPEUGEOT

5802-P8PEUGEOT

5802-R4PEUGEOT

5802CRPEUGEOT

5802EPPEUGEOT

5802M9PEUGEOT

5802P8PEUGEOT

5802Q7PEUGEOT

5802Q8PEUGEOT

5802Q9PEUGEOT

5802R3PEUGEOT

5802R4PEUGEOT

9626261480PEUGEOT

97530824PEUGEOT

20500737PRESTOLITE

S1091RPRESTOLITE

S1208VPRESTOLITE

438093VALEOListe

455748VALEOListe

455962VALEOListe

726022VALEO

726053VALEO

726853VALEO

838018VALEO

D7E16VALEOListe

D7E7VALEOListe

D7E71VALEO

TS8E2VALEOListe

STRL7903EFFE

AES1297AUTOELECTRO

STA0437RBOVEZ

3611CEVAM

11856EAI

STR0039ELECTROLOG

STR0046ELECTROLOG

STR0084ELECTROLOG

25-3009ELSTOCK

220012ERA

220392ERA

8017930FRIESEN

GS438093-AGPARTS

CS1111HC PARTS

42455962HERTH+BUSS

101111KUHNER

101111VKUHNER

10581KUHNER

10581RKUHNER

10581VKUHNER

22.1111LAUBER

22.1111MLAUBER

LRT00197LUCAS

LRT197LUCAS

88213292POWERMAX

220.523.093PSH

RNLD7E7RNL

STM476ROLLCO

STM504ROLLCO

6015145.0SANDO

S12VA0776A2SIDAT

MAV171450SIOM

MAV371390SIOM

MAV4630SIOM

STX200012STARDAX

STX200012RSTARDAX

STX200101STARDAX

STX200101RSTARDAX

STX201404STARDAX

30737NWAI / TRANSPO

30738RWAI / TRANSPO

STR54008WOODAUTO

Convient pour :

CITROEN Berlingo 1.4 i [KFX(TU3JP)] 07.1996-12.2011

CITROEN Berlingo First 1.1 i [HFX(TU1JP)] 07.1996-03.2008

CITROEN C2 1.1 [HFX(TU1JP)] 09.2003-

CITROEN Saxo 1.6 VTS [NFX(TU5JP4)] 06.1996-09.2003

CITROEN Xsara 1.4 i [KFX(TU3JP)] 04.1997-03.2005

CITROEN Berlingo First 1.1 i [HFX(TU1JP)] 07.1996-05.2008

CITROEN Saxo 1.0 X [CDZ(TU9M)] 05.1996-11.1998

CITROEN Berlingo 1.4 i bivalent [KFW(TU3JP)] 04.2003-10.2005

CITROEN Berlingo 1.4 i bivalent [KFW(TU3JP)] 04.2003-10.2008

CITROEN C3 1.6 16V [NFU(TU5JP4)] 02.2002-

CITROEN Xsara Picasso 1.6 [NFV(TU5JP)] 12.1999-

CITROEN C2 1.4 [KFV(TU3JP)] 09.2003-

CITROEN Saxo 1.0 X [CDZ(TU9M)] 05.1998-06.2003

CITROEN Xsara 1.4 i [KFX(TU3JP)] 10.1997-08.2005

CITROEN Berlingo First 1.4 bivalent [KFW(TU3JP)] 11.2002-12.2011

CITROEN Berlingo First 1.4 i [KFW(TU3JP)] 07.1996-12.2011

CITROEN C2 1.4 16V [KFU(ET3J4)] 06.2006-

CITROEN Xsara Picasso 1.6 [NFZ(TU5JP)] 12.1999-

CITROEN Xsara 1.4 i [KFX(TU3JP)] 03.1998-03.2005

CITROEN Berlingo First 1.4 i [KFX(TU3JP)] 07.1996-12.2011

CITROEN Saxo 1.1 SX [HDZ(TU1M)] 05.1996-09.2003

CITROEN Berlingo First 1.4 i bivalent [KFW(TU3JP)] 04.2003-10.2005

CITROEN Berlingo First 1.4 i bivalent [KFW(TU3JP)] 04.2003-10.2008

CITROEN Saxo 1.1 SX [HFX(TU1JP)] 05.1996-09.2003

CITROEN C3 1.4 16V [KFU(ET3J4)] 12.2003-

CITROEN C3 Pluriel 1.4 [KFV(TU3JP)] 05.2003-

CITROEN Berlingo First 1.6 16V [NFU(TU5JP4)] 10.2000-03.2008

CITROEN Berlingo First 1.6 16V [NFU(TU5JP4)] 10.2000-12.2011

CITROEN Saxo 1.1 X [HDZ(TU1M)] 05.1996-09.2003

CITROEN Berlingo 1.1 i [HDZ(TU1M)] 07.1996-03.2008

CITROEN C2 1.6 [NFU(TU5JP4)] 09.2003-

CITROEN Berlingo 1.1 i [HDZ(TU1M)] 07.1996-05.2008

CITROEN Saxo 1.1 X [HFX(TU1JP)] 05.1996-09.2003

CITROEN Xsara 1.6 16V [NFU(TU5JP4)] 09.2000-03.2005

CITROEN Xsara 1.6 16V [NFU(TU5JP4)] 09.2000-08.2005

CITROEN Saxo 1.4 VTS [KFW(TU3JP)] 05.1996-06.2003

CITROEN Berlingo 1.1 i [HFX(TU1JP)] 07.1996-03.2008

CITROEN Berlingo 1.1 i [HFX(TU1JP)] 07.1996-05.2008

CITROEN Berlingo 1.6 16V [NFU(TU5JP4)] 10.2000-03.2008

CITROEN Berlingo 1.6 16V [NFU(TU5JP4)] 10.2000-12.2011

CITROEN Saxo 1.4 VTS [KFX(TU3JP)] 05.1996-06.2003

CITROEN Xsara 1.6 i [NFZ(TU5JP)] 04.1997-09.2000

CITROEN C3 1.4 i [KFV(TU3A)] 02.2002-

CITROEN Xsara 1.6 i [NFZ(TU5JP)] 10.1997-09.2000

CITROEN Xsara 1.4 i [KFW(TU3JP)] 04.1997-03.2005

CITROEN C3 1.4 i [KFV(TU3JP)] 02.2002-

CITROEN C3 1.1 i [HFX(TU1A)] 02.2002-

CITROEN Saxo 1.6 VTL [NFZ(TU5JP)] 05.1996-06.2003

CITROEN Berlingo 1.4 bivalent [KFW(TU3JP)] 11.2002-12.2011

CITROEN C3 1.4 i Bivalent [KFV(TU3JP)] 02.2002-

CITROEN Xsara 1.4 i [KFW(TU3JP)] 10.1997-08.2005

CITROEN Xsara 1.6 i [NFZ(TU5JP)] 02.1998-09.2000

CITROEN C3 1.1 i [HFX(TU1JP)] 02.2002-

CITROEN Saxo 1.6 VTR [NFZ(TU5JP)] 05.1996-06.2003

CITROEN Berlingo 1.4 i [KFW(TU3JP)] 07.1996-12.2011

CITROEN Berlingo First 1.1 i [HDZ(TU1M)] 07.1996-03.2008

CITROEN Xsara 1.4 i [KFW(TU3JP)] 03.1998-03.2005

CITROEN Berlingo First 1.1 i [HDZ(TU1M)] 07.1996-05.2008

CITROEN Saxo 1.6 VTS [NFT(TU5JP)] 09.2000-09.2003



PEUGEOT 106 1.1 i [HDZ(TU1M)] 05.1996-07.2004

PEUGEOT 106 1.6 S16 [NFX(TU5J4)] 05.1996-07.2004

PEUGEOT 206 1.4 [KFW(TU3JP)] 03.2007-

PEUGEOT 106 1.1 i [HFX(TU1JP)] 05.1996-07.2004

PEUGEOT 206 1.4 16V [KFU(ET3J4)] 10.2003-

PEUGEOT 306 1.6 [NFZ(TU5JP)] 05.1993-10.2000

PEUGEOT Partner 1.6 16V Combispace [NFU(TU5JP4)] 07.2001-03.2008

PEUGEOT 307 1.4 [KFW(TU3JP)] 08.2000-

PEUGEOT 206 1.6 i [NFZ(TU5JP)] 09.1998-12.2000

PEUGEOT 306 1.6 [NFZ(TU5JP)] 04.1996-10.2000

PEUGEOT 306 1.1 [HDZ(TU1M)] 05.1993-05.2001

PEUGEOT 307 1.4 16V [KFU(ET3J4)] 11.2003-

PEUGEOT Partner 1.1 [HDZ(TU1M)] 06.1996-09.2005

PEUGEOT 307 1.4 16V [KFU(ET3J4)] 11.2003-07.2007

PEUGEOT 306 1.1 [HDZ(TU1M)] 06.1994-05.2001

PEUGEOT 306 1.4 [KDX(TU3MC)] 04.1993-07.2001

PEUGEOT 306 1.6 SR [NFZ(TU5JP)] 06.1994-10.2000

PEUGEOT Partner 1.1 Combispace [HDZ(TU1M)] 06.1996-10.2002

PEUGEOT Partner 1.1 Combispace [HFX(TU1JP)] 06.1996-10.2002

PEUGEOT 307 1.6 16V [NFU(TU5JP4)] 08.2000-11.2007

PEUGEOT 306 1.4 [KFW(TU3JP)] 04.1993-07.2001

PEUGEOT 206 1.4 i [KFW(TU3A)] 09.1998-

PEUGEOT 106 1.4 i [KFW(TU3JP)] 05.1996-07.2004

PEUGEOT 206 1.4 i [KFW(TU3JP)] 09.1998-

PEUGEOT 106 1.4 i [KFX(TU3JP)] 05.1996-07.2004

PEUGEOT 206 CC 1.6 16V [NFU(TU5JP4)] 09.2000-

PEUGEOT 306 1.4 [KFX(TU3JP)] 04.1993-07.2001

PEUGEOT Partner 1.4 [KFX(TU3JP)] 06.1996-12.2015

PEUGEOT 206 SW 1.1 [HFX(TU1JP)] 07.2002-

PEUGEOT 206 1.4 i [KFX(TU3JP)] 09.1998-

PEUGEOT 206 SW 1.4 [KFV(TU3A)] 07.2002-02.2007

PEUGEOT 206 SW 1.4 [KFW(TU3JP)] 07.2002-02.2007

PEUGEOT 206 SW 1.4 16V [KFU(ET3J4)] 10.2003-

PEUGEOT Partner 1.4 [TU32] 06.1996-12.2015

PEUGEOT 206 SW 1.6 16V [NFU(TU5JP4)] 07.2002-

PEUGEOT 106 1.0 i [CDY(TU9M)] 05.1996-10.1999

PEUGEOT 206 1.1 i [HFX(TU1JP)] 09.1998-

PEUGEOT Partner 1.4 Combispace [KFW(TU3A)] 06.1996-12.2015

PEUGEOT 306 1.4 SL [KDX(TU3MC)] 06.1994-05.2001

PEUGEOT 106 1.6 i [NFW(TU5J2)] 05.1996-01.2001

PEUGEOT 106 1.0 i [CDZ(TU9M)] 01.1997-03.2001

PEUGEOT 307 SW 1.6 16V [NFU(TU5JP4)] 03.2002-04.2008

PEUGEOT Partner 1.4 Combispace [KFW(TU3JP)] 06.1996-12.2015

PEUGEOT 206 1.1 i [HFZ(TU1JP)] 09.1998-

PEUGEOT Partner 1.4 Combispace [KFX(TU3JP)] 06.1996-12.2015

PEUGEOT 306 1.4 SL [KFW(TU3JP)] 06.1994-05.2001

PEUGEOT 106 1.6 i [NFY(TU5J2)] 05.1996-01.2001

PEUGEOT 206 1.6 16V [NFU(TU5JP4)] 12.2000-

PEUGEOT Partner 1.4 Combispace [TU32] 06.1996-12.2015

PEUGEOT 306 1.4 SL [KFX(TU3JP)] 06.1994-05.2001

PEUGEOT 106 1.1 i [HDY(TU1M)] 01.1997-03.2001

PEUGEOT 106 1.6 i [NFZ(TU5JP)] 05.1996-10.1999

PEUGEOT 206 1.4 [KFV(TU3A)] 03.2007-

PEUGEOT 306 1.6 [NFT(TU5JP)] 10.2000-05.2001

PEUGEOT 306 1.6 [NFT(TU5JP)] 10.2000

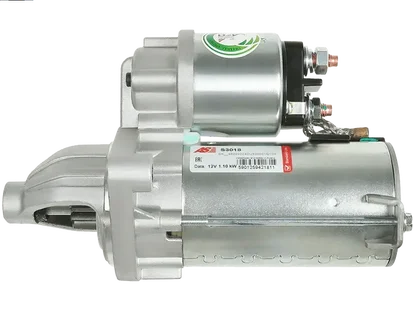

Démarreur Magneti-Marelli MRS21240

Référence : S3018

Référence 0E : D6G33

EAN : 5901259421811

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.10

Rotation du demarreur CW

Taille A [ mm ] 64.00

Taille B [ mm ] 24.00

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 2

Nombre de trous filetes [ qty. ] 1

L.1 [ mm ] 203.00

O.1 [ mm ] 102.50

C.1 [ mm ] 9.50

C.2 [ mm ] M8x1.25

Références compatibles :

0001107429BOSCHListe

0001107437BOSCHListe

0001107444BOSCHListe

0986021240BOSCH

0986021243BOSCH

1986S00675BOSCH

F002G20485BOSCHListe

F002G20917BOSCH

113843CARGO

DSN3023DENSO

33353237FIAT

55217673FIAT

55353237FIAT

55353247FIAT

55353257FIAT

553532570FIAT

55561503FIAT

8EA012526-971HELLA

11.131.902ISKRA / LETRIKA

AZD2125ISKRA / LETRIKA

IS1286ISKRA / LETRIKA

063521074370MAGNETI MARELLI

063721334010MAGNETI MARELLI

943213341010MAGNETI MARELLI

944280212400MAGNETI MARELLI

MQS1334MAGNETI MARELLI

MRS21240MAGNETI MARELLI

72735663MAHLE

MS35MAHLE

1202224OPEL

1202399OPEL

55569540OPEL

55578093OPEL

55584688OPEL

6202071OPEL

6202083OPEL

6202095OPEL

6202099OPEL

93178138OPEL

93186246OPEL

93189232OPEL

93190320OPEL

95518997OPEL

95519003OPEL

95918997OPEL

98186246OPEL

R1540025OPEL

S1207VPRESTOLITE

31100-84EC0SUZUKI

31100-84EC00SUZUKI

31100-85E00SUZUKI

31100-86J010SUZUKI

31100-86J20SUZUKI

31100-M86J01SUZUKI

31100-M86J12SUZUKI

31100-M86J20SUZUKI

201021VALEO

438270VALEO

458375VALEOListe

458430VALEO

460475VALEO

D6G33VALEOListe

D6G332VALEOListe

AZMT-53-010-1166A.Z. MEISTERTEILE

AZMT-53-010-1330A.Z. MEISTERTEILE

AZMT-53-010-1611A.Z. MEISTERTEILE

AI-80004AINDE

10439852ALANKO

10439878ALANKO

ANM23460ANDEL

ANM23460XANDEL

ASM1432APEC

A21240ATL AUTOTECHNIK

AEU1334AUTOELECTRO

SBO251AUTOTEAM

SBO251AAUTOTEAM

SVA128AUTOTEAM

SVA128AAUTOTEAM

BST2053BORG & BECK

STA0541RBOVEZ

CST10251ASCASCO

CST10251GSCASCO

CST15128ASCASCO

CST15128GSCASCO

3141CEVAM

328075092DRI

S-54081DTS

11958EAI

STR0093ELECTROLOG

25-3342ELSTOCK

25-4476ELSTOCK

EZ0531ELTA AUTOMOTIVE

220211ERA

220211AERA

220211RERA

1638136480EUROREPAR

11021240EUROTEC

105517FARCOM

108060FARCOM

8021240FRIESEN

SG0101GHIBAUDI

55234810GM

GS107437B-RGPARTS

SS107437B-RGPARTS

CS1334HC PARTS

3110738HENKEL PARTS

3110739HENKEL PARTS

3110740HENKEL PARTS

3110741HENKEL PARTS

3110742HENKEL PARTS

3110746HENKEL PARTS

3110790HENKEL PARTS

3110791HENKEL PARTS

42107429HERTH+BUSS

H5010005HOFFER

10010251AVITAB AUTOMOTIVE

10010251OVITAB AUTOMOTIVE

10015128AVITAB AUTOMOTIVE

10015128OVITAB AUTOMOTIVE

11010075KRAFTVOLL GERMANY

STB1334KRAUF

101334KUHNER

101334BKUHNER

101334KKUHNER

101334MKUHNER

LES0420LE PART

331877LOGISTIK

LRS02168LUCAS

LRS03803LUCAS

LRS2168LUCAS

LRS3803LUCAS

5010005MEAT & DORIA

8660004251MOTRIO

12117024MTR

12138028MTR

NPANSM1432NAPA

88212820POWERMAX

IR9406PROTECH

130.540.092.000PSH

130.540.092.010PSH

130.540.092.210PSH

130.540.092.211PSH

130.540.092.215PSH

130.540.092.280PSH

130.540.092.502PSH

130.540.092.505PSH

QRS2320QUINTON HAZELL

20401152BNREAL

20401152OEREAL

20479821BNREAL

20479821OEREAL

011-001-000340RREMANTE

STM1324ROLLCO

STM766ROLLCO

6010251.0SANDO

6010251.1SANDO

6015128.0SANDO

6015128.1SANDO

S12BH0033SIDAT

S12BH0033A2SIDAT

S12VA0033SIDAT

S12VA0033A2SIDAT

MAV122510SIOM

MAV122510ASIOM

MAV171280SIOM

MAV171280ASIOM

OP9033SNRA

STX200047STARDAX

STX200047RSTARDAX

STX200253STARDAX

STX200253RSTARDAX

958ST11STARTCAR

TT16319TESLA

TT16319PROTESLA

RE83537NTHE NEW LINE

ST01952TMI

33169NWAI / TRANSPO

WG2012838WILMINK GROUP

WG2150988WILMINK GROUP

WG2196556WILMINK GROUP

STR50387WOODAUTO

STR54081WOODAUTO

STR54123WOODAUTO

VAL438270WOODAUTO

VALD6G332WOODAUTO



Convient pour :

CHEVROLET Aveo 1.3 D [LDV] 07.2011-12.2015

CHEVROLET Aveo 1.3 D [LSF] 07.2011-12.2015



OPEL Meriva 1.3 CDTi [A13DTC] 06.2010-10.2013

OPEL Meriva 1.3 CDTi [A13DTE] 06.2010-11.2014

OPEL Meriva 1.3 CDTi [Y13DT] 04.2005-05.2010

OPEL Meriva 1.3 CDTi [Z13DT] 04.2005-05.2010

OPEL Tigra 1.3 CDTi [Z13DT] 06.2004-12.2010

OPEL Astra 1.3 CDTi [A13DTE] 12.2009-10.2015

OPEL Astra 1.3 CDTi [A13DTE] 06.2012-10.2015

OPEL Combo 1.3 CDTi 16V [Z13DTJ] 10.2005-12.2012

OPEL Astra 1.3 CDTi [Z13DTH] 08.2005-10.2010

OPEL Astra 1.3 CDTi [Z13DTH] 02.2007-10.2010

OPEL Astra 1.3 CDTi Classic [Z13DTH] 01.2009-

OPEL Combo 1.3 CDTi 16V [Z13DT] 08.2005-

OPEL Astra 1.3 CDTi GTC [Z13DTH] 04.2005-10.2010

OPEL Astra 1.3 CDTi Sports Tourer [A13DTE] 10.2010-10.2014

OPEL Corsa E 1.3 CDTi [B13DTN] 01.2015-

OPEL Agila 1.3 CDTi [Z13DT] 08.2003-12.2007

OPEL Combo Tour 1.3 CDTi 16V [Y13DT] 06.2004-01.2011

OPEL Corsa 1.3 CDTi [A13DTC] 07.2006-08.2014

OPEL Combo Tour 1.3 CDTi 16V [Z13DTJ] 10.2005-12.2011

OPEL Combo Tour 1.3 CDTi 16V [Z13DT] 06.2004-01.2011

OPEL Corsa 1.3 CDTi [B13DTC] 09.2014-

OPEL Corsa 1.3 CDTi [B13DTC] 01.2015-

OPEL Corsa 1.3 CDTi [B13DTE] 09.2014-

OPEL Corsa 1.3 CDTi [B13DTN] 09.2014-

OPEL Corsa 1.3 CDTi [B13DTR] 09.2014-

OPEL Corsa 1.3 CDTi [Z13DTJ] 07.2006-08.2014



SUBARU Justy 1.3 CDTi [Z13DT] 12.2003-08.2007



SUZUKI Ignis 1.3 DDiS [Z13DT] 09.2003-

SUZUKI Wagon R+ 1.3 DDiS [Z13DT] 09.2003

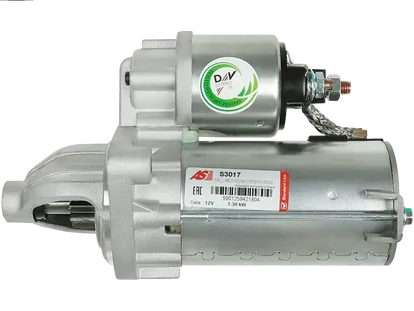

Démarreur Magneti-Marelli 063280045010

Référence : S3017

Référence 0E : D6G32

EAN : 5901259421804

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.30

Rotation du demarreur CW

Taille A [ mm ] 64.00

Taille B [ mm ] 24.00

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 2

Nombre de trous filetes [ qty. ] 1

L.1 [ mm ] 202.00

O.1 [ mm ] 102.50

C.1 [ mm ] 9.00

C.2 [ mm ] M8x1.25

Balais charbons : PSX169-170

Références compatibles :

0986024200BOSCH

113719CARGO

115869CARGO

DRS0063DELCO

DRS0063NDELCO

DRS0063XDELCO

DS1173DELCO

DS1173NDELCO

RAS31172DELCO

33353237FIAT

46823548FIAT

51810266FIAT

518102660FIAT

51810302FIAT

51823860FIAT

51880229FIAT

55204116FIAT

55353247FIAT

71424238FIAT

71722997FIAT

71724236FIAT

71724238FIAT

71789754FIAT

71793302FIAT

71793488FIAT

1571299FORD

1726349FORD

9S52-11000-BBFORD

AMHB3C11000AAFORD

HB3C-11000-AAFORD

8EA011610-301HELLA

8EA738258-271HELLA

6.0161.9IKA

063280045010MAGNETI MARELLI

63280045MAGNETI MARELLI

943213461010MAGNETI MARELLI

944280801130MAGNETI MARELLI

MRS80113MAGNETI MARELLI

MSN8045MAGNETI MARELLI

09115193OPEL

1202265OPEL

1202499OPEL

95511894OPEL

95520332OPEL

1612794380PEUGEOT

1637179980PEUGEOT

S1216VPRESTOLITE

201014VALEO

438168VALEOListe

458191VALEOListe

460443VALEO

726039VALEO

726839VALEO

D6G1VALEOListe

D6G31VALEO

D6G32VALEOListe

D6G321VALEOListe

D6GP8VALEO

TS12M32VALEO

PRSL0503EFFE

STRL0503EFFE

CGB-20063AINDE

CGB-20063RAINDE

ANM12283XANDEL

ASM1495APEC

AEU1346AUTOELECTRO

NEU1346AUTOELECTRO

STA0072RBOVEZ

CST15138ASCASCO

CST15138GSCASCO

3161CEVAM

11995EAI

STR0493ELECTROLOG

STR0494ELECTROLOG

25-3423ELSTOCK

EZ0594ELTA AUTOMOTIVE

220359ERA

220359AERA

SG0412GHIBAUDI

GS438168-AGPARTS

GS438168-NGPARTS

GS438168V-RGPARTS

S438168-AGPARTS

SS438168V-RGPARTS

CS1346HC PARTS

42458191HERTH+BUSS

STV1346KRAUF

101346KUHNER

101346MKUHNER

101346RKUHNER

101346VKUHNER

331467LOGISTIK

LRS02252LUCAS

LRS2252LUCAS

5015029MEAT & DORIA

NPANSM1495NAPA

88212626POWERMAX

500.537.092.000PSH

500.537.092.008PSH

500.537.092.230PSH

500.537.092.500PSH

500.537.092.501PSH

500.537.092.505PSH

20479831BNREAL

20479831OEREAL

STM961ROLLCO

6015138.0SANDO

6015138.1SANDO

S12VA0017SIDAT

S12VA0017A2SIDAT

MAV4780SIOM

STX200026STARDAX

STX200026RSTARDAX

STX200047STARDAX

STX200047RSTARDAX

33252NWAI / TRANSPO

33252RWAI / TRANSPO

STR54075WOODAUTO

VAL438168WOODAUTO

VALD6G321WOODAUTO

Convient pour :

ALFA ROMEO Mito 1.3 Multijet [199A3.000] 08.2008-

ALFA ROMEO Mito 1.3 Multijet [955B2.000] 08.2008



FIAT Panda 1.3 D Multijet [188A8.000] 09.2003-

FIAT Punto Evo 1.3 D Multijet [199A9.000] 10.2009-02.2012

FIAT Grande Punto 1.3 D Multijet [199A2.000] 10.2005-

FIAT Panda 1.3 D Multijet [188A8.000] 03.2004-

FIAT Grande Punto 1.3 D Multijet [199A3.000] 10.2005-

FIAT Panda 1.3 D Multijet 4x4 [169A1.000] 01.2006-

FIAT Panda 1.3 D Multijet 4x4 [188A8.000] 10.2004-

FIAT Grande Punto 1.3 D Multijet [199B4.000] 04.2010-

FIAT Grande Punto 1.3 D Multijet [223A9.000] 04.2010-

FIAT Panda 1.3 JTD Multijet 4x4 [169A1.000] 09.2010-08.2013

FIAT 500 C 1.3 D Multijet [169A1.000] 09.2009-

FIAT Panda 1.3 JTD Multijet 4x4 [169A5.000] 09.2010-08.2013

FIAT Fiorino 1.3 D Multijet [199A2.000] 11.2007-

FIAT Fiorino 1.3 D Multijet [199A9.000] 11.2007-

FIAT Doblo 1.3 D Multijet [199A3.000] 02.2010-

FIAT Doblo 1.3 D Multijet [263A2.000] 02.2010-

FIAT Siena 1.3 JTD [188A9.000] 09.2003-12.2009

FIAT Doblo 1.3 D Multijet Cargo [199A2.000] 10.2005-01.2010

FIAT Qubo 1.3 D Multijet [199A2.000] 02.2008-

FIAT Doblo 1.3 JTD [199A2.000] 05.2005-

FIAT Qubo 1.3 D Multijet [199A9.000] 02.2008-

FIAT Doblo 1.3 JTD 16V Cargo [188A8.000] 05.2004-12.2006

FIAT Strada 1.3 D Multijet [199B1.000] 10.2010-

FIAT Doblo 1.3 JTD 16V Cargo [188A9.000] 05.2004-12.2006

FIAT Doblo 1.3 JTD 16V Multijet Cargo [223A9.000] 08.2006-

FIAT Idea 1.3 D Multijet [188A9.000] 01.2004-

FIAT Idea 1.3 D Multijet [199A3.000] 10.2005-

FIAT 500 1.3 D Multijet [169A1.000] 10.2007-

FIAT Punto 1.3 D Multijet [199A2.000] 04.2008-

FIAT Punto 1.3 D Multijet [199A2.000] 03.2012-

FIAT Punto 1.3 D Multijet [199A9.000] 04.2008-

FIAT Punto 1.3 D Multijet [199A9.000] 03.2012

FIAT Panda 1.3 D Multijet [169A1.000] 01.2006-

FIAT Punto 1.3 JTD [188A9.000] 06.2003-10.2005

FIAT Punto Evo 1.3 D Multijet [199A2.000] 10.2009-02.2012

FIAT Panda 1.3 D Multijet [169A1.000] 06.2006-08.2013

FIAT Punto 1.3 JTD 16V [188A9.000] 06.2003-03.2012

FIAT Panda 1.3 D Multijet [169A5.000] 06.2006-08.2013



LANCIA Ypsilon 1.3 D Multijet [199A2.000] 09.2006-12.2011

LANCIA Ypsilon 1.3 D Multijet [199A3.000] 09.2006-12.2011

LANCIA Ypsilon 1.3 D Multijet [199A3.000] 05.2007-12.2011

LANCIA Ypsilon 1.3 JTD [188A9.000] 10.2003-12.2011

LANCIA Musa 1.3 D Multijet [188A9.000] 10.2004-09.2012

LANCIA Musa 1.3 D Multijet [199A3.000] 09.2006-09.2012



OPEL Corsa D 1.3 CDTi [A13DTC] 07.2006-08.2014

OPEL Corsa D 1.3 CDTi [Z13DTJ] 07.2006-08.2014

OPEL Tigra 1.3 CDTi Twintop [Z13DT] 06.2004-12.2010

OPEL Combo 1.3 CDTi 16V [Z13DTJ] 10.2005-12.2012

OPEL Agila 1.3 CDTi [Z13DT] 08.2003-12.2007

OPEL Combo Tour 1.3 CDTi 16V [Y13DT] 06.2004-01.2011

OPEL Combo Tour 1.3 CDTi 16V [Z13DTJ] 10.2005-12.2011

OPEL Combo Tour 1.3 CDTi 16V [Z13DT] 06.2004-01.2011



VAUXHALL Astra Mk V 1.3 CDTi [Z13DTH] 08.2005-

VAUXHALL Astra Mk V 1.3 CDTi Sport Hatch [Z13DTH] 04.2005-11.2010

VAUXHALL Tigra Twintop 1.3 CDTi [Z13DT] 06.2004-08.2009

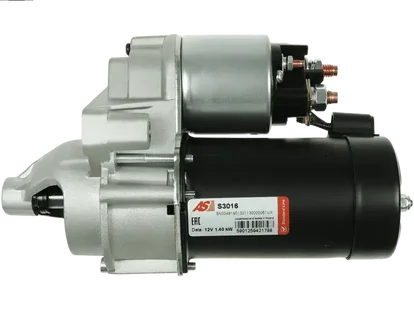

Démarreur Magneti-Marelli 943293541010

Référence : S3016

Référence 0E : D6RA110

EAN : 5901259421798

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.40

Rotation du demarreur CW

Taille B [ mm ] 14.00

Nombre de dents [ qty. ] 11

Nombre de dents (s'insère dans) [ qty. ] 11.12

Nombre d'ouvertures dans la tete [ qty. ] 4

Nombre de trous filetes [ qty. ] 2

L.1 [ mm ] 213.00

O.1 [ mm ] 124.50

O.2 [ mm ] 29.00

O.3 [ mm ] 46.50

O.4 [ mm ] 89.50

C.1 [ mm ] 10.00

C.2 [ mm ] M8x1.25

C.3 [ mm ] M8x1.25

C.4 [ mm ] 9.50

Balais charbons : PSX148-149

Références compatibles :

0001174643BOSCH

0986021651BOSCH

113254CARGO

DRS3903DELCO

DRS3903NDELCO

DS5013DELCO

DS5013NDELCO

RAS34014DELCO

428000-1640DENSOListe

71793771FIAT

71794297FIAT

9637813680FIAT

9688512780FIAT

K9637813680FIAT

8EA011610-181HELLA

8EA738016-001HELLA

6.0054.9IKA

063721260010MAGNETI MARELLI

943293541010MAGNETI MARELLI

944280801790MAGNETI MARELLI

944293541010MAGNETI MARELLI

MQS1260MAGNETI MARELLI

MRS54101MAGNETI MARELLI

MSR544MAGNETI MARELLI

M000T22472MITSUBISHIListe

M000T93581MITSUBISHIListe

M000T93582MITSUBISHIListe

M0T22472MITSUBISHIListe

M0T93581MITSUBISHIListe

M0T93582MITSUBISHIListe

3640319OPEL

95526662OPEL

1213257PEUGEOT

1638115880PEUGEOT

5802-Y5PEUGEOT

5802-Y6PEUGEOT

5802A2PEUGEOTListe

5802AZPEUGEOT

5802FGPEUGEOT

5802FHPEUGEOT

5802FPPEUGEOT

5802M4PEUGEOT

5802Y4PEUGEOT

5802Y5PEUGEOT

5802Y6PEUGEOT

9640825280PEUGEOT

9646679980PEUGEOT

9663528880PEUGEOT

9664016980PEUGEOT

9688268480PEUGEOT

9688268580PEUGEOT

968826858000PEUGEOT

9801667580PEUGEOT

28100-YV010TOYOTA

28100-YV011TOYOTA

438133VALEOListe

446514VALEO

455982VALEOListe

726062VALEO

D6RA110VALEOListe

TS14-62VALEO

TS14E110VALEOListe

STRL0793EFFE

CGB-23903AINDE

ANM16123XANDEL

ASM1498APEC

AEU1260AUTOELECTRO

NEU1260AUTOELECTRO

STA0175RBOVEZ

CST15108CASCO

CST15108ASCASCO

CST15108ESCASCO

CST15108GSCASCO

CST15108OSCASCO

CST15108RSCASCO

3006CEVAM

11908EAI

STR00144ELECTROLOG

STR0064ELECTROLOG

25-3070ELSTOCK

220068ERA

SG0414GHIBAUDI

GS438133-AGPARTS

GS438133V-RGPARTS

CS1260HC PARTS

42455982HERTH+BUSS

STM1260KRAUF

STV1260KRAUF

101260KUHNER

101260MKUHNER

101260RKUHNER

101260VKUHNER

331385LOGISTIK

LRS01569LUCAS

LRS1569LUCAS

5015027MEAT & DORIA

NPANSM1498NAPA

88212391POWERMAX

220.519.114.000PSH

220.519.114.001PSH

220.519.114.008PSH

220.519.114.009PSH

220.519.114.280PSH

220.519.114.504PSH

220.519.114.505PSH

220.519.114.507PSH

20437742REAL

20479801REAL

RNLD6RA110RNL

STM926ROLLCO

6015108SANDO

S12VA0001SIDAT

S12VA0001A2SIDAT

MAV171080SIOM

STX200013STARDAX

STX200013RSTARDAX

STX200017STARDAX

STX200017RSTARDAX

STX200099STARDAX

STX200099RSTARDAX

STX200354STARDAX

STX200452STARDAX

F032US0065UNIPOINT

32570NWAI / TRANSPO

STR54045WOODAUTO

VAL438133WOODAUTO

Convient pour :

CITROEN C4 Cactus 1.6 HDi 90 [9HP(DV6D)] 09.2014-

CITROEN C4 Picasso 1.6 HDi 115 [9HC(DV6C)] 02.2013-

CITROEN C4 Cactus 1.6 HDi 90 [9HP(DV6DTED)] 09.2014-

CITROEN C4 Picasso 1.6 HDi 115 [BHX(DV6FC)] 02.2013-

CITROEN C-Elysee 1.6 Blue HDi 100 [BHY(DV6FD)] 11.2014-

CITROEN C4 1.6 HDi [9HV(DV6TED4B)] 11.2004-07.2011

CITROEN C4 Grand Picasso 1.6 Blue HDi 115 [9HC(DV6C)] 09.2013-

CITROEN Berlingo Multispace 1.6 HDi 75 [9HN(DV6ETED)] 04.2008-

CITROEN C4 Grand Picasso 1.6 Blue HDi 115 [BHX(DV6FC)] 09.2013-

CITROEN Spacetourer 1.5 Blue HDi 100 [YHR(DV5RUCd)] 06.2018-

CITROEN C4 1.6 HDi [9HV(DV6TED4BU)] 11.2004-07.2011

CITROEN Spacetourer 1.5 Blue HDi 120 [YHV(DV5RUC)] 06.2018-

CITROEN C4 Picasso 1.6 HDi 90 [9HP(DV6DTED)] 02.2013-

CITROEN Berlingo Multispace 1.6 HDi 75 [BHW(DV6FE)] 04.2008-

CITROEN Spacetourer 1.6 Blue HDi 95 [BHS(DV6FDU)] 04.2016-

CITROEN Spacetourer 1.6 Blue HDi 95 [BHV(DV6FDU)] 04.2016-

CITROEN C3 Picasso 1.6 Blue HDi 100 [BHY(DV6FD)] 01.2015-

CITROEN Berlingo Multispace 1.6 HDi 75 16V [9HT(DV6BTED4)] 04.2008-

CITROEN C4 1.6 HDi [9HX(DV6ATED4)] 11.2004-07.2011

CITROEN Berlingo 1.5 Blue HDi 100 [YHT(DV5RCF)] 06.2018-

CITROEN DS3 1.6 HDi 90 [9HP(DV6DTED)] 11.2009-07.2015

CITROEN Berlingo 1.5 Blue HDi 100 [YHY(DV5RD)] 06.2018-

CITROEN Berlingo Multispace 1.6 HDi 90 [9HJ(DV6DTEDM)] 07.2010-

CITROEN C3 Picasso 1.6 HDi [9HX(DV6ATED4)] 02.2009-

CITROEN Berlingo 1.5 Blue HDi 75 [YHW(DV5RE)] 06.2018-

CITROEN Berlingo Multispace 1.6 HDi 90 [9HP(DV6DTED)] 07.2010-

CITROEN C2 1.4 HDi [8HX(DV4TD)] 07.2003-12.2009

CITROEN Berlingo 1.5 Blue HDi 75 [YHW(DV5RE)] 10.2019-

CITROEN Berlingo Multispace 1.6 HDi 90 [9HV(DV6TED4B)] 04.2008-

CITROEN DS3 1.6 HDi 90 [9HP(DV6DTED)] 01.2013-07.2015

CITROEN C3 1.6 16V HDi [9HX(DV6ATED4)] 10.2005-

CITROEN C5 2.2 HDi [4HP(DW12BTED4)] 05.2006-01.2008

CITROEN C4 Grand Picasso 1.6 HDi 115 [9HC(DV6C)] 09.2013-

CITROEN Berlingo Multispace 1.6 HDi 90 [9HX(DV6ATED4)] 04.2008-

CITROEN C4 1.6 HDi [9HY(DV6TED4)] 11.2004-07.2011

CITROEN C2 1.4 HDi [8HX(DV4TD)] 09.2003-04.2005

CITROEN C3 Picasso 1.6 HDi 90 [9HP(DV6DTED)] 07.2010-

CITROEN C4 Grand Picasso 1.6 HDi 115 [BHX(DV6FC)] 09.2013-

CITROEN C2 1.4 HDi [8HX(DV4TD)] 09.2006-12.2009

CITROEN C3 1.6 16V HDi [9HZ(DV6TED4)] 09.2005-

CITROEN C1 1.4 HDi [8HT(DV4TD)] 06.2005-09.2014

CITROEN C4 Grand Picasso 1.6 HDi 90 [9HP(DV6DTED)] 09.2013-

CITROEN C5 2.2 HDi [4HR(DW12BTED4)] 05.2006-01.2008

CITROEN C4 1.6 HDi [9HY(DV6TED4)] 07.2006-07.2011

CITROEN C2 1.4 HDi [8HZ(DV4TD)] 07.2003-12.2009

CITROEN Jumpy 1.5 Blue HDi 100 [YHR(DV5RUCd)] 06.2018-

CITROEN Berlingo 1.6 HDi 75 [9HN(DV6ETED)] 07.2010-

CITROEN C3 Pluriel 1.4 HDi [8HX(DV4TD)] 04.2004-

CITROEN Berlingo 1.6 HDi 75 [9HT(DV6BTED4)] 04.2008-

CITROEN Jumpy 1.6 Blue HDi 115 [BHX(DV6FCU)] 04.2016-

CITROEN C3 Pluriel 1.4 HDi [8HZ(DV4TD)] 04.2004-

CITROEN Jumpy 1.6 Blue HDi 95 [BHS(DV6FDU)] 04.2016-

CITROEN Berlingo 1.6 HDi 75 [9HT(DV6BUTED4)] 04.2008-

CITROEN C3 1.4 16V HDi [8HY(DV4TED4)] 02.2002-

CITROEN C4 1.6 HDi [9HZ(DV6TED4)] 11.2004-07.2011

CITROEN Jumpy 1.6 Blue HDi 95 [BHV(DV6FDU)] 04.2016-

CITROEN Berlingo 1.6 HDi 75 [9HW(DV6BTED4)] 07.2005-12.2011

CITROEN Berlingo 1.6 HDi 75 [BHW(DV6FE)] 07.2010-

CITROEN Berlingo First 1.6 HDi 75 [9HW(DV6BTED4)] 07.2005-12.2011

CITROEN Berlingo 1.6 HDi 75 [DV6B] 07.2005-12.2011

CITROEN Berlingo First 1.6 HDi 75 [DV6B] 07.2005-12.2011

CITROEN C4 1.6 HDi [9HZ(DV6TED4)] 07.2006-07.2011

CITROEN Berlingo First 1.6 HDi 90 [9HX(DV6ATED4)] 07.2005-12.2011

CITROEN Berlingo First 1.6 HDi 90 [9HX(DV6ATED4)] 07.2005-05.2008

CITROEN C3 1.4 HDi [8HR(DV4C)] 06.2010-09.2016

CITROEN Berlingo First 1.6 HDi 92 [9HJ(DV6DTEDM)] 11.2009-12.2010

CITROEN Berlingo 1.6 HDi 90 [9HF(DV6DTED)] 07.2010-12.2017

CITROEN C3 1.6 HDi [9HJ(DV6DTEDM)] 11.2009-09.2016

CITROEN Berlingo 1.6 HDi 90 [9HF(DV6DTED)] 07.2010-

CITROEN Berlingo First 1.6 HDi 92 [9HP(DV6DTED)] 11.2009-12.2010

CITROEN C3 1.4 HDi [8HX(DV4TD)] 02.2002-

CITROEN C3 1.6 HDi [9HP(DV6DTED)] 11.2009-09.2016

CITROEN DS4 1.6 HDi 110 [9HR(DV6C)] 04.2011-07.2015

CITROEN Berlingo 1.6 HDi 90 [9HX(DV6ATED4)] 07.2005-12.2011

CITROEN Berlingo 1.6 HDi 90 [9HX(DV6ATED4)] 07.2005-05.2008

CITROEN C4 1.6 HDi 90 [9HJ(DV6DTEDM)] 11.2009-

CITROEN C4 1.6 HDi 90 [9HP(DV6DTED)] 11.2009-

CITROEN Jumpy 1.6 HDi 90 16V [9HU(DV6UTED4)] 01.2007-03.2016

CITROEN C3 1.4 HDi [8HZ(DV4TD)] 02.2002-

CITROEN Jumpy 1.6 HDi 90 16V [9HU(DV6UTED4)] 06.2007-03.2016

CITROEN Berlingo 1.6 HDi 90 16V [9HS(DV6TED4BU)] 04.2008-

CITROEN Berlingo 1.6 Blue HDi 100 [BHY(DV6FD)] 12.2014-

CITROEN C4 Picasso 1.6 Blue HDi 115 [9HC(DV6C)] 02.2013-

CITROEN Berlingo 1.6 Blue HDi 120 [BHZ(DV6FC)] 12.2014-

CITROEN Berlingo 1.6 HDi 90 16V [9HX(DV6ATED4)] 04.2008-

CITROEN C4 Picasso 1.6 Blue HDi 115 [BHX(DV6FC)] 02.2013-

CITROEN Xsara 1.4 HDi [8HX(DV4TD)] 01.2003-03.2005

CITROEN Berlingo 1.6 Blue HDi 75 [9HN(DV6ETED)] 07.2010-

CITROEN Xsara 1.4 HDi [8HX(DV4TD)] 01.2003-08.2005

CITROEN Berlingo 1.6 HDi 90 16V [9HX(DV6AUTED4)] 04.2008-

CITROEN Berlingo 1.6 Blue HDi 75 [BHW(DV6FE)] 07.2010-

CITROEN Berlingo 1.6 Blue HDi 75 [BHW(DV6FE)] 06.2018-

CITROEN Berlingo 1.6 HDi 92 [9HJ(DV6DTEDM)] 11.2009-12.2010

CITROEN Nemo 1.4 HDi [8HS(DV4TED)] 02.2008-

CITROEN Berlingo 1.6 HDi 92 [9HJ(DV6DTEDM)] 07.2010-12.2017

CITROEN Berlingo 1.6 HDi 92 [9HP(DV6DTED)] 11.2009-12.2010

CITROEN C5 1.6 HDi [9HY(DV6TED4)] 09.2004-01.2008

CITROEN Nemo 1.4 HDi [8HS(DV4TED)] 04.2009

CITROEN C4 Cactus 1.6 Blue HDi 100 [BHY(DV6FD)] 09.2014-

CITROEN DS3 1.4 HDi 70 [8HP(DV4C)] 04.2010-07.2015

CITROEN Berlingo Multispace 1.6 Blue HDi 100 [BHY(DV6FD)] 12.2014-

CITROEN C5 1.6 HDi [9HZ(DV6TED4)] 09.2004-01.2008

CITROEN C4 Cactus 1.6 HDi 90 [9HJ(DV6DTEDM)] 09.2014-

CITROEN Berlingo Multispace 1.6 Blue HDi 120 [BHZ(DV6FC)] 12.2014-

CITROEN DS3 1.4 HDi 70 [8HR(DV4C)] 04.2010-07.2015

CITROEN Berlingo Multispace 1.6 Blue HDi 75 [9HN(DV6ETED)] 04.2008-

CITROEN Berlingo Multispace 1.6 Blue HDi 75 [BHW(DV6FE)] 04.2008



DS DS 3 1.4 HDi 70 [8HP(DV4C)] 07.2015-12.2016

DS DS 3 1.4 HDi 70 [8HR(DV4C)] 07.2015-12.2016

DS DS 3 1.6 Blue HDi 100 [BHY(DV6FD)] 04.2015-07.2019

DS DS 3 1.6 Blue HDi 100 [BHY(DV6FD)] 07.2015-07.2019

DS DS 3 1.6 Blue HDi 75 [BHW(DV6FE)] 07.2015-07.2019



FIAT Scudo 2.0 D Multijet [DW10BTED4] 01.2007-03.2016

FIAT Scudo 2.0 D Multijet [RH02] 05.2011-03.2016

FIAT Scudo 2.0 D Multijet [RHG] 01.2007-03.2016

FIAT Scudo 2.0 D Multijet [RHK] 01.2007-03.2016

FIAT Scudo 2.0 D Multijet [RHR] 01.2007-03.2016

FIAT Scudo 1.6 D Multijet [9H07(DV6UC)] 02.2011-03.2016

FIAT Scudo 1.6 D Multijet [9HM(DV6UC)] 02.2011-03.2016

FIAT Scudo 1.6 D Multijet [9HU] 01.2007-03.2016



OPEL Combo 1.6 D [B16DT(DV6FD)] 06.2018-

OPEL Combo 1.6 D [B16DTL(DV6FE)] 06.2018

OPEL Combo Life 1.5 [D15DT(DV5RD)] 06.2018-

OPEL Combo Life 1.5 [D15DTH(DV5RC)] 06.2018-

OPEL Combo Life 1.5 [D15DTL(DV5RE)] 06.2018-

OPEL Combo Life 1.5 [YHY(DV5RCF)] 06.2018-

OPEL Combo Tour 1.5 [D15DT(DV5RD)] 06.2018-

OPEL Combo Tour 1.5 [D15DTH(DV5RC)] 06.2018-

OPEL Combo 1.5 D [D15DT(DV5RD)] 08.2018-

OPEL Combo Tour 1.5 [D15DTL(DV5RE)] 06.2018-

OPEL Combo 1.5 D [D15DTH(DV5RC)] 08.2018-

OPEL Combo Tour 1.5 [YHY(DV5RCF)] 06.2018-

OPEL Combo 1.5 D [D15DTL(DV5RE)] 08.2018-

OPEL Combo 1.5 D [YHY(DV5RCF)] 08.2018



PEUGEOT 206 1.6 HDi 110 [9HY(DV6TED4)] 05.2004-02.2007

PEUGEOT 207 1.6 HDi [9HV(DV6TED4BU)] 06.2007-12.2012

PEUGEOT 307 1.6 HDi 90 [9HX(DV6AUTED4)] 04.2005-04.2008

PEUGEOT Partner Tepee 1.6 HDi 75 [BHW(DV6FE)] 06.2008-12.2018

PEUGEOT 206 1.6 HDi 110 [9HZ(DV6TED4)] 05.2004-

PEUGEOT 308 1.6 HDi [9HV(DV6TED4B)] 09.2007-10.2014

PEUGEOT 206 1.6 HDi 110 [9HZ(DV6TED4)] 05.2004-02.2007

PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 02.2006-10.2013

PEUGEOT 308 1.6 HDi [9HV(DV6TED4BU)] 09.2007-10.2014

PEUGEOT Partner 1.6 HDi 16V [9HS(DV6TED4BU)] 04.2008-

PEUGEOT Partner Tepee 1.6 HDi 90 [9HJ(DV6DTEDM)] 04.2010-

PEUGEOT 206 1.6 HDi 110 [9HZ(DV6TED4)] 04.2005-02.2007

PEUGEOT 407 1.6 HDi 110 [9HY(DV6TED4)] 05.2004-12.2010

PEUGEOT Partner 1.6 HDi 16V [9HS(DV6TED4BU)] 01.2009-

PEUGEOT Partner Tepee 1.6 HDi 90 [9HP(DV6DTED)] 04.2010-

PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 04.2007-10.2012

PEUGEOT 308 1.6 HDi [9HX(DV6ATED4)] 09.2007-10.2014

PEUGEOT 1007 1.4 HDi [8HX(DV4TD)] 04.2005-

PEUGEOT Partner 1.6 HDi 16V [9HX(DV6ATED4)] 01.2009-

PEUGEOT 308 1.6 HDi [9HX(DV6ATED4)] 01.2008-12.2011

PEUGEOT 407 1.6 HDi 110 [9HZ(DV6TED4)] 05.2004-12.2010

PEUGEOT 107 1.4 HDi [8HT(DV4TD)] 06.2005-05.2014

PEUGEOT Expert 1.5 Blue HDi 100 [YHR(DV5RUCd)] 06.2018-

PEUGEOT Partner 1.6 HDi 16V [9HX(DV6AUTED4)] 04.2008-

PEUGEOT 207 1.6 HDi [9HX(DV6ATED4)] 06.2007-12.2012

PEUGEOT 208 1.4 HDi [8HP(DV4C)] 03.2012-12.2019

PEUGEOT 308 1.5 Blue HDi 100 [YHY(DV5RD)] 04.2018-06.2021

PEUGEOT 1007 1.4 HDi [8HZ(DV4TD)] 04.2005-

PEUGEOT 308 1.5 Blue HDi 100 [YHY(DV5RD)] 05.2018-06.2021

PEUGEOT Bipper 1.4 HDi [8HS(DV4TED)] 02.2008-

PEUGEOT Expert 1.6 Blue HDi 115 [BHX(DV6FCU)] 04.2016-

PEUGEOT Partner 1.6 HDi 75 [9HK(DV6ETEDM)] 07.2011-

PEUGEOT 206 1.4 HDi [8HX(DV4TD)] 09.2001-03.2009

PEUGEOT Expert 1.6 Blue HDi 95 [BHS(DV6FDU)] 04.2016-

PEUGEOT Partner 1.6 Blue HDi 100 [BHY(DV6FD)] 04.2015-

PEUGEOT 208 1.4 HDi [8HR(DV4C)] 03.2012-12.2019

PEUGEOT Expert 1.6 Blue HDi 95 [BHV(DV6FDU)] 04.2016-

PEUGEOT Partner 1.6 Blue HDi 100 [BHY(DV6FD)] 09.2018-

PEUGEOT Partner 1.6 HDi 75 [9HN(DV6ETED)] 07.2011-

PEUGEOT 206 1.4 HDi [8HX(DV4TD)] 07.2002-02.2007

PEUGEOT Partner 1.6 Blue HDi 100 4x4 [BHY(DV6FD)] 04.2015-

PEUGEOT Rifter 1.5 Blue HDi 100 [YHT(DV5RCF)] 09.2018-

PEUGEOT Partner 1.6 Blue HDi 120 [BHZ(DV6FC)] 04.2015-

PEUGEOT Rifter 1.5 Blue HDi 100 [YHY(DV5RD)] 09.2018-

PEUGEOT 208 1.4 HDi 68 [8HR(DV4C)] 02.2013-12.2019

PEUGEOT 308 1.6 HDi 115 [9HC(DV6C)] 09.2013-06.2021

PEUGEOT Bipper Tepee 1.4 HDi [8HS(DV4TED)] 04.2008-

PEUGEOT Partner 1.6 HDi 75 [9HW(DV6BTED4)] 08.2005-07.2008

PEUGEOT 206 1.4 HDi [8HX(DV4TD)] 09.2002-02.2007

PEUGEOT Partner 1.6 Blue HDi 75 [9HK(DV6ETEDM)] 07.2011-

PEUGEOT Rifter 1.5 Blue HDi 130 [YHZ(DV5RC)] 09.2018-

PEUGEOT 207 1.4 HDi [8HR(DV4C)] 02.2006-12.2015

PEUGEOT 308 1.6 HDi 115 [9HC(DV6C)] 03.2014-06.2021

PEUGEOT Partner 1.6 Blue HDi 75 [9HN(DV6ETED)] 07.2011-

PEUGEOT Rifter 1.5 Blue HDi 75 [YHW(DV5RE)] 09.2018-

PEUGEOT Partner 1.6 HDi 75 [BHW(DV6FE)] 07.2011-

PEUGEOT Partner 1.6 Blue HDi 75 [BHW(DV6FE)] 07.2011-

PEUGEOT 207 1.4 HDi [8HR(DV4C)] 04.2007-

PEUGEOT 206 1.4 HDi [8HZ(DV4TD)] 09.2001-03.2009

PEUGEOT Partner 1.6 Blue HDi 75 [BHW(DV6FE)] 09.2018-

PEUGEOT Partner 1.6 HDi 90 [9HJ(DV6DTEDM)] 04.2010-

PEUGEOT 307 1.4 HDi [8HX(DV4TD)] 10.2001-06.2005

PEUGEOT 207 1.6 HDi [9HZ(DV6TED4)] 06.2007-12.2012

PEUGEOT 208 1.6 Blue HDi 100 [BHY(DV6FD)] 01.2015-12.2019

PEUGEOT 308 1.6 HDi 115 [BHX(DV6FC)] 09.2013-06.2021

PEUGEOT Partner 1.6 HDi 90 [9HP(DV6DTED)] 04.2010-

PEUGEOT Partner 1.6 HDi 90 [9HX(DV6ATED4)] 08.2005-12.2015

PEUGEOT 208 1.6 Blue HDi 100 [BHY(DV6FD)] 06.2015-12.2019

PEUGEOT 207 1.4 HDi [8HZ(DV4TD)] 02.2006-12.2015

PEUGEOT 307 1.4 HDi [8HZ(DV4TD)] 03.2002-06.2005

PEUGEOT 208 1.6 Blue HDi 75 [9HK(DV6ETEDM)] 01.2013-12.2019

PEUGEOT Partner 1.6 HDi 92 [9HJ(DV6DTEDM)] 11.2009-12.2010

PEUGEOT 308 1.6 HDi 115 [BHX(DV6FC)] 03.2014-06.2021

PEUGEOT 206 1.4 HDi eco 70 [8HX(DV4TD)] 09.2001-04.2009

PEUGEOT 208 1.6 Blue HDi 75 [BHW(DV6FE)] 01.2013-12.2019

PEUGEOT Partner 1.6 HDi 92 [9HP(DV6DTED)] 11.2009-12.2010

PEUGEOT 208 1.6 Blue HDi 75 [BHW(DV6FE)] 04.2015-12.2019

PEUGEOT 206 1.4 HDi eco 70 [8HZ(DV4TD)] 09.2001-04.2009

PEUGEOT 207 1.4 HDi [8HZ(DV4TD)] 04.2007-

PEUGEOT 308 1.6 Blue HDi 115 [9HC(DV6C)] 09.2013-06.2021

PEUGEOT 308 1.6 HDi 115 [BHZ(DV6FC)] 09.2013-06.2021

PEUGEOT 308 1.6 Blue HDi 115 [9HC(DV6C)] 03.2014-06.2021

PEUGEOT 308 1.6 Blue HDi 115 [BHX(DV6FC)] 09.2013-06.2021

PEUGEOT 206 1.4 HDi eco 70 [8HZ(DV4TD)] 09.2008-

PEUGEOT 308 1.6 HDi 115 [BHZ(DV6FC)] 03.2014-06.2021

PEUGEOT 308 1.6 Blue HDi 115 [BHX(DV6FC)] 03.2014-06.2021

PEUGEOT Expert 1.6 HDi 90 16V [9HU(DV6UTED4)] 01.2007-

PEUGEOT 308 1.6 Blue HDi 115 [BHZ(DV6FC)] 09.2013-06.2021

PEUGEOT 308 1.6 Blue HDi 115 [BHZ(DV6FC)] 03.2014-06.2021

PEUGEOT Expert 1.6 HDi 90 8V [9HH(DV6DUM)] 01.2007-

PEUGEOT Traveller 1.5 Blue HDi 100 [YHR(DV5RUCd)] 06.2018-

PEUGEOT Expert 1.6 HDi 90 8V [9HM(DV6UC)] 01.2007-

PEUGEOT Traveller 1.6 Blue HDi 115 [BHX(DV6FCU)] 04.2016-

PEUGEOT Traveller 1.6 Blue HDi 95 [BHS(DV6FDU)] 04.2016-

PEUGEOT Traveller 1.6 Blue HDi 95 [BHV(DV6FDU)] 04.2016-

PEUGEOT 301 1.6 Blue HDi 100 [BHY(DV6FD)] 04.2014-

PEUGEOT 307 1.6 HDi [9HV(DV6TED4B)] 04.2005-03.2009

PEUGEOT 208 1.6 HDi [9HJ(DV6DTEDM)] 03.2012-12.2019

PEUGEOT 307 1.6 HDi [9HV(DV6TED4B)] 04.2005-04.2008

PEUGEOT 301 1.6 HDi 90 [9HF(DV6DTED)] 11.2012-

PEUGEOT 301 1.6 HDi 90 [9HJ(DV6DTEDM)] 11.2012-

PEUGEOT 307 1.6 HDi [9HV(DV6TED4BU)] 04.2005-03.2009

PEUGEOT 307 1.6 HDi [9HV(DV6TED4BU)] 04.2005-04.2008

PEUGEOT 208 1.6 HDi [9HP(DV6DTED)] 03.2012-12.2019

PEUGEOT 2008 1.4 HDi [8HR(DV4C)] 06.2013-

PEUGEOT Partner Tepee 1.6 Blue HDi 100 [BHY(DV6FD)] 12.2014-

PEUGEOT 307 1.6 HDi [9HX(DV6ATED4)] 04.2005-03.2009

PEUGEOT 307 1.6 HDi [9HX(DV6ATED4)] 04.2005-04.2008

PEUGEOT Partner Tepee 1.6 Blue HDi 75 [9HK(DV6ETEDM)] 06.2008-12.2018

PEUGEOT 208 1.6 HDi 75 [9HK(DV6ETEDM)] 01.2013-12.2019

PEUGEOT 308 1.6 e-HDi 115 [9HC(DV6C)] 03.2015-06.2021

PEUGEOT Partner Tepee 1.6 Blue HDi 75 [9HN(DV6ETED)] 06.2008-12.2018

PEUGEOT 307 1.6 HDi [9HX(DV6AUTED4)] 04.2005-04.2008

PEUGEOT 207 1.6 HDi [9HP(DV6DTED)] 11.2009-12.2012

PEUGEOT Partner Tepee 1.6 Blue HDi 75 [BHW(DV6FE)] 06.2008-12.2018

PEUGEOT 207 1.6 HDi [9HP(DV6DTED)] 11.2009-12.2013

PEUGEOT 307 1.6 HDi 110 [9HY(DV6TED4)] 11.2003-12.2007

PEUGEOT Partner 1.6 HDi [9HF(DV6DTED)] 03.2013-

PEUGEOT 208 1.6 HDi 75 [BHW(DV6FE)] 01.2013-12.2019

PEUGEOT 208 1.6 HDi 92 [9HP(DV6DTED)] 03.2014-12.2019

PEUGEOT 307 1.6 HDi 110 [9HY(DV6TED4)] 02.2004-03.2009

PEUGEOT 307 1.6 HDi 110 [9HY(DV6TED4)] 02.2004-04.2008

PEUGEOT 307 1.6 HDi 110 [9HZ(DV6TED4)] 11.2003-12.2007

PEUGEOT 207 1.6 HDi [9HV(DV6TED4)] 02.2006-10.2013

PEUGEOT Partner 1.5 Blue HDi 100 [YHT(DV5RCF)] 07.2019-

PEUGEOT Partner 1.6 HDi [9HT(DV6BTED4)] 04.2008-

PEUGEOT 207 1.6 HDi [9HV(DV6TED4)] 06.2007-12.2012

PEUGEOT 308 1.6 HDi [9HJ(DV6DTEDM)] 11.2009-10.2014

PEUGEOT Expert Tepee 1.6 HDi 90 16V [9HU(DV6UTED4)] 01.2007-03.2016

PEUGEOT Partner 1.5 Blue HDi 100 [YHY(DV5RD)] 07.2019-

PEUGEOT 307 1.6 HDi 110 [9HZ(DV6TED4)] 02.2004-03.2009

PEUGEOT 307 1.6 HDi 110 [9HZ(DV6TED4)] 02.2004-04.2008

PEUGEOT Partner 1.5 Blue HDi 130 [YHZ(DV5RC)] 09.2018-

PEUGEOT Partner Tepee 1.6 HDi 16V [9HV(DV6TED4B)] 04.2008-

PEUGEOT 207 1.6 HDi [9HV(DV6TED4B)] 02.2006-10.2013

PEUGEOT Partner 1.6 HDi [9HT(DV6BUTED4)] 04.2008-

PEUGEOT Partner 1.5 Blue HDi 75 [YHW(DV5RE)] 07.2019-

PEUGEOT 307 1.6 HDi 90 [9HV(DV6TED4B)] 04.2005-04.2008

PEUGEOT 207 1.6 HDi [9HV(DV6TED4B)] 06.2007-12.2012

PEUGEOT Partner Tepee 1.6 HDi 75 [9HK(DV6ETEDM)] 06.2008-12.2018

PEUGEOT 308 1.6 HDi [9HP(DV6DTED)] 11.2009-10.2014

PEUGEOT 307 1.6 HDi 90 [9HV(DV6TED4BU)] 04.2005-04.2008

PEUGEOT 207 1.6 HDi [9HV(DV6TED4BU)] 02.2006-10.2013

PEUGEOT Partner 1.6 HDi [9HW(DV6BTED4)] 04.2008-

PEUGEOT 307 1.6 HDi 90 [9HX(DV6ATED4)] 04.2005-04.2008

PEUGEOT Partner Tepee 1.6 HDi 75 [9HN(DV6ETED)] 06.2008-12.2018



TOYOTA Proace 1.6 D [3WZ-TV(DV6UC)] 06.2013-03.2016

TOYOTA Aygo 1.4 D-4D [2W-ZTV] 07.2005-08.2010

Démarreur Magneti-Marelli MRS80180

Référence : S3012

Référence 0E : D7E27

EAN : 5901259421743

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 0.85

Rotation du demarreur CW

Taille A [ mm ] 64.50

Taille B [ mm ] -2.00

Nombre de dents [ qty. ] 8

Nombre de dents (s'insère dans) [ qty. ] 8

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 3

L.1 [ mm ] 169.00

O.1 [ mm ] 65.00

O.2 [ mm ] 105.00

O.3 [ mm ] 75.00

C.1 [ mm ] M10x1.5

C.2 [ mm ] M10x1.5

C.3 [ mm ] M10x1.5

Balais charbons : PSX155

Références compatibles :

0986022810BOSCH

F000CD0202BOSCH

F000CD0203BOSCH

F000CD0A02BOSCHListe

F000CDO202BOSCH

113932CARGO

DRS3948DELCO

DS5058DELCO

RAS30159DELCO

8EA012527-471HELLA

8EA738081-001HELLA

11.139.450ISKRA / LETRIKA

AZE1245ISKRA / LETRIKA

IS9442ISKRA / LETRIKA

944280801800MAGNETI MARELLI

MRS80180MAGNETI MARELLI

72735708MAHLE

MS80MAHLE

M000T46371MITSUBISHI

M000T46371ZTMITSUBISHI

M0T46371MITSUBISHI

M0T46371ZTMITSUBISHI

23300-00Q1LNISSAN

23300-00QAXNISSAN

23300-1105RNISSANListe

23300-AZ71ANISSAN

2330000QAXNISSAN

23300AZ71ANISSAN

8200781939PEUGEOT

8200815079CPEUGEOT

8200815083PEUGEOT

2330000Q1ARENAULT

233004003RENAULT

233004003RRENAULT

570558083RENAULT

6001549012RENAULT

7711135335RENAULT

7711497421RENAULT

7711497547RENAULT

8200182178RENAULT

8200266777RENAULTListe

8200266777ARENAULT

8200266777BRENAULTListe

8200266777CRENAULT

8200266777DRENAULT

8200781943ARENAULT

438163VALEOListe

458179VALEOListe

726064VALEO

D7E27VALEOListe

D7E47VALEOListe

D7E48VALEOListe

FS10B3VALEOListe

FS10E3VALEOListe

TS10E3VALEOListe

TS10P3VALEO

PRSS0143EFFE

STRS0143EFFE

CGB-23948AINDE

ANM12226XANDEL

ASM1491APEC

STA0288RBOVEZ

CST15136ASCASCO

CST15136GSCASCO

3347CEVAM

7711135849DACIA

8200815079DACIAListe

11963EAI

STR0030ELECTROLOG

STR5379ELECTROLOG

STR79684ELECTROLOG

25-4155ELSTOCK

220399ERA

CS1276HC PARTS

42438163HERTH+BUSS

STM1276KRAUF

STV1276KRAUF

STV6276KRAUF

STV7276KRAUF

101174KUHNER

101276KUHNER

101276RKUHNER

101276VKUHNER

331401LOGISTIK

LRS02483LUCAS

LRS2483LUCAS

NPANSM1491NAPA

88212113POWERMAX

570.522.083.000PSH

570.522.083.500PSH

570.522.083.505PSH

570.522.083.506PSH

20479631BNREAL

20479631OEREAL

STM955ROLLCO

6015136.0SANDO

6015136.1SANDO

S12VA0061A2SIDAT

MAV4740SIOM

STX200019STARDAX

STX200019RSTARDAX

STX200023STARDAX

STX200023RSTARDAX

STX200058STARDAX

STX200058RSTARDAX

32566NWAI / TRANSPO

32566RWAI / TRANSPO

STR54060WOODAUTO

VAL438110WOODAUTO

VAL438163WOODAUTO



Convient pour :

DACIA Dokker 1.6 16V [K7M828] 11.2012-

DACIA Duster 1.6 16V [K4M696] 04.2010-

DACIA Logan 1.6 BiFuel Express BiFuel [K7M800] 05.2010-

DACIA Logan 1.4 [K7J710] 02.2007-

DACIA Dokker 1.6 LPG [K7M812] 11.2013-

DACIA Logan 1.6 Flexfuel [K7M718] 05.2010-

DACIA Duster 1.6 16V 4x4 [K4M606] 06.2010-

DACIA Logan 1.4 i [K7J710] 09.2004-

DACIA Dokker 1.6 LPG [K7M828] 11.2013-

DACIA Logan 1.6 i [K7M710] 09.2004-

DACIA Duster 1.6 16V 4x4 [K4M606] 04.2011-

DACIA Logan 1.4 MPi [K7J714] 02.2006-

DACIA Logan 1.6 LPG [K7M710] 11.2008-

DACIA Duster 1.6 16V Flex [K4M696] 04.2011-

DACIA Logan 1.6 MPi [K7M800] 05.2010-

DACIA Duster 1.6 16V Hi-Flex [K4M696] 04.2011-

DACIA Logan 1.6 Mpi [K7M800] 05.2010-

DACIA Duster 1.6 16V LPG [K4M696] 04.2011-

DACIA Dokker Express 1.6 16V [K7M812] 12.2012-

DACIA Dokker Express 1.6 16V [K7M828] 12.2012-

DACIA Logan MCV 1.6 [K7M718] 05.2010-

DACIA Logan MCV 1.6 [K7M812] 06.2013-

DACIA Sandero 1.6 [K7M812] 11.2012-

DACIA Sandero 1.6 [K7M818] 05.2010-10.2012

DACIA Sandero 1.6 [K7M818] 01.2011-12.2012

DACIA Sandero 1.6 16V [K4M690] 07.2011-

DACIA Lodgy 1.6 [K7MA8] 03.2012-

DACIA Sandero 1.6 Flexfuel [K4M690] 01.2011-

DACIA Sandero 1.6 Flexfuel [K4M694] 01.2011-

DACIA Lodgy 1.6 LPG [K7M812] 11.2013-

DACIA Logan 1.6 [K7M710] 02.2007-

DACIA Sandero 1.6 Flexfuel [K4M696] 01.2011-

DACIA Lodgy 1.6 LPG [K7M828] 11.2013

DACIA Sandero 1.4 [K7J710] 06.2008-

DACIA Sandero 1.6 Mpi [K7M800] 05.2010-

DACIA Logan 1.6 16V Flex [K4M696] 01.2011-

DACIA Sandero 1.4 MPi LPG [K7J714] 01.2009-

DACIA Logan 1.6 16V Flexifuel [K4M690] 11.2009-

DACIA Logan 1.6 16V Flexifuel [K4M694] 11.2009-

DACIA Logan 1.6 16V MCV [K4M690] 02.2007-

DACIA Duster 1.6 16V [K4M690] 04.2010-

DACIA Dokker 1.6 16V [K7M812] 11.2012-

DACIA Logan 1.6 16V MCV [K4M696] 02.2007



NISSAN Kubistar 1.6 16V [K4M752] 08.2003



RENAULT Megane 1.6 FlexFuel [K4M788] 01.2007-

RENAULT Megane 1.6 16V [K4M760] 11.2002-

RENAULT Megane 1.6 Hi-Flex 03.2006-

RENAULT Grand Kangoo 1.6 LPG [K4M834] 12.2008-

RENAULT Kangoo 1.6 16V [K4M750] 06.2001-

RENAULT Megane 1.6 16V [K4M760] 01.2007-

RENAULT Megane 1.6 16V [K4M761] 01.2007-

RENAULT Fluence 1.6 16V [K4M838] 02.2010-

RENAULT Kangoo 1.6 16V [K4M752] 06.2001-

RENAULT Megane 1.6 16V [K4M762[RA]] 05.2006-10.2011

RENAULT Fluence 1.6 16V [K4M839] 02.2010-

RENAULT Megane 1.6 16V [K4M812] 05.2005-

RENAULT Kangoo 1.6 16V [K4M753] 06.2001-

RENAULT Fluence 1.6 LPG 16V [K4M839] 01.2012-

RENAULT Megane 1.6 16V [K4M812] 01.2007-

RENAULT Scenic 1.4 [K4J730] 06.2003-

RENAULT Clio 1.6 Hi-Flex [K4M748] 01.2005-02.2010

RENAULT Megane 1.6 16V [K4M813] 01.2007-

RENAULT Scenic 1.4 [K4J740] 06.2003-

RENAULT Kangoo 1.6 16V [K4M830] 02.2008-

RENAULT Megane 1.6 16V [K4M838] 10.2015-

RENAULT Kangoo 1.6 16V [K4M831] 02.2008-

RENAULT Megane 1.6 16V [K4M848] 05.2009-

RENAULT Megane 1.6 16V [K4MC813] 01.2007-

RENAULT Megane 1.6 16V [K4MD812] 01.2007-

RENAULT Kangoo 1.6 16V Bivalent [K4M850] 06.2005-

RENAULT Scenic 1.6 16V [K4M812] 01.2007-

RENAULT Kangoo 1.6 16V Express [K4M830] 02.2008-

RENAULT Megane 1.6 [K4M760] 08.2003-

RENAULT Scenic 1.6 16V [K4M9766] 01.2007-

RENAULT Grand Scenic 1.6 [K4M761] 04.2004-

RENAULT Megane 1.6 [K4M760] 09.2003-

RENAULT Scenic 1.6 16V [K4MC813] 01.2007-

RENAULT Megane 1.6 [K4M761] 08.2003-

RENAULT Megane 1.6 16V Flex-Fuel [K4M762] 02.2008-

RENAULT Grand Scenic 1.6 [K4M782] 04.2004-

RENAULT Kangoo 1.6 16V Express LPG [K4M834] 02.2008-

RENAULT Megane 1.6 [K4M761] 09.2003-

RENAULT Megane 1.6 [K4M762] 05.2005-

RENAULT Grand Scenic 1.6 [K4M788] 06.2006-

RENAULT Logan 1.4 [K7J710] 09.2004-

RENAULT Kangoo 1.6 16V Hi-Flex [K4M834] 02.2008-

RENAULT Kangoo 1.6 16V Hi-Flex [K4M850] 02.2008-

RENAULT Megane 1.4 [K4J730] 08.2003-

RENAULT Kangoo 1.6 Be Bop [K4M830] 02.2009-

RENAULT Megane 1.4 [K4J730] 09.2003-

RENAULT Megane 1.4 [K4J732] 09.2003-

RENAULT Scenic 1.6 i 16V [K4M761] 06.2003-

RENAULT Megane 1.4 [K4J740] 08.2003-

RENAULT Megane 1.6 16V 01.2010-08.2015

RENAULT Megane 1.4 [K4J740] 09.2003-

RENAULT Scenic 1.6 i 16V [K4M782] 06.2003-

RENAULT Laguna 1.6 16V [K4M716] 02.2005-

RENAULT Logan 1.6 [K4M690] 04.2007-

RENAULT Megane 1.4 16V [K4J714] 03.1999-08.2003

RENAULT Megane 1.4 16V [K4J730] 11.2002-

RENAULT Logan 1.6 [K4M697] 04.2007-

RENAULT Megane 1.4 16V [K4J732] 10.2003-

RENAULT Megane 1.4 16V [K4J740] 11.2002

RENAULT Logan 1.6 [K7M710] 09.2004-

RENAULT Sandero 1.4 [K7J710] 02.2009-

RENAULT Logan 1.6 Express 04.2007-

RENAULT Logan 1.6 Flex 11.2013-

RENAULT Sandero 1.6 [K7M710] 12.2007-

RENAULT Sandero 1.6 [K7M710] 02.2009-

RENAULT Sandero 1.6 [K7M718] 11.2010-

RENAULT Sandero 1.6 Hi-Flex 11.2007-

RENAULT Sandero Stepway 1.6 Flex [K4M766] 08.2008-

RENAULT Thalia 0.9 Tce 04.2014-

Démarreur Magneti-Marelli 063720566010

Référence : S3009

Référence 0E : D6RA661

EAN : 5901259421705

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.10

Rotation du demarreur CW

Taille B [ mm ] -5.00

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9. 10

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 3

L.1 [ mm ] 213.00

O.1 [ mm ] 120.00

O.2 [ mm ] 85.00

O.3 [ mm ] 85.00

C.1 [ mm ] M10x1.5

C.2 [ mm ] M10x1.5

C.3 [ mm ] M10x1.5

Balais charbons : PSX148-149

Références compatibles :

0001107019BOSCHListe

0001107063BOSCHListe

0986016530BOSCH

111130CARGO

1516776RDAF

8000006DELCOListe

DRS3113DELCO

DS4223DELCO

RAS34224DELCO

1319121080FIAT

71716554FIAT

71716563FIAT

71723362FIAT

9613015980FIAT

961323028FIAT

9613230280FIAT

9615519880FIAT

9619310280FIAT

9624291380FIAT

96253382680FIAT

9625382580FIAT

9827007180FIAT

K1319121080FIAT

K9613015980FIAT

K9613230280FIAT

K9615519880FIAT

K9619310280FIAT

K9624291380FIAT

431HELLA

8EA726191-001HELLA

11.139.402ISKRA / LETRIKA

AZD3513ISKRA / LETRIKA

IS9402ISKRA / LETRIKAListe

063720566010MAGNETI MARELLI

943251488010MAGNETI MARELLI

944280165300MAGNETI MARELLI

MQS566MAGNETI MARELLI

MRS16530MAGNETI MARELLI

MSR670MAGNETI MARELLI

72735881MAHLE

MS 253MAHLE

MS253MAHLE

M000T86081MITSUBISHIListe

M0T86081MITSUBISHIListe

19D10239SCPEUGEOT

555838PEUGEOT

5802-38PEUGEOT

5802-39PEUGEOT

5802-79PEUGEOT

5802-88PEUGEOT

5802-CSPEUGEOT

5802-E1PEUGEOT

5802-J0PEUGEOT

5802-L0PEUGEOT

5802-L6PEUGEOT

5802-P3PEUGEOT

5802-P9PEUGEOT

5802-Q2PEUGEOT

5802-R6PEUGEOT

5802-R8PEUGEOT

5802-T6PEUGEOT

58020PEUGEOT

580200000PEUGEOT

580238PEUGEOT

580239PEUGEOT

580279PEUGEOT

580288PEUGEOT

5802C0PEUGEOT

5802C1PEUGEOT

5802CSPEUGEOT

5802CYPEUGEOT

5802E4PEUGEOT

5802ESPEUGEOT

5802ETPEUGEOT

5802F0PEUGEOT

5802F4PEUGEOT

5802F5PEUGEOT

5802FKPEUGEOT

5802H4PEUGEOT

5802J0PEUGEOT

5802L0PEUGEOT

5802L6PEUGEOT

5802M7PEUGEOT

5802P3PEUGEOT

5802P4PEUGEOT

5802P9PEUGEOT

5802Q2PEUGEOT

5802R6PEUGEOT

5802R7PEUGEOT

5802R8PEUGEOT

5802T6PEUGEOT

5802W5PEUGEOT

5802W8PEUGEOT

91507477PEUGEOT

91508523PEUGEOT

91508524PEUGEOT

91508525PEUGEOT

91508644PEUGEOT

95041033PEUGEOT

95607229PEUGEOT

95607229RPEUGEOT

95656487PEUGEOT

95667754PEUGEOT

95667754RPEUGEOT

95667758PEUGEOT

95667758RPEUGEOT

96014184PEUGEOT

96035033PEUGEOT

96035033RPEUGEOT

96035034PEUGEOT

9603503480PEUGEOT

96102058PEUGEOT

96102058RPEUGEOT

96147592PEUGEOT

96155198PEUGEOT

96253825PEUGEOT

9648111680PEUGEOT

9656299480PEUGEOT

20513049PRESTOLITE

66925156PRESTOLITE

432636VALEOListe

433303VALEO

436064VALEOListe

436065VALEOListe

455512VALEOListe

726017VALEO

726055VALEO

D6RA16VALEOListe

D6RA161VALEOListe

D6RA23VALEOListe

D6RA38VALEOListe

D6RA381VALEO

D6RA66VALEOListe

D6RA661VALEOListe

D6RAP276VALEO

STRL1233EFFE

CGB-23113AINDE

ANM15333XANDEL

ASM1570APEC

AES7149AUTOELECTRO

STA0046RBOVEZ

CST15101CASCO

CST15101ASCASCO

CST15101ESCASCO

CST15101GSCASCO

CST15101OSCASCO

CST15101RSCASCO

CST15238ASCASCO

3600CEVAM

STR0033ELECTROLOG

STR79644ELECTROLOG

25-1198ELSTOCK

220098ERA

220163ERA

SG0404GHIBAUDI

GS432636-AGPARTS

CS566HC PARTS

42016530HERTH+BUSS

STB0566KRAUF

STV0566KRAUF

10326KUHNER

10566KUHNER

10566VKUHNER

254694VKUHNER

330478LOGISTIK

332093LOGISTIK

LRS00749LUCAS

LRS749LUCAS

NPANSM1570NAPA

88212488POWERMAX

220.510.093PSH

220.510.093.000PSH

220.510.093.461PSH

220.510.093.505PSH

220.510.093.508PSH

220.510.093.605PSH

20479101BNREAL

20479101OEREAL

RNL1653RNL

RNLD6RA109RNL

STM502ROLLCO

6015101SANDO

S12VA0071A2SIDAT

MAV3230SIOM

MAV4530SIOM

STX200033STARDAX

STX200033RSTARDAX

STX200043STARDAX

STX200043RSTARDAX

STX200061STARDAX

STX200061RSTARDAX

STX200111STARDAX

STX200111RSTARDAX

STX200312STARDAX

STX200312RSTARDAX

STX200326STARDAX

STX200334STARDAX

STX200516STARDAX

STX200516RSTARDAX

17701NWAI / TRANSPO

STR54002WOODAUTO

VAL432636WOODAUTO



Convient pour :

CITROEN Xantia 2.0 i [RFX(XU10J2C)] 01.1998-04.2003

CITROEN Evasion 2.0 i [RFU(XU10J2/C)] 06.1994-07.2002

CITROEN Xantia 2.0 i 16V [RFV(XU10J4R)] 06.1995-01.1998

CITROEN Berlingo 1.8 i [LFX(XU7JB)] 05.1997-

CITROEN Jumper 2.0 [RFW(XU10J2U)] 02.1994-04.2002

CITROEN Xsara 2.0 i 16V [RFS(XU10J4RS)] 02.1998-03.2005

CITROEN Evasion 2.0 Turbo [RGX(XU10J2TE)] 06.1994-07.2002

CITROEN Xantia 2.0 i 16V [RFV(XU10J4R)] 01.1998-04.2003

CITROEN Berlingo 1.8 i [LFX(XU7JB)] 08.1999-10.2002

CITROEN Jumper 2.0 [RFW(XU10J2U)] 03.1994-04.2002

CITROEN Berlingo 1.8 i 4WD [LFX(XU7JB)] 05.1997-

CITROEN Xantia 2.0 Turbo [RGX(XU10J2TE)] 06.1995-01.1998

CITROEN Jumper 2.0 [XU10J2] 04.2002-

CITROEN ZX 1.9 i [DKZ(XU9JA)] 03.1991-06.1997

CITROEN Xantia 2.0 Turbo [RGX(XU10J2TE)] 01.1998-04.2003

CITROEN Jumper 2.0 [XU10J2] 02.2003-

CITROEN Jumper 2.0 4x4 [RFW(XU10J2U)] 08.1996-04.2002

CITROEN Xsara 1.8 i [LFX(TU7JB)] 04.1997-09.2000

CITROEN Jumper 2.0 bivalent [XU10J2] 02.2003-

CITROEN Xsara 1.8 i [LFX(XU7JB)] 02.1998-09.2000

CITROEN Xsara 1.8 i [LFX(XU7JP)] 10.1997-09.2000

CITROEN BX 16 1.6 [171A] 06.1985-06.1988

CITROEN Xsara 1.8 i [LFZ(XU7JP)] 04.1997-09.2000

CITROEN Xsara 1.8 i [LFZ(XU7JP)] 10.1997-09.2000

CITROEN BX 16 1.6 [171B] 06.1985-06.1988

CITROEN ZX 1.6 i [BDY(XU5M)] 03.1991-06.1997

CITROEN Xsara 1.8 i [LFZ(XU7JP)] 02.1998-09.2000

CITROEN BX 16 1.6 [171C] 06.1985-06.1988

CITROEN Visa 1.6 GTi [180A(XU5J)] 01.1985-06.1986

CITROEN Xsara 1.8 i 16V [LFY(XU7JP4)] 04.1997-09.2000

CITROEN ZX 1.6 i [BDY(XU5M)] 10.1993-10.1997

CITROEN ZX 2.0 i 16V [RFT(XU10J4/Z)] 07.1992-10.1994

CITROEN Visa 1.6 GTi [B6D] 06.1986-03.1991

CITROEN XM 2.0 [R2A(XU102C)] 05.1989-04.1994

CITROEN Xsara 1.8 i 16V [LFY(XU7JP4)] 10.1997-09.2000

CITROEN ZX 1.6 i [BFZ(XU5JP)] 03.1991-06.1997

CITROEN XM 2.0 [RDZ(XU10MZ)] 11.1991-04.1994

CITROEN Xsara 1.8 i 16V [LFY(XU7JP4)] 02.1998-09.2000

CITROEN BX 16 1.6 [BDY(XU5M)] 05.1989-12.1994

CITROEN BX 16 1.6 [BDY(XU5M)] 05.1989-02.1993

CITROEN XM 2.0 [XU102C] 11.1991-04.1994

CITROEN ZX 1.6 i [BFZ(XU5JP)] 10.1993-10.1997

CITROEN XM 2.0 i [RDZ(XU10MZ)] 05.1989-04.1994

CITROEN XM 2.0 i [RFZ(XU10J2)] 05.1989-06.1994

CITROEN Xantia 1.6 i [BFZ(XU5JP)] 03.1993-01.1998

CITROEN BX 19 1.9 [D2A(XU92C)] 07.1986-05.1989

CITROEN XM 2.0 i [RFZ(XU10J2)] 11.1991-04.1994

CITROEN Evasion 1.8 [LFZ(XU7JP)] 05.1997-07.2002

CITROEN Xantia 1.6 i SX [XU5JP] 01.1998-03.2001

CITROEN XM 2.0 i 16V [RFV(XU10J4R)] 05.1994-10.2000

CITROEN Xantia 1.8 i [LFX(XU7JB)] 04.1997-01.1998

CITROEN Xsara 2.0 16V [RFS(XU10J4RS)] 04.1997-09.2000

CITROEN XM 2.0 i Turbo [RGY(XU10J2TE/Z)] 09.1992-06.1994

CITROEN Xantia 1.8 i [LFX(XU7JB)] 01.1998-04.2003

CITROEN Xsara 2.0 16V [RFV(XU10J4R)] 07.1998-09.2000

CITROEN ZX 1.8 i [LFZ(XU7JP)] 07.1992-06.1997

CITROEN BX 19 1.9 GTi [D6A(XU9J2)] 07.1986-02.1993

CITROEN Xantia 1.8 i [LFZ(XU7JP)] 03.1993-01.1998

CITROEN XM 2.0 Turbo [RGX(XU10J2TE)] 05.1994-10.2000

CITROEN ZX 1.8 i [LFZ(XU7JP)] 10.1993-10.1997

CITROEN Xantia 1.8 i [LFZ(XU7JP)] 06.1995-01.1998

CITROEN XM 2.0 Turbo [RGY(XU10J2TE/Z)] 09.1992-04.1994

CITROEN BX 19 1.9 GTi 4x4 [DKZ(XU9JA)] 06.1988-02.1993

CITROEN ZX 1.8 i 16V [LFY(XU7JP4)] 01.1996-06.1997

CITROEN ZX 1.8 i 16V [LFY(XU7JP4)] 01.1996-02.1998

CITROEN Xantia 1.8 i 16V [LFY(XU7JP4)] 06.1995-01.1998

CITROEN XM 2.0 Turbo [RGY(XU10J2TE/Z)] 05.1994-10.2000

CITROEN ZX 1.9 03.1991-09.1993

CITROEN Xantia 1.8 i 16V [LFY(XU7JP4)] 01.1998-04.2003

CITROEN Evasion 2.0 16V [RFV(XU10J4R)] 05.1998-04.2000

CITROEN Xantia 2.0 i [RFX(XU10J2C)] 03.1993-01.1998

CITROEN Xantia 2.0 i [RFX(XU10J2C)] 06.1995-01.1998





FIAT Ducato 2.0 4x4 [RFW] 11.1994-11.2001

FIAT Ducato 2.0 Bipower [RFL] 11.2002-

FIAT Ulysse 1.8 [LFW] 05.1997-08.2002

FIAT Ulysse 2.0 [RFU(XU10J2C)] 06.1994-08.2002

FIAT Ulysse 2.0 16V [RFV] 05.1998-09.2000

FIAT Ducato 2.0 [RFL] 04.2002-

FIAT Ducato 2.0 [RFL] 04.2002-07.2006

FIAT Ulysse 2.0 Turbo [RGX(XU10J2CTE)] 06.1994-08.2002

FIAT Ducato 2.0 [RFW(XU10J2U)] 03.1994-04.2002

FIAT Ducato 2.0 [RFW(XU10J2U)] 06.1998-04.2002



LANCIA Zeta 2.0 16V [RFV(XU10J4R)] 05.1998-07.2000

LANCIA Zeta 2.0 Turbo [RGX(XU10J2TE)] 05.1995-09.2002



PEUGEOT 405 1.6 [BDZ(XU5M)] 10.1988-08.1992

PEUGEOT 406 2.0 16V [RFV(XU10J4R)] 03.1997-12.2004

PEUGEOT 305 1.6 [BAZ(XU5CP)] 11.1986-12.1988

PEUGEOT 605 2.0 [RFZ(XU10J2Z)] 06.1989-09.1999

PEUGEOT 405 1.6 [BDZ(XU5M)] 10.1989-12.1992

PEUGEOT 605 2.0 16V [RFV(XU10J4R)] 07.1994-09.1999

PEUGEOT 305 1.9 [159(XU9S)] 10.1982-08.1985

PEUGEOT 405 1.6 [BDZ(XU5M)] 08.1992-10.1996

PEUGEOT 405 1.6 [BDZ(XU5M)] 08.1992-10.1995

PEUGEOT 305 1.9 [159(XU9S)] 09.1984-10.1987

PEUGEOT 605 2.0 Turbo [RGX(XU10J2TE)] 07.1991-09.1999

PEUGEOT 306 2.0 i XS [RFX(XU10J2)] 05.1993-05.2001

PEUGEOT 305 1.9 [DFZ(XU9J1)] 11.1986-12.1988

PEUGEOT 605 2.0 Turbo [RGY(XU10J2TE)] 07.1992-09.1999

PEUGEOT 306 2.0 ST [RFX(XU10J2)] 07.1994-05.2001

PEUGEOT 205 1.6 [B1A(XU51C)] 10.1987-09.1998

PEUGEOT 405 1.6 [BFZ(XU5JP)] 08.1992-05.1997

PEUGEOT 405 1.6 [BFZ(XU5JP)] 08.1992-10.1995

PEUGEOT 405 1.6 [BFZ(XU5JP)] 08.1992-10.1996

PEUGEOT 205 1.6 [B1E(XU51C)] 10.1987-09.1998

PEUGEOT 806 2.0 Turbo [RGX(XU10J2TE)] 06.1994-08.2002

PEUGEOT 205 1.6 [BDY(XU5M2Z)] 05.1990-09.1998

PEUGEOT 405 1.6 [XU52C] 01.1987-12.1992

PEUGEOT 205 1.6 [BDY(XU5M3Z)] 05.1990-09.1998

PEUGEOT 405 1.6 [XU5J] 10.1988-08.1992

PEUGEOT Boxer 2.0 i [RFW(XU10J2U)] 03.1994-04.2002

PEUGEOT 205 1.6 CJ [BDY(XU5M3Z)] 08.1992-12.1994

PEUGEOT Boxer 2.0 i [RFW(XU10J2U)] 06.1994-04.2002

PEUGEOT 405 1.8 [LFZ(XU7JP)] 08.1992-10.1995

PEUGEOT 405 2.0 [RFX(XU10J2)] 08.1992-10.1996

PEUGEOT 405 1.8 [LFZ(XU7JP)] 08.1992-10.1996

PEUGEOT 405 2.0 [RFX(XU10J2)] 08.1992-10.1995

PEUGEOT 205 1.6 CTi [180A(XU5J)] 04.1986-10.1990

PEUGEOT Boxer 2.0 i 4x4 [RFW(XU10J2U)] 08.1996-04.2002

PEUGEOT 205 1.6 GTi [180A(XU5J)] 10.1987-12.1989

PEUGEOT 405 2.0 4x4 [RFX(XU10J2)] 08.1992-10.1995

PEUGEOT 405 2.0 4x4 [RFX(XU10J2)] 08.1992-10.1996

PEUGEOT 306 1.8 [LFZ(XU7JP)] 05.1993-05.2001

PEUGEOT 406 1.6 [BFZ(XU5JP)] 11.1995-05.2004

PEUGEOT 306 1.8 [LFZ(XU7JP)] 03.1994-04.2002

PEUGEOT 406 1.8 [LFX(XU7JB)] 05.1997-05.2004

PEUGEOT 406 1.8 [LFX(XU7JB)] 05.1997-10.2004

PEUGEOT 205 1.9 CTi [DFZ(XU9J1)] 10.1987-12.1994

PEUGEOT 405 1.9 10.1988-08.1992

PEUGEOT 306 1.8 [LFZ(XU7JP)] 03.1997-04.2002

PEUGEOT 405 1.9 [D6A(XU9J2)] 07.1987-12.1993

PEUGEOT 406 1.8 16V [LFY(XU7JP4)] 11.1995-10.2000

PEUGEOT 306 1.8 16V [LFY(XU7JP4)] 03.1997-05.2001

PEUGEOT 306 1.8 16V [LFY(XU7JP4)] 03.1997-04.2002

PEUGEOT 205 1.9 GTi [D6B(XU9JA)] 10.1987-09.1998

PEUGEOT 406 1.8 16V [LFY(XU7JP4)] 10.1996-10.2000

PEUGEOT 205 1.9 GTi [DFZ(XU9J1)] 10.1987-07.1994

PEUGEOT 406 2.0 Turbo [RGX(XU10J2TE)] 04.1996-05.2004

PEUGEOT 306 1.8 16V [LFY(XU7JP4)] 07.2000-04.2002

PEUGEOT 205 1.9 GTi [DKZ(XU9JAZ)] 10.1987-10.1994

PEUGEOT 406 2.0 Turbo [RGX(XU10J2TE)] 10.1996-10.2004

PEUGEOT 405 1.6 10.1988-08.1992

PEUGEOT Expert 1.8 [LFZ(XU7JP)] 10.1996-09.2000

PEUGEOT 508 SW 1.6 HDi [9HD(DV6CTED)] 02.2012-

PEUGEOT 405 1.6 [B1E(XU51C)] 07.1987-06.1988

PEUGEOT 405 1.6 [B1E(XU51C)] 07.1987-12.1992

PEUGEOT Partner 1.8 [LFX(XU7JB)] 05.1997-

PEUGEOT 405 1.6 [B1E(XU51C)] 10.1988-08.1992

PEUGEOT 306 1.8 ST [LFZ(XU7JP)] 06.1994-05.2001

PEUGEOT 405 1.6 [BAZ(XU5CP)] 07.1987-06.1988

PEUGEOT 806 1.8 [LFW(XU7JP)] 07.1995-08.2002

PEUGEOT 405 1.6 [BAZ(XU5CP)] 10.1988-08.1992

PEUGEOT Boxer 2.5 i [RFW(XU10J2U)] 06.1994-04.2002

PEUGEOT 405 1.6 [BDY(XU5M2Z)] 07.1987-12.1992

PEUGEOT 405 1.6 [BDY(XU5M2Z)] 10.1988-08.1992

PEUGEOT 306 2.0 [RFV(XU10J4R)] 03.1997-05.2001

PEUGEOT 405 1.6 [BDY(XU5M2Z)] 08.1992-10.1996

PEUGEOT 405 1.6 [BDY(XU5M2Z)] 08.1992-10.1995

PEUGEOT 305 1.6 [171(XU5S)] 10.1982-06.1988

PEUGEOT 305 1.6 [171(XU5S)] 10.1982-06.1984

PEUGEOT 306 2.0 [RFX(XU10J2)] 01.1994-06.1997

PEUGEOT 306 2.0 [RFX(XU10J2)] 03.1994-04.2002

PEUGEOT 305 1.6 [171(XU5S)] 09.1983-06.1984

PEUGEOT 405 1.6 [BDY(XU5M3Z)] 10.1988-08.1992

PEUGEOT Boxer 2.0 [RFL(XU10J2U)] 04.2002-

PEUGEOT 305 1.6 [171(XU5S)] 07.1984-08.1987

PEUGEOT 305 1.6 [171(XU5S)] 07.1984-12.1987

PEUGEOT 405 1.6 [BDY(XU5M3Z)] 08.1992-10.1995

PEUGEOT 406 2.0 16V [RFR(DEW10J4)] 01.1999-10.2000

PEUGEOT 405 1.6 [BDY(XU5M3Z)] 08.1992-10.1996

PEUGEOT 306 2.0 16V [RFV(XU10J4R)] 03.1997-05.2001

PEUGEOT 806 2.0 [RFU(XU10J2)] 06.1994-08.2002

PEUGEOT 306 2.0 16V [RFV(XU10J4R)] 03.1997-04.2002

PEUGEOT 406 2.0 16V [RFV(XU10J4R)] 11.1995-05.2004

PEUGEOT 309 1.9 [D2B(XU9S)] 10.1985-07.1989

PEUGEOT 305 1.6 [B1A(XU51C)] 10.1982-07.1988

PEUGEOT 605 2.0 [R5A(XU102C)] 06.1989-09.1999

PEUGEOT 406 2.0 16V [RFV(XU10J4R)] 10.1996-10.2004

PEUGEOT 305 1.6 [B1A(XU51C)] 02.1986-12.1988

PEUGEOT 405 1.6 [BDZ(XU5M)] 07.1987-12.1992

PEUGEOT 806 2.0 16V [RFV(XU10J4R)] 05.1998-09.2000

PEUGEOT 605 2.0 [RDZ(XU10MZ)] 02.1990-09.1999

PEUGEOT 508 1.6 HDi [9HD(DV6CTED)] 02.2012

Démarreur Magneti-Marelli MSR5313

Référence : S3007

Référence 0E : D7E1

EAN : 5901259421675

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 0.85

Rotation du demarreur CW

Taille A [ mm ] 63.50

Taille B [ mm ] -1.00

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 2

Nombre de trous filetes [ qty. ] 1

L.1 [ mm ] 168.00

O.1 [ mm ] 105.00

C.1 [ mm ] M10x1.5

C.2 [ mm ] 11.00

Balais charbons : PSX155

Références compatibles :

0001116001BOSCHListe

0001116002BOSCH

0986017840BOSCH

F042200161BOSCH

F042202523BOSCH

111641CARGO

DRS7840DELCO

DS8950DELCO

RAS38951DELCO

8EA011610-031HELLA

8EA737351-001HELLA

6.0034.9IKA

11.131.088ISKRA / LETRIKA

AZE1225ISKRA / LETRIKAListe

IS1047ISKRA / LETRIKA

063721057010MAGNETI MARELLI

943253113010MAGNETI MARELLI

944280178400MAGNETI MARELLI

MRS17840MAGNETI MARELLI

MSR5313MAGNETI MARELLI

72735759MAHLE

MS131MAHLE

23300-00QAYNISSAN

2330000QAMNISSAN

2330000QAYNISSAN

5802X6PEUGEOT

20510143PRESTOLITE

7700864608RENAULTListe

7700865213RENAULT

7700867838RENAULT

82000369521ERENAULT

8200369521FRENAULT

864608RENAULT

867838RENAULT

867838864RENAULT

867838864608RENAULT

432685VALEOListe

455722VALEOListe

726003VALEO

D7E1VALEOListe

D7E39VALEOListe

TS8E6VALEOListe

TS8E6BVALEO

8111840VOLVOListe

STRL0803EFFE

STRS4993EFFE

CGB-27840AINDE

ANM10060XANDEL

ASM1574APEC

003-130013ASHIKA

AES1243AUTOELECTRO

NES1243AUTOELECTRO

STA0070RBOVEZ

STA0543RBOVEZ

CST15112ASCASCO

CST15112GSCASCO

CST15112OSCASCO

3858CEVAM

7701499651DACIA

8200369521DACIA

11797EAI

STR0037ELECTROLOG

STR79128ELECTROLOG

25-2191ELSTOCK

EZ0418ELTA AUTOMOTIVE

220358ERA

SG0022GHIBAUDI

GS432685-AGPARTS

CS1057HC PARTS

42017840HERTH+BUSS

MT130013JAPANPARTS

3130013JAPKO

STV1057KRAUF

101057KUHNER

101057RKUHNER

101057VKUHNER

101385KUHNER

101385VKUHNER

331209LOGISTIK

LRT00143LUCAS

NPANSM1574NAPA

88212973POWERMAX

570.512.092.000PSH

570.512.092.008PSH

570.512.092.311PSH

570.512.092.500PSH

570.512.092.505PSH

20479211BNREAL

20479211OEREAL

20479211REREAL

RNL1784RNL

STM589ROLLCO

6015112.0SANDO

6015112.1SANDO

6015112.4SANDO

S12VA0040SIDAT

S12VA0040A2SIDAT

MAV4580SIOM

STX200051STARDAX

STX200066STARDAX

STX200066RSTARDAX

STX200172STARDAX

SX 2108STARLINE

31143NWAI / TRANSPO

MAHMS131WOODAUTO

STR54042WOODAUTO

VAL432685WOODAUTO

Convient pour :

RENAULT Thalia 1.2 16V [D4F706] 04.2002-

RENAULT Thalia 1.2 16V [D4F712] 04.2002-

RENAULT Twingo 1.2 [D7F700] 05.1996-06.2007

RENAULT Twingo 1.2 [D7F700] 05.1996-03.2007

RENAULT Clio Grandtour 1.2 16V [D4F740] 02.2008

RENAULT Thalia 1.2 16V [D4F728] 04.2002-

RENAULT Twingo 1.2 [D7F700] 05.1996-08.2004

RENAULT Clio Grandtour 1.2 16V [D4F764] 02.2008-

RENAULT Grand Modus 1.2 [D4F740] 12.2004-

RENAULT Clio Grandtour 1.2 16V [D4F784] 02.2008-

RENAULT Grand Modus 1.2 [D4F740] 05.2005-

RENAULT Twingo 1.2 [D7F701] 05.1996-06.2007

RENAULT Twingo 1.2 [D7F701] 05.1996-03.2007

RENAULT Twingo 1.2 [D7F701] 05.1996-08.2004

RENAULT Clio 1.2 [D7F710] 09.1998-

RENAULT Clio 1.2 [D7F720] 09.1998-

RENAULT Twingo 1.2 [D7F702] 05.1996-06.2007

RENAULT Clio 1.2 [D7F722] 09.1998-

RENAULT Twingo 1.2 [D7F702] 05.1996-08.2004

RENAULT Kangoo 1.2 [D7F710] 08.1997-

RENAULT Clio 1.2 [D7F726] 09.1998-

RENAULT Kangoo 1.2 [D7F720] 08.1997-

RENAULT Twingo 1.2 [D7F703] 05.1996-06.2007

RENAULT Clio 1.2 [D7F730] 01.1996-09.1998

RENAULT Twingo 1.2 [D7F703] 05.1996-08.2004

RENAULT Kangoo 1.2 [D7F722] 08.1997-

RENAULT Clio 1.2 [D7F746] 09.1998-

RENAULT Kangoo 1.2 [D7F726] 08.1997-

RENAULT Twingo 1.2 [D7F704] 05.1996-06.2007

RENAULT Clio 1.2 [D7F764] 09.1998-

RENAULT Twingo 1.2 [D7F704] 05.1996-08.2004

RENAULT Kangoo 1.2 [D7F744] 08.1997-

RENAULT Clio 1.2 [D7F766] 09.1998-

RENAULT Kangoo 1.2 [D7F746] 08.1997-

RENAULT Twingo 1.2 [D7F706] 05.1996-08.2004

RENAULT Twingo 1.2 16V [D4F702] 01.2001-06.2007

RENAULT Kangoo 1.2 16V [D4F712] 06.2001-

RENAULT Twingo 1.2 16V [D4F708] 08.2004-06.2007

RENAULT Clio 1.4 16V [K4J780] 06.2005-

RENAULT Grand Modus 1.5 dCi [K9K768] 12.2004-

RENAULT Kangoo 1.2 16V [D4F714] 06.2001-

RENAULT Twingo 1.2 Turbo [D4F780] 03.2007-

RENAULT Kangoo 1.2 16V [D4F716] 06.2001-

RENAULT Twingo 1.2 Turbo [D4F782] 03.2007-

RENAULT Kangoo 1.2 16V [D4F730] 06.2001-

RENAULT Kangoo 1.2 16V Express [D4F712] 10.2001-

RENAULT Kangoo 1.2 16V Express [D4F714] 10.2001-

RENAULT Kangoo 1.2 16V Express [D4F730] 10.2001-

RENAULT Kangoo 1.2 Express [D7F710] 08.1997-

RENAULT Kangoo 1.2 Express [D7F720] 08.1997-

RENAULT Clio 1.2 16V [D4F706] 06.2001-

RENAULT Kangoo 1.2 Express [D7F722] 08.1997-

RENAULT Clio 1.2 16V [D4F706] 06.2005-

RENAULT Modus 1.2 [D4F740] 12.2004-

RENAULT Kangoo 1.2 Express [D7F726] 08.1997

RENAULT Clio 1.2 16V [D4F712] 06.2001-

RENAULT Modus 1.2 [D4F740] 05.2005-

RENAULT Kangoo 1.2 Express [D7F744] 08.1997-

RENAULT Clio 1.2 16V [D4F714] 06.2001-

RENAULT Kangoo 1.2 Express [D7F746] 08.1997-

RENAULT Clio 1.2 16V [D4F722] 06.2001-

RENAULT Clio 1.2 16V [D4F728] 06.2001-

RENAULT Clio 1.2 16V [D4F740] 06.2005-

RENAULT Clio 1.2 16V [D4F764] 06.2005-

RENAULT Clio 1.2 16V [D4F784] 05.2007-

RENAULT Modus 1.5 dCi [K9K768] 12.2004-

Démarreur Magneti-Marelli 063721177010

Référence : S3002

Référence 0E : D7R2

EAN : 5901259421590

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.70

Rotation du demarreur CW

Taille B [ mm ] -5.00

Nombre de dents [ qty. ] 11

Nombre de dents (s'insère dans) [ qty. ] 10. 11. 12. 13

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 3

L.1 [ mm ] 237.00

O.1 [ mm ] 120.00

O.2 [ mm ] 85.00

O.3 [ mm ] 85.00

C.1 [ mm ] M10x1.5

C.2 [ mm ] M10x1.5

C.3 [ mm ] M10x1.5

Balais charbons : PSX158. PSX142-143.  PSX142-144

Références compatibles :

0001109010 BOSCH

0001109026 BOSCH

0986013240 BOSCH

1986S00716 BOSCH

110843 CARGO

111070 CARGO

111132 CARGO

F032111070 CARGO

9625382780 FIAT

8EA011610-071 HELLA

063721177010 MAGNETI MARELLI

MQS1177 MAGNETI MARELLI

5802-C4 PEUGEOT

5802-CJ PEUGEOT

5802-CQ PEUGEOT

5802-F2 PEUGEOT

5802-H7 PEUGEOT

5802-J4 PEUGEOT

5802-M4 PEUGEOT

5802-Q5 PEUGEOT

5802-V6 PEUGEOT

95656489R PEUGEOT

96035036 PEUGEOT

96035036R PEUGEOT

201029 VALEO

438069 VALEO

455929 VALEO

460529 VALEO

AC-CBS0712 ACAUTO

AC-CBS1177 ACAUTO

25-2031CT AINDE

CGB-23617 AINDE

10440400 ALANKO

11440400 ALANKO

ASM1255 APEC

A13245 ATL AUTOTECHNIK

AES7151 AUTOELECTRO

SVA104 AUTOTEAM

BST2072 BORG & BECK

S102912 BTS TURBO

CST15104AS CASCO

CST15104GS CASCO

CST15104RS CASCO

3107 CEVAM

300039112 DRI

11639 EAI

STR00115 ELECTROLOG

25-2031 ELSTOCK

220171 ERA

220171A ERA

SG0327 GHIBAUDI

SG0327RB GHIBAUDI

GS110017-AGPARTS

GS110017B-RGPARTS

GS438069-NGPARTS

GS438165-AGPARTS

GST50171-AGPARTS

SS110017-AGPARTS

SS110017B-RGPARTS

SS438165-AGPARTS

SST50171-AGPARTS

CS1177HC PARTS

3115728 HENKEL PARTS

42432561 HERTH+BUSS

36100-29000 HYUNDAI

10015104A VITAB AUTOMOTIVE

10015104O VITAB AUTOMOTIVE

STV1177 KRAUF

101177 KUHNER

101177B KUHNER

101177K KUHNER

101177M KUHNER

101177V KUHNER

LES0187 LE PART

LES187 LE PART

330746 LOGISTIK

LRS00751 LUCAS

LRS751 LUCAS

8550505868 MOTRIO

NPANSM1255 NAPA

4713350 NK

S521I19 NPS

2131273OMNICRAFT

220.515.113.000 PSH

220.515.113.460 PSH

220.515.113.500 PSH

20479401BN REAL

20479401OE REAL

20479401RC REAL

STM525 ROLLCO

6015104.0 SANDO

6015104.1 SANDO

6015104.2 SANDO

MAV4670 SIOM

MAV4670A SIOM

639ST11 SNRA

TC9015 SNRA

TT15492 TESLA TECHNICS

TT15492 PROTESLA TECHNICS

ST00713 TMI

WG2012798 WILMINK GROUP

WG2012799 WILMINK GROUP

Convient pour :

CITROEN XM 2.1 TD 12V [P8A(XUD11ATE)] 05.1994-10.2000

CITROEN Xsara 2.0 HDi 90 [RHY(DW10TD)] 02.1999-08.2005

CITROEN Jumpy 1.9 D 70 [WJZ(DW8)] 04.1998-11.2003

CITROEN Jumpy 2.0 HDi 110 [RHZ(DW10ATED)] 03.2000-10.2006

CITROEN Jumpy 1.9 D 70 [WJZ(DW8)] 04.1998-10.2006

CITROEN Berlingo 1.8 D [A9A(XUD7)] 07.1998-10.2002

CITROEN Evasion 2.0 HDi 16V [RHW(DW10ATED4)] 09.1999-07.2002

CITROEN XM 2.1 TD 12V [P8C(XUD11BTE)] 11.1991-04.1994

CITROEN C5 2.0 HDi [RHZ(DW10ATED)] 03.2001-08.2004

CITROEN Xsara 1.8 D [161A(XUD7)] 04.1997-09.2000

CITROEN Jumpy 2.0 HDi 110 [RHZ(DW10ATED)] 10.2001-10.2006

CITROEN Jumpy 1.9 TD [D8B(XUD9TE)] 10.1995-08.2000

CITROEN Xsara 1.8 D [A9A(XUD7)] 04.1997-09.2000

CITROEN Jumpy 2.0 HDi 110 [RHZ(DW10ATED)] 12.2003-10.2006

CITROEN Jumpy 1.9 TD [D8B(XUD9TE)] 10.1999-10.2006

CITROEN C5 2.0 HDi [RHZ(DW10ATED)] 06.2001-08.2004

CITROEN Jumpy 2.0 HDi 110 [RHZ(DW10BTED)] 10.2001-10.2006

CITROEN XM 2.1 TD 12V [P8C(XUD11BTE)] 05.1994-10.2000

CITROEN Xantia 1.9 SD [DHW(XUD9SD)] 02.1996-04.2003

CITROEN Xsara 1.9 D [WJZ(DW8)] 07.1998-03.2005

CITROEN Jumpy 2.0 HDi 110 [RHZ(DW10BTED)] 12.2003-10.2006

CITROEN Xantia 1.9 SD [DHW(XUD9SD)] 04.1997-04.2003

CITROEN Xsara 1.9 D [WJZ(DW8)] 07.1998-08.2005

CITROEN ZX 1.9 DT [DHY(XUD9TE/Y)] 06.1992-06.1994

CITROEN Jumpy 1.9 TD [D8B(XUD9TF)] 04.1996-11.2003

CITROEN Xantia 1.9 TD [D8B(XUD9TF)] 06.1995-04.2003

CITROEN Xsara 1.8 D [A9A(XUD7)] 10.1997-09.2000

CITROEN ZX 1.9 DT [DHY(XUD9TE/Y)] 07.1994-10.1997

CITROEN Xsara 1.8 D [A9A(XUD7)] 05.1998-05.1999

CITROEN Berlingo 1.9 D [D9B(XUD9)] 07.1996-12.2003

CITROEN XM 2.1 TD 12V [PHZ(XUD11ATE)] 05.1989-06.1994

CITROEN Jumpy 2.0 HDi 110 [RHZ(DW10BTED+)] 10.2001-10.2006

CITROEN Evasion 2.1 TD [P8C(XUD11BTE)] 05.1996-07.2002

CITROEN Berlingo 1.9 D [D9B(XUD9A/L)] 07.1996-12.2003

CITROEN Jumpy 2.0 HDi 110 [RHZ(DW10BTED+)] 12.2003-10.2006

CITROEN XM 2.1 TD 12V [PHZ(XUD11ATE)] 11.1991-04.1994

CITROEN Jumpy 1.9 TD [DHX(XUD9BTF)] 10.1995-08.2000

CITROEN Jumpy 2.0 HDi 110 [RHZ(DW10CTED)] 10.2001-10.2006

CITROEN Jumpy 1.9 TD [DHX(XUD9TF)] 10.1995-08.2000

CITROEN Xsara 1.9 D [WJZ(DW8)] 02.1999-03.2005

CITROEN Jumpy 2.0 HDi 110 [RHZ(DW10CTED)] 12.2003-10.2006

CITROEN Xantia 2.1 TD 12V [P8C(XUD11BTE)] 06.1995-02.1999

CITROEN Xsara 1.9 D [WJZ(DW8)] 06.1999-03.2005

CITROEN Xsara 1.9 D [WJZ(DW8)] 06.1999-08.2005

CITROEN Jumpy 2.0 HDi 120 [RHK(DW10UTED4)] 01.2007-03.2016

CITROEN Xantia 1.9 TD [DHX(XUD9BTF)] 05.1993-04.2003

CITROEN Berlingo 1.9 D [DJY(XUD9A)] 07.1996-12.2003

CITROEN Xantia 1.9 TD [DHX(XUD9BTF)] 06.1995-04.2003

CITROEN XM 2.1 TD 12V [PHZ(XUD11ATE)] 05.1994-10.2000

CITROEN Xantia 1.9 TD [DHX(XUD9TF)] 05.1993-04.2003

CITROEN Xantia 1.9 TD [DHX(XUD9TF)] 06.1995-04.2003

CITROEN Xantia 2.1 TD 12V [P8C(XUD11BTE)] 06.1996-02.1999

CITROEN Jumpy 1.9 TD [WJY(DW8B)] 11.2000-10.2006

CITROEN XM 2.1 TD 12V [PJZ(XUD11ATE)] 05.1989-06.1994

CITROEN XM 2.1 TD 12V [PJZ(XUD11ATE)] 11.1991-04.1994

CITROEN ZX 1.9 TD [DHY(XUD9TE/Y)] 10.1993-10.1997

CITROEN Jumpy 2.0 HDi 95 [RHX(DW10BTED)] 10.1999-10.2006

CITROEN Xsara 1.9 SD [DHV(XUD9BSD)] 01.1998-09.2000

CITROEN Berlingo 1.8 D [A9A(XUD7)] 07.1996-10.2002

CITROEN Berlingo 2.0 HDi 90 4WD [RHY(DW10TD)] 11.2000-10.2005

CITROEN Evasion 2.0 HDi [RHZ(DW10ATED)] 08.1999-07.2002

CITROEN XM 2.1 TD 12V [P8A(XUD11ATE)] 11.1991-04.1994

CITROEN Jumpy 1.9 D 70 [WJY(DW8B)] 04.1998-11.2003

CITROEN Jumpy 2.0 HDi 110 [RHW(DW10ATED4)] 03.2000-10.2006

CITROEN Jumpy 1.9 D 70 [WJY(DW8B)] 04.1998-10.2006

CITROEN Xsara 1.9 D [WJY(DW8B)] 02.1999-03.2005

CITROEN Jumpy 2.0 HDi 110 [RHW(DW10ATED4)] 01.2002-10.2006

CITROEN Xantia 1.9 D [DJZ(XUD9A)] 06.1994-01.1998

CITROEN Xsara 2.0 HDi 90 [RHY(DW10TD)] 02.1999-03.2005





FIAT Scudo 1.9 D [D9B(XUD9A)] 02.1996-04.1998

FIAT Scudo 1.9 D [D9B(XUD9A)] 02.1996-12.2006

FIAT Ulysse 2.1 TD [P8C] 03.1996-10.1999

FIAT Ulysse 2.2 D Multijet [4HS] 03.2008-06.2011

FIAT Scudo 2.0 JTD [RHZ] 12.2002-12.2006

FIAT Ulysse 2.2 D Multijet [4HT(DW12BTED4)] 03.2008-06.2011

FIAT Scudo 2.0 JTD 16V [RHK(DW10UTED4)] 05.1999-12.2006

FIAT Scudo 2.0 JTD 16V [RHM(DW10ATED4)] 05.1999-12.2006

FIAT Scudo 1.9 D [WJY(DW8)] 04.1998-12.2006

FIAT Scudo 1.9 D [WJY(DW8B)] 04.1998-12.2006

FIAT Ulysse 2.2 JTD [4HW(DW12ATED4)] 08.2002-08.2006

FIAT Scudo 2.0 JTD 16V [RHW(DW10ATED4)] 05.1999-12.2006

FIAT Scudo 1.9 D [WJZ(DW8)] 04.1998-12.2006

FIAT Ulysse 1.9 TD [DHX(XUD9TF/L)] 02.1995-08.2002

FIAT Scudo 1.9 TD [D8B] 02.1996-12.2006

FIAT Ulysse 2.0 D Multijet [RHR] 05.2006-06.2011

FIAT Ulysse 2.0 JTD [RHM(DW10ATED4)] 08.2002-08.2006

FIAT Scudo 1.9 TD [DHX(XUD9TF/L)] 09.1996-12.2006

FIAT Scudo 1.9 TD Eco [DHX(XUD9TF/L)] 02.1996-12.2006

FIAT Ulysse 2.0 JTD [RHW(DW10ATED4)] 05.2003-08.2006

FIAT Ulysse 2.0 JTD [RHZ] 10.1999-08.2002

FIAT Ulysse 2.0 JTD 16V [RHW(DW10ATED4)] 05.1999-08.2002

FIAT Scudo 2.0 JTD [RHX] 10.1999-12.2006

FIAT Scudo 2.0 JTD [RHX] 01.2004-12.2006

FIAT Scudo 2.0 JTD [RHZ] 12.1999-12.2006



HYUNDAI Lantra 1.9 D [DJY] 03.1998-09.2000

HYUNDAI Lantra 1.9 D [DJY] 03.1998-10.2000



LANCIA Phedra 2.2 D Multijet [4HS] 03.2008-11.2010

LANCIA Phedra 2.2 D Multijet [4HT] 03.2008-11.2010

LANCIA Phedra 2.2 JTD [4HW(DW12ATED4)] 09.2002-11.2010

LANCIA Zeta 2.0 JTD [RHZ(DW10ATED)] 09.1999-09.2002

LANCIA Zeta 2.0 JTD 16V [RHW(DW10ATED4)] 04.2001-10.2003

LANCIA Zeta 2.1 TD [P8C] 05.1996-09.1999

LANCIA Phedra 2.0 D Multijet [RHR(DW10BTED4)] 07.2006-11.2010

LANCIA Phedra 2.0 JTD [RHK(DW10UTED4)] 06.2006-11.2010

LANCIA Phedra 2.0 JTD [RHM(DW10ATED4)] 07.2003-11.2010

LANCIA Phedra 2.0 JTD [RHW(DW10ATED4)] 09.2002-11.2010





PEUGEOT 306 2.0 HDi 90 [RHY(DW10TD)] 06.1999-12.2001

PEUGEOT Partner 1.9 D [WJY(DW8B)] 06.1996-12.2015

PEUGEOT 306 2.0 HDi 90 [RHY(DW10TD)] 06.1999-04.2002

PEUGEOT 306 2.0 HDi 90 [RHY(DW10TD)] 06.1999-12.2002

PEUGEOT Expert 1.9 TD [D8B(XUD9TE)] 02.1996-05.1998

PEUGEOT Partner 1.9 D [WJY(DW8B)] 01.1999-07.2008

PEUGEOT Boxer 2.0 HDi [RHV(DW10TD)] 08.2001-04.2002

PEUGEOT 806 2.0 HDi [RHZ(DW10ATED)] 08.1999-08.2002

PEUGEOT Boxer 2.0 HDi [RHV(DW10TD)] 12.2001-06.2006

PEUGEOT Partner 1.9 D [WJZ(DW8)] 06.1996-12.2015

PEUGEOT Expert 1.9 TD [DHX(XUD9TE)] 02.1996-09.2000

PEUGEOT Boxer 2.0 HDi [RHV(DW10TD)] 04.2002-06.2006

PEUGEOT 306 1.9 D [WJY(DW8B)] 09.1998-05.2001

PEUGEOT 306 1.9 D [WJY(DW8B)] 09.1998-04.2002

PEUGEOT Boxer 2.0 HDi [RHV(DW10UTD)] 08.2001-04.2002

PEUGEOT 306 1.9 D [WJY(DW8B)] 02.1999-08.2001

PEUGEOT 806 2.0 HDi 16V [RHW(DW10ATED4)] 08.1999-08.2002

PEUGEOT Boxer 2.0 HDi [RHV(DW10UTD)] 12.2001-06.2006

PEUGEOT Partner 1.9 D [WJZ(DW8)] 01.1999-07.2008

PEUGEOT 605 2.1 D [P9A(XUD11A)] 06.1989-07.1995

PEUGEOT Partner 1.9 D [XUD9] 05.1996-12.1998

PEUGEOT Boxer 2.0 HDi [RHV(DW10UTD)] 04.2002-06.2006

PEUGEOT 405 1.9 TD [DHY(XUD9TE)] 08.1992-10.1995

PEUGEOT 605 2.1 TD [PHZ(XUD11ATE)] 06.1989-09.1999

PEUGEOT 206 1.9 D [WJY(DW8B)] 09.1998-11.2001

PEUGEOT 405 1.9 TD [DHY(XUD9TE)] 08.1992-10.1996

PEUGEOT 405 1.9 TD [XUD9TE] 08.1992-05.1997

PEUGEOT 206 1.9 D [WJY(DW8B)] 04.1999-05.2007

PEUGEOT 306 1.9 D [WJZ(DW8)] 09.1998-05.2001

PEUGEOT 306 1.9 D [WJZ(DW8)] 09.1998-04.2002

PEUGEOT 806 2.1 TD 12V [P8C(XUD11BTE)] 06.1996-08.1999

PEUGEOT 406 2.0 HDi 110 [RHS(DW10ATED)] 08.2001-05.2004

PEUGEOT 306 1.9 D [WJZ(DW8)] 02.1999-08.2001

PEUGEOT 406 2.0 HDi 110 [RHS(DW10ATED)] 08.2001-10.2004

PEUGEOT Partner 1.9 D 4x4 [WJY(DW8B)] 04.2004-07.2011

PEUGEOT 605 2.1 TD 12V [P8C(XUD11BTE)] 08.1994-09.1999

PEUGEOT Boxer 1.9 D [D9B(XUD9AU)] 03.1994-04.2002

PEUGEOT Partner 1.9 D 4x4 [WJY(DW8B)] 04.2004-08.2005

PEUGEOT 405 1.8 D [A9A(XUD7)] 04.1990-07.1992

PEUGEOT 306 1.9 D [XUD9] 04.1993-05.1999

PEUGEOT 406 2.0 HDi 110 [RHZ(DW10ATED)] 06.1998-08.2001

PEUGEOT 206 1.9 D [WJZ(DW8)] 09.1998-11.2001

PEUGEOT Boxer 1.9 D [DJY(XUD9A)] 07.1999-04.2002

PEUGEOT 206 1.9 D [WJZ(DW8)] 04.1999-05.2007

PEUGEOT 406 2.0 HDi 110 [RHZ(DW10ATED)] 02.1999-04.2004

PEUGEOT Expert 2.0 HDi [RHW(DW10ATED4)] 07.2000-12.2006

PEUGEOT 405 1.8 TD [A8A(XUD7TE)] 03.1988-12.1992

PEUGEOT Expert 2.0 HDi [RHW(DW10ATED4)] 10.2000-10.2006

PEUGEOT 406 2.0 HDi 110 [RHZ(DW10ATED)] 08.2001-05.2004

PEUGEOT 307 2.0 HDi 110 [RHS(DW10ATED)] 08.2000-03.2007

PEUGEOT 405 1.8 TD [A8A(XUD7TE)] 10.1988-08.1992

PEUGEOT 406 2.0 HDi 110 [RHZ(DW10ATED)] 08.2001-10.2004

PEUGEOT 307 2.0 HDi 110 [RHS(DW10ATED)] 03.2002-12.2009

PEUGEOT 405 1.8 TD [AJZ(XUD7TEY)] 03.1988-12.1992

PEUGEOT 307 2.0 HDi 135 [RHR(DW10BTED4)] 10.2003-11.2007

PEUGEOT 405 1.8 TD [AJZ(XUD7TEY)] 10.1988-08.1992

PEUGEOT 406 2.0 HDi 90 [RHY(DW10TD)] 02.1999-05.2004

PEUGEOT Partner 2.0 HDi [RHY(DW10TD)] 02.2000-07.2008

PEUGEOT 406 2.0 HDi 90 [RHY(DW10TD)] 02.1999-10.2004

PEUGEOT Expert 2.0 HDi [RHX(DW10BTED)] 07.2000-12.2006

PEUGEOT 307 2.0 HDi 135 [RHR(DW10BTED4)] 02.2004-04.2008

PEUGEOT 607 2.0 HDi [RHZ(DW10ATED)] 05.2000-09.2005

PEUGEOT Expert 2.0 HDi [RHX(DW10BTED)] 10.2000-10.2006

PEUGEOT Boxer 1.9 TD [D8C(XUD9UTF)] 03.1994-04.2002

PEUGEOT Expert 2.0 HDi [RHX(DW10BTED+)] 07.2000-12.2006

PEUGEOT Boxer 1.9 TD [D8C(XUD9UTF)] 07.1994-04.2002

PEUGEOT 206 2.0 HDi [RHY(DW10TD)] 07.2002-02.2007

PEUGEOT 307 2.0 HDi 90 [RHY(DW10TD)] 08.2000-03.2007

PEUGEOT Expert 2.0 HDi [RHX(DW10BTED+)] 10.2000-10.2006

PEUGEOT 206 2.0 HDi 90 [RHY(DW10TD)] 12.1999-09.2009

PEUGEOT 307 2.0 HDi 90 [RHY(DW10TD)] 03.2002-04.2008

PEUGEOT Partner 2.0 HDi [RHY(DW10TD)] 04.2000-07.2008

PEUGEOT 405 1.9 D [D9B(XUD9A)] 03.1988-12.1992

PEUGEOT 405 1.9 D [D9B(XUD9A)] 10.1988-08.1992

PEUGEOT 405 1.9 D [DJY(XUD9A)] 10.1988-08.1992

PEUGEOT 306 1.8 D [A9A(XUD7)] 04.1993-05.1999

PEUGEOT 405 1.9 D [DJY(XUD9A)] 08.1992-08.1994

PEUGEOT Expert 2.0 HDi [RHZ(DW10ATED)] 07.2000-12.2006

PEUGEOT 306 1.9 DT [DHY(XUD9TE)] 05.1993-05.2001

PEUGEOT 306 1.9 SLD [DJY(XUD9A)] 06.1994-05.2001

PEUGEOT 406 1.9 D [DHW(XUD9SD)] 10.1996-05.2004

PEUGEOT 406 1.9 D [DHW(XUD9SD)] 10.1996-10.2004

PEUGEOT 306 1.9 SLD [DJZ(XUD9A)] 06.1994-05.2001

PEUGEOT 306 1.9 SRDT [DHY(XUD9TE)] 06.1994-05.2001

PEUGEOT Partner 2.0 HDi 4x4 [RHY(DW10TD)] 04.2004-08.2005

PEUGEOT 306 1.8 D [A9A(XUD7)] 05.1993-05.2001

PEUGEOT Expert 2.0 HDi [RHZ(DW10BTED)] 07.2000-12.2006

PEUGEOT 306 1.9 STD [D9B(XUD9A)] 02.1994-10.1995

PEUGEOT 406 2.1 TD 12V [P8C(XUD11BTE)] 01.1996-05.2004

PEUGEOT Expert 1.9 D [D9B(XUD9AU)] 02.1996-12.1998

PEUGEOT 306 1.9 STD [DJY(XUD9A)] 02.1994-10.1995

PEUGEOT Expert 2.0 HDi [RHZ(DW10BTED+)] 07.2000-12.2006

PEUGEOT 306 1.9 STD [XUD9] 02.1994-10.1995

PEUGEOT 306 1.9 TD [D8A(XUD9TE)] 02.1997-04.2002

PEUGEOT 405 1.9 D [DJY(XUD9A)] 06.1994-10.1995

PEUGEOT Boxer 1.9 TD [DHY(XUD9TE)] 08.1994-04.2002

PEUGEOT 306 1.9 D [D8A(XUD9TE)] 01.1993-12.1997

PEUGEOT 405 1.9 D [DJY(XUD9A)] 06.1994-10.1996

PEUGEOT 405 1.9 D [DJZ(XUD9)] 08.1992-10.1995

PEUGEOT 306 1.9 D [D8A(XUD9TE)] 02.1994-12.1997

PEUGEOT 405 1.9 D [DJZ(XUD9)] 08.1992-10.1996

PEUGEOT 406 1.9 TD [DHX(XUD9TE)] 01.1996-05.2004

PEUGEOT Partner 1.8 D [A9A(XUD7)] 06.1996-12.2002

PEUGEOT 405 1.9 D [DJZ(XUD9A)] 07.1988-09.1992

PEUGEOT Expert 1.9 D [WJY(DW8B)] 06.1998-09.2001

PEUGEOT 306 1.9 D [D9B(XUD9A)] 04.1993-05.1999

PEUGEOT 405 1.9 D [DJZ(XUD9A)] 10.1988-08.1992

PEUGEOT 406 2.1 TD 12V [P8C(XUD11BTE)] 10.1996-10.2004

PEUGEOT 806 1.9 TD [D8B(XUD9TE)] 05.1997-08.2002

PEUGEOT Expert 2.0 HDi [RHZ(DW10CTED)] 07.2000-12.2006

PEUGEOT 306 1.9 D [DHV(XUD9BSD)] 03.1998-05.2001

PEUGEOT 306 1.9 D [DHV(XUD9BSD)] 03.1998-04.2002

PEUGEOT 306 1.9 TD [DHY(XUD9TE)] 02.1997-04.2002

PEUGEOT Boxer 1.9 TD [XUD9TE] 07.1994-04.2002

PEUGEOT Expert 2.0 HDi 120 [RHK(DW10UTED4)] 01.2007

PEUGEOT Partner 1.8 D [A9A(XUD7)] 11.1996-02.1998

PEUGEOT Boxer 1.9 TD [XUD9TE] 07.1999-04.2002

PEUGEOT 406 1.9 TD [DHX(XUD9TE)] 10.1996-10.2004

PEUGEOT Expert 1.9 D [WJZ(DW8)] 06.1998-09.2001

PEUGEOT Expert 2.0 HDi 140 [RHR(DW10BTED4)] 01.2007-

PEUGEOT 806 1.9 TD [DHX(XUD9TE)] 07.1995-08.2002

PEUGEOT 306 1.9 D [DJY(XUD9A)] 04.1993-05.1999

PEUGEOT Expert 2.0 HDi 16V [RHW(DW10ATED4)] 07.2000-12.2006

PEUGEOT Partner 1.9 D [DJY(XUD9A)] 06.1996-12.2002

PEUGEOT 306 1.9 D [DJY(XUD9A)] 06.1994-05.2001

PEUGEOT 405 1.9 D [XUD9] 08.1992-12.1995

PEUGEOT 406 1.9 TD [DHY(XUD9TE)] 01.1996-05.2004

PEUGEOT Expert 1.9 D 70 [WJY(DW8B)] 12.1998-12.2006

PEUGEOT Expert 1.9 D 70 [WJZ(DW8)] 12.1998-12.2006

PEUGEOT Expert Tepee 2.0 HDi 120 [RHK(DW10UTED4)] 01.2007-03.2016

PEUGEOT 306 1.9 D [DJY(XUD9A)] 03.1997-04.2002

PEUGEOT 405 1.9 D [XUD9] 09.1993-12.1995

PEUGEOT Expert Tepee 2.0 HDi 140 [RHR(DW10BTED4)] 01.2007-

PEUGEOT 306 1.9 D [DJY(XUD9A)] 05.1997-05.1999

PEUGEOT 306 1.9 D [DJZ(XUD9A)] 05.1993-05.2001

Démarreur Magneti-Marelli MSR183

Référence : S4059

Référence 0E : LRS139

EAN : 5902129028581

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 2.10

Rotation du demarreur CW

Taille A [ mm ] 92.00

Taille B [ mm ] 19.00

Nombre de dents [ qty. ] 10

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 0

L.1 [ mm ] 316.00

O.1 [ mm ] 146.00

O.2 [ mm ] 103.00

O.3 [ mm ] 103.00

C.1 [ mm ] 12.50

C.2 [ mm ] 12.50

C.3 [ mm ] 12.50



Références démarreurs compatibles

110440CARGO

DRS3464DELCO

8EA737246-001HELLA

63227468MAGNETI MARELLI

MSR183MAGNETI MARELLI

20500139PRESTOLITE

GEU420ROVER

PRSF0393EFFE

STRF0393EFFE

CGB-23511AINDE

ANM15684XANDEL

AES1139AUTOELECTRO

CST25113ASCASCO

CST25113GSCASCO

11608EAI

STR4109ELECTROLOG

25-0250ELSTOCK

SG0162GHIBAUDI

CS997HC PARTS

331149LOGISTIK

26025198ALUCAS

26259LUCASListe

26259ALUCASListe

26259KLUCASListe

26259LLUCASListe

26259NLUCASListe

26321BLUCASListe

26321DLUCASListe

26321FLUCASListe

26925198LUCAS

26925198ALUCAS

26925198DLUCAS

27446LUCASListe

27446ALUCASListe

27468LUCASListe

27468ALUCASListe

27468BLUCASListe

LRS00139LUCASListe

LRS139LUCASListe

NSB409LUCAS

NSB511LUCAS

8213323POWERMAX

450.009.103.100PSH

450.009.103.108PSH

20405311BNREAL

20405311OEREAL

180-30174ROBERT'S

STM763ROLLCO

6025113.0SANDO

6025113.1SANDO

MAV3640SIOM

33088NWAI / TRANSPO

33088RWAI / TRANSPO

STR56003WOODAUTO

 Convient pour :



LAND ROVER LR 109 DP 2.3 D [10J]

LAND ROVER LR 109 DP 2.3 D [23J]

LAND ROVER 109 2.25 D

LAND ROVER 110 2.25 D 01.1983-01.1984

LAND ROVER 110 2.3 D 4x4 [10J] 01.1984-12.2006

LAND ROVER 110 2.5 D 4x4 [12J] 01.1984-12.2006

LAND ROVER 90 2.3 D 4x4 [10J] 01.1983-12.2009

LAND ROVER 90 2.5 D 4x4 [12J] 01.1983-12.2009

Démarreur Magneti-Marelli 63227468

Référence : S4059

Référence 0E : LRS139

EAN : 5902129028581

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 2.10

Rotation du demarreur CW

Taille A [ mm ] 92.00

Taille B [ mm ] 19.00

Nombre de dents [ qty. ] 10

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 0

L.1 [ mm ] 316.00

O.1 [ mm ] 146.00

O.2 [ mm ] 103.00

O.3 [ mm ] 103.00

C.1 [ mm ] 12.50

C.2 [ mm ] 12.50

C.3 [ mm ] 12.50



Références démarreurs compatibles

110440CARGO

DRS3464DELCO

8EA737246-001HELLA

63227468MAGNETI MARELLI

MSR183MAGNETI MARELLI

20500139PRESTOLITE

GEU420ROVER

PRSF0393EFFE

STRF0393EFFE

CGB-23511AINDE

ANM15684XANDEL

AES1139AUTOELECTRO

CST25113ASCASCO

CST25113GSCASCO

11608EAI

STR4109ELECTROLOG

25-0250ELSTOCK

SG0162GHIBAUDI

CS997HC PARTS

331149LOGISTIK

26025198ALUCAS

26259LUCASListe

26259ALUCASListe

26259KLUCASListe

26259LLUCASListe

26259NLUCASListe

26321BLUCASListe

26321DLUCASListe

26321FLUCASListe

26925198LUCAS

26925198ALUCAS

26925198DLUCAS

27446LUCASListe

27446ALUCASListe

27468LUCASListe

27468ALUCASListe

27468BLUCASListe

LRS00139LUCASListe

LRS139LUCASListe

NSB409LUCAS

NSB511LUCAS

8213323POWERMAX

450.009.103.100PSH

450.009.103.108PSH

20405311BNREAL

20405311OEREAL

180-30174ROBERT'S

STM763ROLLCO

6025113.0SANDO

6025113.1SANDO

MAV3640SIOM

33088NWAI / TRANSPO

33088RWAI / TRANSPO

STR56003WOODAUTO

 Convient pour :



LAND ROVER LR 109 DP 2.3 D [10J]

LAND ROVER LR 109 DP 2.3 D [23J]

LAND ROVER 109 2.25 D

LAND ROVER 110 2.25 D 01.1983-01.1984

LAND ROVER 110 2.3 D 4x4 [10J] 01.1984-12.2006

LAND ROVER 110 2.5 D 4x4 [12J] 01.1984-12.2006

LAND ROVER 90 2.3 D 4x4 [10J] 01.1983-12.2009

LAND ROVER 90 2.5 D 4x4 [12J] 01.1983-12.2009

Démarreur Magneti-Marelli 63191007

Référence : S4051

Référence 0E : 63191007

EAN : 5902129015406

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 0.80

Rotation du demarreur CW

Taille A [ mm ] 70.00

Taille B [ mm ] 16.00

Nombre de dents [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 2

Nombre de trous filetes [ qty. ] 2

L.1 [ mm ] 179.00

O.1 [ mm ] 100.00

C.1 [ mm ] M8x1.25

C.2 [ mm ] M8x1.25



Références démarreurs compatibles

0986022151BOSCH

112380CARGO

115951CARGO

DRS3878DELCO

DRS3878XDELCO

RAS34989DELCO

DSN583DENSO

6.0150.9IKA

063191007010MAGNETI MARELLIListe

63101007MAGNETI MARELLIListe

63191007MAGNETI MARELLIListe

944280800460MAGNETI MARELLI

MSN800MAGNETI MARELLI

0003188V006MERCEDES

0051510701MERCEDES

0051512601MERCEDESListe

A0003188V006MERCEDES

A0051510701MERCEDES

A0051512601MERCEDES

0003188V004SMART

0003188V005SMART

0003188V007SMART

0003188V008SMART

0003188V008000000SMART

3188V004SMART

3188V005SMART

3188V006SMART

3188V007SMART

3188V008000000SMART

Q0003188V004SMART

Q0003188V004000000SMART

Q0003188V005SMART

Q0003188V005000000SMART

Q0003188V006SMART

Q0003188V006000000SMART

Q0003188V007SMART

Q0003188V007000000SMART

Q0003188V008SMART

Q0003188V008000000SMART

458471VALEO

STRL7853EFFE

ANM16098XANDEL

ASM1531APEC

AEU1206AUTOELECTRO

CST30115CASCO

CST30115ASCASCO

CST30115ESCASCO

CST30115GSCASCO

CST30115OSCASCO

CST30115RSCASCO

STR90044ELECTROLOG

25-2395ELSTOCK

220517ERA

GS191007-AGPARTS

CS1206HC PARTS

42063191HERTH+BUSS

101206KUHNER

101206MKUHNER

332173LOGISTIK

LRS01461LUCAS

LRS1461LUCAS

5030048MEAT & DORIA

NPANSM1531NAPA

4722151NK

550.902.092PSH

550.902.092.050PSH

550.902.092.058PSH

550.902.092.265PSH

550.902.092.460PSH

20404511BNREAL

20404511OEREAL

RNL2215RNL

6030115SANDO

S12MA0050A2SIDAT

MAV2340SIOM

SS402SOVEREIGN

SS403SOVEREIGN

STX200244STARDAX

STX200244RSTARDAX

F042S0H042UNIPOINT

32461NWAI / TRANSPO

UNIT BOM 102-289WAI / TRANSPO

STR52027WOODAUTO



 Convient pour :



SMART Cabrio 0.7 [M160.910] 01.2003-01.2004

SMART City 0.6 [M160.920] 06.2002-01.2004

SMART City 0.7 [M160.910] 01.2003-01.2004

SMART City-Coupe 0.6 [M160.920] 01.1998-12.2004

SMART City-Coupe 0.7 [M160.910] 01.2003-

SMART City-Coupe 0.8 CDi [OM660.940] 01.2000-12.2004

SMART Crossblade 0.6 [M160.920] 06.2002-

SMART Fortwo 0.7 [M160.910] 01.2004-

SMART Fortwo 0.7 [M160.910] 01.2004-01.2007

SMART Fortwo 0.8 CDi 01.2004-

SMART Roadster 0.7 [160.921] 04.2003-

SMART Roadster 0.7 [160.922] 04.2003-

SMART Roadster 0.7 [M160.921] 06.2003-

SMART Roadster 0.7 Brabus [M160.923] 12.2003-

SMART Smart 0.6 [M160E6ALB03] 07.1998-01.2004

SMART Smart 0.6 [M160E6ALB04] 07.1998-01.2004

SMART Smart 0.6 [M160E6ALB05] 01.2001-01.2004

SMART Smart 0.6 [M160E6ALBO3] 03.2000-01.2004

SMART Cabrio 0.6 [M160.920] 06.2002-01.2004

Démarreur Magneti-Marelli MT71AB

Référence : S4044

Référence 0E : MT71AB

EAN : 5901259467277

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 2.70

Rotation du demarreur CW

Taille A [ mm ] 110.00

Taille B [ mm ] 24.00

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 0

L.1 [ mm ] 295.00

O.1 [ mm ] 146.00

O.2 [ mm ] 104.00

O.3 [ mm ] 104.00

C.1 [ mm ] 12.50

C.2 [ mm ] 12.50

C.3 [ mm ] 12.50



Références démarreurs compatibles

0001362032BOSCHListe

0001362039BOSCHListe

0001362105BOSCHListe

0986012670BOSCH

110813CARGO

DRS2670DELCO

DS3780DELCO

4172113FIAT

4739353FIAT

4745929FIAT

88205001FIAT

11.130.203ISKRA / LETRIKA

AZJ3538ISKRA / LETRIKAListe

IS0203ISKRA / LETRIKA

500333269IVECO

500338953IVECOListe

63217101MAGNETI MARELLIListe

63217125MAGNETI MARELLIListe

63217126MAGNETI MARELLIListe

MT71AMAGNETI MARELLIListe

MT71AAMAGNETI MARELLIListe

MT71ABMAGNETI MARELLIListe

72736016MAHLE

MS388MAHLEListe

82980757NEW HOLLAND

84224935NEW HOLLAND

87376491NEW HOLLAND

4169096PEUGEOT

4682998PEUGEOT

4710224PEUGEOT

4722682PEUGEOT

4728682PEUGEOT

4759929PEUGEOT

4807373PEUGEOT

5111319PEUGEOT

88205005PEUGEOT

20500850PRESTOLITE

PRSL0293EFFE

STRL0293EFFE

CGB-22670AINDE

CST10373ASCASCO

CST30102ASCASCO

CST30102GSCASCO

8615CEVAM

33341EAI

STR9070ELECTROLOG

25-0465ELSTOCK

220007ERA

SG0126GHIBAUDI

CS572HC PARTS

STB0572KRAUF

10572BKUHNER

10572MKUHNER

26290LUCAS

26390LUCASListe

LRS00850LUCASListe

LRS0850LUCAS

LRS850LUCAS

88212934POWERMAX

500.001.093.010PSH

500.001.093.016PSH

500.001.093.100PSH

500.001.093.225PSH

500.001.093.311PSH

20401373BNREAL

20404201BNREAL

20404201OEREAL

6010373.0SANDO

6030102.0SANDO

6030102.1SANDO

17093NWAI / TRANSPO

91-15-6928WILSON

91-15-6928NWILSON

MAHMS388WOODAUTO

 Convient pour :



FIAT 45.66 [8035.06] 01.1985-12.1989

FIAT 465 2.6 01.1982-12.1984

FIAT 466 2.6 01.1982-12.1984

FIAT 480 2.6 01.1976-12.1982

FIAT 540S 2.6 01.1978-12.1982

FIAT 55.46 [8035.06] 01.1985-12.1988

FIAT 55.65 [55.65] 01.1984-12.1989

FIAT 55.66 [8035.06] 01.1984-12.1989

FIAT 55.88 [8035.06] 01.1990-12.1991

FIAT 55.90 [8035.06] 01.1984-12.1989

FIAT 565C 2.8 01.1982-12.1984

FIAT 566 2.8 01.1982-12.1984

FIAT 570 2.8 01.1977-12.1987

FIAT 580 2.8 01.1977-12.1984

FIAT 60.88 [8035.05] 01.1990-12.1992

FIAT 60.90 [8035.05] 01.1984-12.1990

Démarreur Magneti-Marelli 4280003180

Référence : S4042

Référence 0E : 4280003180

EAN : 5901259443158

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 2.00

Rotation du demarreur CW

Taille A [ mm ] 74.00

Taille B [ mm ] 24.00

Nombre de dents [ qty. ] 11

Nombre de dents (s'insère dans) [ qty. ] 11

Nombre d'ouvertures dans la tete [ qty. ] 2

Nombre de trous filetes [ qty. ] 1

L.1 [ mm ] 233.00

O.1 [ mm ] 122.50

C.1 [ mm ] M12x1.25

C.2 [ mm ] 13.50



Références démarreurs compatibles

0986023240BOSCH

114216CARGO

428000-3180DENSOListe

428000-4920DENSOListe

8EA012527-711HELLA

63280059MAGNETI MARELLIListe

944280802570MAGNETI MARELLI

MRS80257MAGNETI MARELLI

28100-0G040TOYOTAListe

28100-0R010TOYOTA

28100-0R010-84TOYOTA

28100-0R030TOYOTA

28100-0R030-84TOYOTA

28100-R030-84TOYOTA

TS24E3VALEOListe

TS24E30VALEOListe

PRSJ0013EFFE

STRJ0013EFFE

CGB-23190AINDE

RH-420028AINDE

ANM12508ANDEL

ANM12508XANDEL

ASM1062APEC

CST40249ASCASCO

CST40249GSCASCO

CST40249OSCASCO

9732CEVAM

MS428000-4920DESNO

12213EAI

STR90050ELECTROLOG

25-3436ELSTOCK

220664AERA

GS280059-AGHIBAUDI

SG0527GHIBAUDI

SS280059-AGHIBAUDI

J5212121HERTH+BUSS

STV1369KRAUF

201369KUHNER

201369VKUHNER

281000R01084LEXUS

281000R03084LEXUS

336429LOGISTIK

LRS02265LUCAS

LRS2265LUCAS

5040069MEAT & DORIA

NPANSM1062NAPA

88212431POWERMAX

190.571.112.050PSH

190.571.112.058PSH

190.571.112.260PSH

20432942BNREAL

20432942OEREAL

20432942REREAL

6040249.0SANDO

6040249.1SANDO

6040249.4SANDO

S12DE0088A2SIDAT

STX200226STARDAX

STX200226RSTARDAX

STX200818STARDAX

STX200818RSTARDAX

DENDSN984WOODAUTO

STR70287WOODAUTO

 Convient pour :



LEXUS IS 2.2 D [2AD-FTV] 07.2010-

LEXUS IS 220 2.2 D [2AD-FHV] 10.2005



TOYOTA Avensis 2.0 D-4D [1AD-FTV] 11.2011-

TOYOTA RAV4 2.2 D-4D [2AD-FHV] 12.2008-

TOYOTA Avensis 2.2 D-4D [2AD-FTV] 10.2005-

TOYOTA RAV4 2.2 D-4D [2AD-FTV] 03.2006-

TOYOTA RAV4 2.2 D-4D [2AD-FTV] 12.2008-

TOYOTA Avensis 2.2 D-4D CAT [2AD-FHV] 07.2005-

TOYOTA RAV4 2.2 D-4D CAT [2AD-FHV] 03.2006-

TOYOTA Corolla 2.0 D-4D [1AD-FTV] 01.2007-

TOYOTA Auris 2.0 D-4D [1AD-FTV] 03.2007-

TOYOTA Auris 2.2 D [2AD-FHV] 03.2007-

TOYOTA Corolla 2.2 D-4D [2AD-FHV] 11.2006-

TOYOTA Corolla 2.2 D-4D Verso [2AD-FHV] 10.2005-

TOYOTA Corolla 2.2 D-4D Verso [2AD-FTV] 10.2005-

TOYOTA Verso 2.0 D-4D [1AD-FTV] 04.2009-

TOYOTA Verso 2.0 D-4D [1AD-FTV] 11.2012-

TOYOTA Verso 2.2 D-4D [2AD-FHV] 04.2009-

TOYOTA Avensis 2.0 D-4D [1AD-FTV] 03.2006-

TOYOTA Verso 2.2 D-CAT [2AD-FHV] 04.2009

Démarreur Magneti-Marelli 63222005

Référence : S4035

Référence 0E : 63222005

EAN : 5901259422733

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 2.20

Rotation du demarreur CW

Taille A [ mm ] 76.00

Taille B [ mm ] 21.00

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 2

Nombre de trous filetes [ qty. ] 2

L.1 [ mm ] 256.00

O.1 [ mm ] 105.00

C.1 [ mm ] M10x1.5

C.2 [ mm ] M10x1.5



Références démarreurs compatibles

12411466345BMW

12412179676BMW

12412246570BMW

12412246571BMW

12412246574BMW

12412247391BMW

12412247492BMW

12412288166BMW

12412344240BMW

12412446570BMW

12414371646BMW

12417785691BMW

12417785715BMW

12417787925BMW

12419069808BMW

12422242231BMW

2246570BMW

2246571BMW

224739BMW

2247391BMW

2344240BMW

7785691BMW

7785715BMW

7787925BMW

9069808BMW

0986022710BOSCH

113446CARGO

DRS3684DELCO

DSN587DENSO

8EA011611-151HELLA

8EA737706-001HELLA

63114017MAGNETI MARELLIListe

63222005MAGNETI MARELLIListe

944280800610MAGNETI MARELLI

1202141OPEL

1202168OPEL

24454172OPEL

6202017OPEL

6202054OPEL

90465731OPEL

90542412OPEL

93171945OPEL

93175889OPEL

93175907OPEL

9512771OPEL

R1040037OPEL

R1540015OPEL

20513030PRESTOLITE

NAD000090ROVER

NAD000090EROVER

458386VALEO

458496VALEO

726157VALEO

PRSL1063EFFE

STRL1063EFFE

CGB-52417AINDE

RH-420025AINDE

ANM15904XANDEL

ASM1607APEC

AEU1171AUTOELECTRO

CST30114GSCASCO

CST30163ASCASCO

CST30163GSCASCO

CST30163RSCASCO

3182CEVAM

11848EAI

STR9050ELECTROLOG

25-2417ELSTOCK

220607ERA

8080061FRIESEN

CS1171HC PARTS

42632920HERTH+BUSS

101171KUHNER

22.1171LAUBER

22.1171MLAUBER

331136LOGISTIK

LRS01475LUCAS

LRS1475LUCAS

5010248MEAT & DORIA

NPANSM1607NAPA

88212650POWERMAX

210.521.093.010PSH

210.521.093.058PSH

210.521.093.265PSH

210.521.093.605PSH

20404361BNREAL

20404361OEREAL

20404361RCREAL

20404411OEREAL

RNL1171CSRNL

6030114.1SANDO

6030163.0SANDO

6030163.1SANDO

6030163.2SANDO

MAV2400SIOM

SS055SOVEREIGN

STX200028STARDAX

STX200073STARDAX

STX200141STARDAX

STX200141RSTARDAX

STX200166STARDAX

32475RWAI / TRANSPO

STR52024WOODAUTO



 Convient pour :



BMW 730 d 3.0 (E38)[M57D30(306D1)] 08.1998-04.2000

BMW 730 d 3.0 (E38)[M57D30(306D1)] 04.2000-11.2001

BMW X5 3.0 D (E53)[M57D30(306D1)] 04.2001-09.2003

BMW 530 d 3.0 (E39)[M57D30(306D1)] 08.1998-09.2000

BMW 530 d 3.0 (E39)[M57D30(306D1)] 09.1998-06.2003

BMW 530 d 3.0 Touring (E39)[M57D30(306D1)] 08.1998-09.2000

BMW 530 d 3.0 Touring (E39)[M57D30(306D1)] 09.2000-05.2004

BMW 330 d 3.0 (E46)[M57D30(306D1)] 10.1999-02.2005

BMW 330 d 3.0 Touring (E46)[M57D30(306D1)] 10.1999-02.2005

BMW 330 xd 3.0 (E46)[M57D30(306D1)]01.2000-02.2003

BMW 330 xd 3.0 Touring (E46)[M57D30(306D1)] 01.2000-03.2003



LAND ROVER Range Rover 3.0 D 4x4 [306D1] 03.2002-08.2012



Démarreur Magneti-Marelli 63222908

Référence : S4033

Référence 0E : 63222908

EAN : 5901259422719

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 0.80

Rotation du demarreur CW

Taille A [ mm ] 62.00

Taille B [ mm ] 13.00

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 3

L.1 [ mm ] 207.00

O.1 [ mm ] 90.00

O.2 [ mm ] 53.00

O.3 [ mm ] 67.00

C.1 [ mm ] M8x1.25

C.2 [ mm ] M8x1.25

C.3 [ mm ] M8x1.25



Références démarreurs compatibles

110365CARGO

111585CARGO

DRS7041DELCO

DRS7041NDELCO

DRS7041XDELCO

DSN585DENSO

3914191FIAT

3915113FIAT

4229113FIAT

4229114FIAT

4401806FIAT

4468806FIAT

46231500FIAT

46231504FIAT

46231505FIAT

46406970FIAT

46432301FIAT

46465273FIAT

46797350FIAT

5972684FIAT

71721244FIAT

71721245FIAT

71782312FIAT

71782313FIAT

71782314FIAT

7668988FIAT

77175430FIAT

77201430FIAT

7737262FIAT

8EA012526-811HELLA

8EA737273-001HELLA

IS0586ISKRA / LETRIKA

63222836MAGNETI MARELLIListe

63222837MAGNETI MARELLIListe

63222897MAGNETI MARELLIListe

63222905MAGNETI MARELLIListe

63222908MAGNETI MARELLIListe

943222836MAGNETI MARELLI

0003914191VW

0003974104VW

HB90800002VW

HB90800004VW

SE21908000VW

SE21908000AVW

XO39466650VW

XO39741040VW

PRSL1383EFFE

STRL1383EFFE

CGB-52257AINDE

STA0048RBOVEZ

CST30113ASCASCO

CST30113ESCASCO

CST30113GSCASCO

CST30113OSCASCO

CST30113RSCASCO

STR00295ELECTROLOG

STR9076ELECTROLOG

25-2257ELSTOCK

220162AERA

220162RERA

SG0141GHIBAUDI

GS222905-AGPARTS

GS222905M-RGPARTS

SS222905-AGPARTS

SS222905M-RGPARTS

CS1038HC PARTS

CS90HC PARTS

42001222HERTH+BUSS

STE1038KRAUF

101038KUHNER

1090KUHNER

LRS00234LUCAS

LRS234LUCAS

5030230MEAT & DORIA

88212700POWERMAX

500.013.093.050PSH

500.013.093.058PSH

500.013.093.265PSH

500.515.093.265PSH

20404311BNREAL

20404311ELREAL

20404311OEREAL

20404311RCREAL

20404311REREAL

335650RHIAG

6030113.0SANDO

6030113.1SANDO

6030113.2SANDO

6030113.3SANDO

6030113.4SANDO

S12MA0055A2SIDAT

MAV1030ASIOM

STX200183STARDAX

STX200183RSTARDAX

STX200329STARDAX

STX200501STARDAX

30191RWAI / TRANSPO

DENDSN585WOODAUTO

MAHMS382WOODAUTO

STR52001WOODAUTO

STR52020WOODAUTO

 Convient pour :



AUTOBIANCHI A 112 0.9 [A112A5.000] 10.1969-12.1972

AUTOBIANCHI A 112 0.9 [A112A5.000] 01.1976-12.1978

AUTOBIANCHI A 112 0.9 E [A112A5.000] 01.1973-12.1977

AUTOBIANCHI A 112 0.9 Junior [A112A5.000] 07.1975-12.1985

AUTOBIANCHI A 112 0.9 Junior [A112B2.000] 07.1975-12.1985

AUTOBIANCHI A 112 1.0 Abarth [A112A1.000] 09.1971-12.1975

AUTOBIANCHI A 112 1.0 Abarth [A112A2.000] 01.1974-12.1984

AUTOBIANCHI A 112 1.0 E [A112B1.000] 11.1977-12.1985

AUTOBIANCHI A 112 1.0 Elite [A112B1.000] 11.1977-12.1985

AUTOBIANCHI A 112 1.0 LX [A112B1.000] 11.1977-12.1985



FIAT 127 0.9 [100GL.000] 09.1971-12.1984

FIAT Panda 1000 [156A3.000] 01.1985-12.1992

FIAT 127 0.9 [100GL.048] 06.1971-05.1983

FIAT 127P 0.9 [100GL.000] 10.1969-10.1976

FIAT Panda 750 01.1986-01.1995

FIAT Panda 750 [141B.000] 01.1986-07.1992

FIAT Seicento 0.9 [1170A1.046] 11.1997-12.2008

FIAT Panda 750 [156A4.000] 01.1986-10.2003

FIAT Seicento 0.9 [1170A1.046] 01.1998-01.2010

FIAT Panda 750 Cat 01.1995-10.2003

FIAT Cinquecento 0.9 [170A1.000] 07.1991-12.1993

FIAT Panda 800 [100GL6.000] 02.1981-12.1985

FIAT Cinquecento 0.9 i.e. [170A1.046] 07.1991-09.1994

FIAT Panda 900 [100GL3.000] 10.1980-06.1994

FIAT Cinquecento 0.9 i.e. S [1170A1.000] 07.1991-07.1999

FIAT Panda 900 [1170A1.046] 04.1992-12.1996

FIAT Cinquecento 0.9 i.e. S [1170A1.046] 07.1991-07.1999

FIAT Panda 900 [146A.000] 10.1980-06.1994

FIAT Panda 950 4x4 [A112B1.054] 09.1983-12.1986

FIAT Uno 45 0.9 [146A.000] 03.1983-09.1992

FIAT Uno 45 0.9 [146A1.000] 03.1983-09.1992

FIAT Uno 45 i.e. 1.0 [156A2.246] 04.1984-10.1995

FIAT Fiorino 900 [100GL.000] 10.1977-10.1986

FIAT 600 0.9 [1170A1.046] 11.1997-12.2008

FIAT 600 0.9 [1170A1.046] 01.1998-01.2010



INNOCENTI Koral 45 [100GL.064] 01.1990-12.1992



LANCIA A 112 0.9 Junior [A112A.000] 03.1981-06.1986

LANCIA A 112 0.9 Junior [A112A5.000] 03.1981-06.1986

LANCIA A 112 0.9 Junior [A112B2.000] 03.1981-06.1986

LANCIA A 112 1.0 LX [A112B1.000] 03.1984-12.1986



SEAT Ronda 1.2 [124B6.000] 08.1983-05.1985

SEAT Ronda 1.5 [021A2000] 09.1984-12.1986

SEAT Ibiza 1.5 [021A2000] 11.1984-05.1993

SEAT Ronda 1.6 [022A000] 08.1983-09.1985

SEAT Ibiza 1.5 i [021B.2000] 10.1986-05.1993

SEAT Ronda 1.6 [138AR6.000] 08.1983-09.1985

SEAT Ibiza 1.5 i Cat [021C.2000] 10.1986-05.1993

SEAT Ronda 1.7 D [022A.5000] 06.1982-12.1986

SEAT Terra 0.9 [09NCA] 01.1987-12.1995

SEAT Terra 0.9 Cat [09NCB] 02.1992-12.1994

SEAT Ibiza 1.2 [021A1000] 11.1984-12.1993

SEAT Malaga 1.2 [021A1000] 05.1985-12.1993

SEAT Malaga 1.5 [021A2000] 05.1985-12.1993

SEAT Malaga 1.5 i [021B.2000] 01.1987-12.1993

SEAT Malaga 1.5 i Cat [021A2000] 10.1986-12.1993

SEAT Malaga 1.5 i Cat [021C.2000] 10.1986-12.1993

SEAT Malaga 1.5 i Cat [021D.2000] 10.1986-12.1993

SEAT Marbella 0.8 [08NCA] 08.1986-12.1993

SEAT Marbella 0.8 [08NCA] 01.1987-12.1993

SEAT Marbella 0.9 [09NCA] 01.1987-12.1993

SEAT 127 0.9 [A112A5.000] 04.1972-12.1982

SEAT Marbella 0.9 [100GL7000] 01.1987-12.1993

SEAT Marbella 0.9 Cat [08NCB] 11.1996-10.1998

SEAT Ibiza 1.2 i [021C.1000] 01.1989-05.1993

SEAT Marbella 0.9 Cat [09NCB] 01.1987-12.1993

SEAT Marbella 0.9 Cat [09NCB] 01.1990-11.1996

SEAT Marbella 0.9 Cat [100GL7000] 01.1990-11.1996

SEAT Fura 0.9 [09NCA] 03.1984-12.1986

SEAT Fura 0.9 [100GL3000] 01.1982-06.1986

SEAT Fura 0.9 [100GL7000] 03.1984-12.1986

SEAT Fura 0.9 [HB90] 01.1982-06.1986

SEAT Ibiza 0.9 [09NCA] 08.1990-05.1993

SEAT Ibiza 0.9 [146A000] 08.1986-05.1993

SEAT Panda 0.9 [100GL3000] 10.1980-12.1986

SEAT Ibiza 0.9 [146A000] 08.1990-05.1993

SEAT Ronda 1.2 [021A1000] 10.1984-12.1986



Démarreur Magneti-Marelli 63113001

Référence : S4031

Référence 0E : 63113001

EAN : 5901259422696

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.80

Rotation du demarreur CW

Taille A [ mm ] 76.00

Taille B [ mm ] 21.00

Nombre de dents [ qty. ] 11

Nombre de dents (s'insère dans) [ qty. ] 11

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 2

L.1 [ mm ] 226.00

O.1 [ mm ] 75.00

O.2 [ mm ] 105.00

O.3 [ mm ] 75.00

C.1 [ mm ] 7.50

C.2 [ mm ] M10x1.5

C.3 [ mm ] M10x1.5



Références démarreurs compatibles

12412179675BMW

12412247063BMWListe

12412249295BMWListe

12412344238BMW

12414496934BMW

2179675BMW

2247063BMW

2249295BMW

2344238BMW

4496934BMW

0986022581BOSCH

113925CARGO

F032113925CARGO

DRS3929DELCO

DRS3929XDELCO

DSN504DENSO

8EA011610-971HELLA

63113001MAGNETI MARELLIListe

63193001MAGNETI MARELLIListe

944280801910MAGNETI MARELLI

MRS80191MAGNETI MARELLI

PRSL0693EFFE

PRSL069M3EFFE

PRSL069U3EFFE

STRL0693EFFE

STRL069R3EFFE

STRL069U3EFFE

AZMT-53-010-1178A.Z. MEISTERTEILE

AC-CBS1265ACAUTO

26-3000CTAINDE

AI-80022AINDE

CGB-63000AINDE

10439853ALANKO

ANM16149ANDEL

ANM16149XANDEL

A22580ATL AUTOTECHNIK

AEU1265AUTOELECTRO

SMM154AUTOTEAM

SMM154AAUTOTEAM

BOL-C011104BOLK

BST2346BORG & BECK

S102395BTS TURBO

CST30154ASCASCO

CST30154GSCASCO

CST30154RSCASCO

3184CEVAM

CMA-621013COMLINE

315120112DRI

11974EAI

STR9014ELECTROLOG

26-3000ELSTOCK

220508ERA

220508AERA

1638123580EUROREPAR

11022580EUROTEC

105158FARCOM

8080191FRIESEN

SG0138GHIBAUDI

SG0138RBGHIBAUDI

GS193001-AGPARTS

SS193001-AGPARTS

CS1265HC PARTS

3115115HENKEL PARTS

3115116HENKEL PARTS

3115118HENKEL PARTS

3115119HENKEL PARTS

42063193HERTH+BUSS

H5030092HOFFER

10030154AVITAB AUTOMOTIVE

10030154RVITAB AUTOMOTIVE

STE1265KRAUF

101265KUHNER

101265DKUHNER

LES0399LE PART

331391LOGISTIK

LRS01791LUCAS

LRS1791LUCAS

5030092MEAT & DORIA

12135445MTR

4722631NK

88212421POWERMAX

IR9500PROTECH

210.520.112.050PSH

210.520.112.340PSH

210.520.112.460PSH

210.520.112.461PSH

QRS2253QUINTON HAZELL

20404451BNREAL

20404451OEREAL

20404451RCREAL

011-001-000533RREMANTE

311466RHIAG

6030154.0SANDO

6030154.1SANDO

6030154.2SANDO

S12MA0112SIDAT

S12MA0112A2SIDAT

MAV2360SIOM

MAV2360ASIOM

MAV2360RSIOM

BM9021SNRA

STX200052STARDAX

STX200052RSTARDAX

974ST11STARTCAR

TT16364TESLA

TT16364PROTESLA

ST02398TMI

32791NWAI / TRANSPO

WG2013065WILMINK GROUP

WG2196717WILMINK GROUP

DENDSN504WOODAUTO

STR52029WOODAUTO



 Convient pour :



BMW 520 2.0 D (E39)[M47D20(204D1)] 02.2000-06.2003

BMW 520 2.0 D (E39)[M47D20(204D1)] 02.2000-09.2003

BMW 318 2.0 D (E46)[M47D20(204D1)] 09.2001-03.2003

BMW 318 2.0 D (E46)[M47D20(204D1)] 10.2002-03.2003

BMW 320 2.0D (E46)[M47D20(204D1)] 02.1998-08.2001

BMW 320 2.0 D (E46)[M47D20(204D1)] 04.1998-09.2001

BMW 320 2.0 D (E46)[M47D20(204D1)] 03.2000-09.2001

Démarreur Magneti-Marelli 2873K405

Référence : S4030

Référence 0E : 2873K405

EAN : 5901259422672

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 3.00

Rotation du demarreur CW

Taille A [ mm ] 89.00

Taille B [ mm ] 30.50

Nombre de dents [ qty. ] 10

Nombre de dents (s'insère dans) [ qty. ] 10

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 0

L.1 [ mm ] 292.00

O.1 [ mm ] 127.00

O.2 [ mm ] 90.00

O.3 [ mm ] 90.00

C.1 [ mm ] 11.50

C.2 [ mm ] 11.50

C.3 [ mm ] 11.50



Références démarreurs compatibles

7169477BOBCAT

113655CARGO

074000-0000DENSO

428000-1290DENSO

11.131.781ISKRA / LETRIKAListe

AZE4173ISKRA / LETRIKAListe

IS1201ISKRA / LETRIKAListe

E730163011KUBOTA

063280041010MAGNETI MARELLIListe

63280041MAGNETI MARELLIListe

944288183200MAGNETI MARELLI

MRS18320MAGNETI MARELLI

MSN8041MAGNETI MARELLI

72736027MAHLE

MS399MAHLEListe

3786310M1MASSEY FERGUSON

M1T84181MITSUBISHIListe

2872K405PERKINS

2873K405PERKINSListe

2873K624PERKINS

2873K625PERKINSListe

2873K626PERKINS

2873K634PERKINS

35263300PRESTOLITE

860715PRESTOLITE

PRSS0233EFFE

STRS0233EFFE

4227054M91AGCO

CGB-93405AINDE

AEX1050AUTOELECTRO

CST21108ASCASCO

CST21108GSCASCO

CST30170ASCASCO

CST30170GSCASCO

CST30170ISCASCO

8719RCEVAM

26.0005CQ

26.0005MCQ

STR9009ELECTROLOG

25-4097ELSTOCK

220702ERA

SG0133GHIBAUDI

714/40231JCB

71440231JCB

71440531JCB

71440536JCB

E7100-63012KIOTI

STE3655KRAUF

254193KUHNER

254193KKUHNER

254193LKUHNER

254193MKUHNER

LRS02425LUCAS

LRS2425LUCAS

88213712POWERMAX

700.504.103.050PSH

700.504.103.090PSH

700.504.103.098PSH

700.504.103.208PSH

700.504.103.265PSH

700.504.103.311PSH

20404071BNREAL

20404071ITREAL

20404071OEREAL

20419801BNREAL

20419801OEREAL

RNL2873K405RNL

190-80101ROBERT'S

6021108.0SANDO

6021108.1SANDO

6030170.0SANDO

6030170.1SANDO

6030170.5SANDO

MAV231080SIOM

MAV321700SIOM

STX201271STARDAX

STX210177STARDAX

STX210177RSTARDAX

18940NWAI / TRANSPO

91-19-2515WILSON

STR52055WOODAUTO

STR70057WOODAUTO



Convient pour :



JCB 526S 4.4 [1104C-44R] 01.1997



KIOTI DK65 2.7 [903.27T] 01.2002-01.2007

KIOTI DK65C 2.7 [903.27T] 01.2002-01.2007

KIOTI DK90 4.4 [1104D-44T] 01.2007



PERKINS 1103D-33 01.2004

Démarreur Magneti-Marelli 63103031

Référence : S4025

Référence 0E : 63103031

EAN : 5901259422597

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 0.90

Rotation du demarreur CW

Taille A [ mm ] 64.00

Taille B [ mm ] 11.00

Nombre de dents [ qty. ] 8

Nombre de dents (s'insère dans) [ qty. ] 8. 9. 10

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 1

L.1 [ mm ] 207.00

O.1 [ mm ] 75.00

O.2 [ mm ] 109.00

O.3 [ mm ] 75.00

C.1 [ mm ] 6.50

C.2 [ mm ] 9.00

C.3 [ mm ] M8x1.25



Références démarreurs compatibles

0986021590BOSCH

F000AL0320BOSCHListe

F042200132BOSCH

113962CARGO

F032113962CARGO

DRS0443DELCO

DRS3887DELCO

DRT2411DELCO

DRT2411NDELCO

46548653FIAT

46548654FIAT

46813058FIAT

46813064FIAT

46816793FIAT

46816973FIAT

51772325FIAT

517723250FIAT

51812501FIAT

51832950FIAT

51832951FIAT

51832952FIAT

51890631FIAT

51890632FIAT

51890634FIAT

55192483FIAT

55192484FIAT

55193355FIAT

55193356FIAT

55201360FIAT

71722351FIAT

71722352FIAT

71723371FIAT

71782367FIAT

71784019FIAT

71784985FIAT

71785105FIAT

71789051FIAT

71789052FIAT

71789053FIAT

71789435FIAT

71789436FIAT

71789437FIAT

71789526FIAT

71793620FIAT

71793783FIAT

71794760FIAT

71796990FIAT

1542468FORD

1567033FORD

1726802FORD

9S51-11000-AAFORD

9S51-11000-ABFORD

BS51-11000-CAFORD

8EA012526-471HELLA

8EA738258-101HELLA

136908HITACHI

2506908HITACHI

2506909HITACHI

S114-905HITACHIListe

S114-906HITACHIListe

S114-938HITACHIListe

S114-943HITACHIListe

S114-943AHITACHIListe

S114-947HITACHIListe

S114-948HITACHIListe

S114-965HITACHI

063280060010MAGNETI MARELLI

63101021MAGNETI MARELLIListe

63102022MAGNETI MARELLIListe

63103031MAGNETI MARELLIListe

63280042MAGNETI MARELLIListe

944280802020MAGNETI MARELLI

MRS80202MAGNETI MARELLI

MSN8060MAGNETI MARELLI

1202291OPEL

1202503OPEL

95512962OPEL

95520336OPEL

95523328OPEL

95523405OPEL

438144VALEOListe

458162VALEOListe

726079VALEO

726879VALEO

D7E52VALEO

PRSL0893EFFE

STRL0893EFFE

AZMT-53-010-1479A.Z. MEISTERTEILE

AC-CBS1379ACAUTO

10438883ALANKO

10439832ALANKO

11439832ALANKO

A77960ATL AUTOTECHNIK

SHI151AUTOTEAM

SHI151AAUTOTEAM

STA0124RBOVEZ

CST30158ASCASCO

CST30158GSCASCO

3160CEVAM

CMA-621124COMLINE

318092082DRI

11969EAI

STR3219ELECTROLOG

25-3283ELSTOCK

EZ0339ELTA AUTOMOTIVE

220376ERA

220421ERA

220904ERA

1638122880EUROREPAR

11021590EUROTEC

2-0018EXACT

106377FARCOM

8080202FRIESEN

SG0131GHIBAUDI

SG0136GHIBAUDI

CS1379HC PARTS

3122923HENKEL PARTS

42114905HERTH+BUSS

H5020282HOFFER

10020151AVITAB AUTOMOTIVE

10020151OVITAB AUTOMOTIVE

101379BKUHNER

101379HKUHNER

101379KKUHNER

101379RKUHNER

101379VKUHNER

10796KUHNER

10796HKUHNER

10796VKUHNER

255621HKUHNER

LES0618LE PART

331794LOGISTIK

LRS01726LUCAS

LRS1726LUCAS

5015028MEAT & DORIA

5020282MEAT & DORIA

4721640NK

8212885POWERMAX

88212885POWERMAX

IR9381PROTECH

500.542.093.000PSH

500.542.093.270PSH

500.542.093.280PSH

500.542.093.461PSH

500.542.093.500PSH

20404851BNREAL

20404851OEREAL

011-001-000347RREMANTE

2S0115RIDEX

2S0115RRIDEX

2S0710RIDEX

STM302ROLLCO

6030158.0SANDO

6030158.1SANDO

S12HT0019SIDAT

S12HT0019A2SIDAT

MAV221500SIOM

MAV221510SIOM

MAV221520SIOM

FI9073SNRA

STX200032STARDAX

STX200032RSTARDAX

SKSTR-0330114STARK

SKSTR-03330735STARK

969ST11STARTCAR

TT16327TESLA

RE83585NTHE NEW LINE

ST01342TMI

V24-12-50001VEMO

32726NWAI / TRANSPO

32726RWAI / TRANSPO

32727RWAI / TRANSPO

WG2012918WILMINK GROUP

WG2012919WILMINK GROUP

WG2174906WILMINK GROUP

STR52064WOODAUTO



Convient pour :



FIAT Bravo 1.4 T-JET 09.2007-

FIAT Linea 1.4 06.2007-

FIAT Grande Punto 1.2 [199A4.4000] 10.2005-

FIAT Linea 1.4 T-Jet 09.2007-

FIAT Punto 1.4 09.2003-

FIAT Panda 1.4 [169A3.000] 10.2006-

FIAT Panda 1.1 [187A.1000] 09.2003-

FIAT Grande Punto 1.4 [350A1.1000] 10.2005-

FIAT Grande Punto 1.4 16V 10.2005-

FIAT Grande Punto 1.4 T-Jet 09.2007-

FIAT Panda 1.2 [188A.4000] 09.2003-

FIAT Idea 1.2 16V [188A5.000] 01.2004-

FIAT Panda 1.2 4x4 [188A4.000] 10.2004-

FIAT 500 1.2 [169A4.000] 10.2007-

FIAT Stilo 1.2 16V [188A5.000] 10.2001-12.2003

FIAT Stilo 1.4 16V [192B2.000] 03.2005-

FIAT Doblo 1.4 [350A1.000] 10.2005-

FIAT Bravo 1.4 [182A5.000] 04.2007-

FIAT Idea 1.4 [350A1.000] 10.2005-

FIAT Stilo 1.4 16V [843A1.000] 01.2004-

FIAT Idea 1.4 16V [843A1.000] 01.2004-

FIAT 500 1.4 [169A3.000] 10.2007



LANCIA Ypsilon 1.2 [188A4.000] 06.2003-

LANCIA Ypsilon 1.2 [188A5.000] 10.2003-

LANCIA Ypsilon 1.4 [843A1.000] 10.2003-

LANCIA Musa 1.4 [350A1.000] 09.2005-

LANCIA Musa 1.4 [843A1.000] 10.2004

Démarreur Magneti-Marelli 63103031

Référence : S4025

Référence 0E : 63103031

EAN : 5901259422597

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 0.90

Rotation du demarreur CW

Taille A [ mm ] 64.00

Taille B [ mm ] 11.00

Nombre de dents [ qty. ] 8

Nombre de dents (s'insère dans) [ qty. ] 8. 9. 10

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 1

L.1 [ mm ] 207.00

O.1 [ mm ] 75.00

O.2 [ mm ] 109.00

O.3 [ mm ] 75.00

C.1 [ mm ] 6.50

C.2 [ mm ] 9.00

C.3 [ mm ] M8x1.25



Références démarreurs compatibles

0986021590BOSCH

F000AL0320BOSCHListe

F042200132BOSCH

113962CARGO

F032113962CARGO

DRS0443DELCO

DRS3887DELCO

DRT2411DELCO

DRT2411NDELCO

46548653FIAT

46548654FIAT

46813058FIAT

46813064FIAT

46816793FIAT

46816973FIAT

51772325FIAT

517723250FIAT

51812501FIAT

51832950FIAT

51832951FIAT

51832952FIAT

51890631FIAT

51890632FIAT

51890634FIAT

55192483FIAT

55192484FIAT

55193355FIAT

55193356FIAT

55201360FIAT

71722351FIAT

71722352FIAT

71723371FIAT

71782367FIAT

71784019FIAT

71784985FIAT

71785105FIAT

71789051FIAT

71789052FIAT

71789053FIAT

71789435FIAT

71789436FIAT

71789437FIAT

71789526FIAT

71793620FIAT

71793783FIAT

71794760FIAT

71796990FIAT

1542468FORD

1567033FORD

1726802FORD

9S51-11000-AAFORD

9S51-11000-ABFORD

BS51-11000-CAFORD

8EA012526-471HELLA

8EA738258-101HELLA

136908HITACHI

2506908HITACHI

2506909HITACHI

S114-905HITACHIListe

S114-906HITACHIListe

S114-938HITACHIListe

S114-943HITACHIListe

S114-943AHITACHIListe

S114-947HITACHIListe

S114-948HITACHIListe

S114-965HITACHI

063280060010MAGNETI MARELLI

63101021MAGNETI MARELLIListe

63102022MAGNETI MARELLIListe

63103031MAGNETI MARELLIListe

63280042MAGNETI MARELLIListe

944280802020MAGNETI MARELLI

MRS80202MAGNETI MARELLI

MSN8060MAGNETI MARELLI

1202291OPEL

1202503OPEL

95512962OPEL

95520336OPEL

95523328OPEL

95523405OPEL

438144VALEOListe

458162VALEOListe

726079VALEO

726879VALEO

D7E52VALEO

PRSL0893EFFE

STRL0893EFFE

AZMT-53-010-1479A.Z. MEISTERTEILE

AC-CBS1379ACAUTO

10438883ALANKO

10439832ALANKO

11439832ALANKO

A77960ATL AUTOTECHNIK

SHI151AUTOTEAM

SHI151AAUTOTEAM

STA0124RBOVEZ

CST30158ASCASCO

CST30158GSCASCO

3160CEVAM

CMA-621124COMLINE

318092082DRI

11969EAI

STR3219ELECTROLOG

25-3283ELSTOCK

EZ0339ELTA AUTOMOTIVE

220376ERA

220421ERA

220904ERA

1638122880EUROREPAR

11021590EUROTEC

2-0018EXACT

106377FARCOM

8080202FRIESEN

SG0131GHIBAUDI

SG0136GHIBAUDI

CS1379HC PARTS

3122923HENKEL PARTS

42114905HERTH+BUSS

H5020282HOFFER

10020151AVITAB AUTOMOTIVE

10020151OVITAB AUTOMOTIVE

101379BKUHNER

101379HKUHNER

101379KKUHNER

101379RKUHNER

101379VKUHNER

10796KUHNER

10796HKUHNER

10796VKUHNER

255621HKUHNER

LES0618LE PART

331794LOGISTIK

LRS01726LUCAS

LRS1726LUCAS

5015028MEAT & DORIA

5020282MEAT & DORIA

4721640NK

8212885POWERMAX

88212885POWERMAX

IR9381PROTECH

500.542.093.000PSH

500.542.093.270PSH

500.542.093.280PSH

500.542.093.461PSH

500.542.093.500PSH

20404851BNREAL

20404851OEREAL

011-001-000347RREMANTE

2S0115RIDEX

2S0115RRIDEX

2S0710RIDEX

STM302ROLLCO

6030158.0SANDO

6030158.1SANDO

S12HT0019SIDAT

S12HT0019A2SIDAT

MAV221500SIOM

MAV221510SIOM

MAV221520SIOM

FI9073SNRA

STX200032STARDAX

STX200032RSTARDAX

SKSTR-0330114STARK

SKSTR-03330735STARK

969ST11STARTCAR

TT16327TESLA

RE83585NTHE NEW LINE

ST01342TMI

V24-12-50001VEMO

32726NWAI / TRANSPO

32726RWAI / TRANSPO

32727RWAI / TRANSPO

WG2012918WILMINK GROUP

WG2012919WILMINK GROUP

WG2174906WILMINK GROUP

STR52064WOODAUTO



Convient pour :



FIAT Bravo 1.4 T-JET 09.2007-

FIAT Linea 1.4 06.2007-

FIAT Grande Punto 1.2 [199A4.4000] 10.2005-

FIAT Linea 1.4 T-Jet 09.2007-

FIAT Punto 1.4 09.2003-

FIAT Panda 1.4 [169A3.000] 10.2006-

FIAT Panda 1.1 [187A.1000] 09.2003-

FIAT Grande Punto 1.4 [350A1.1000] 10.2005-

FIAT Grande Punto 1.4 16V 10.2005-

FIAT Grande Punto 1.4 T-Jet 09.2007-

FIAT Panda 1.2 [188A.4000] 09.2003-

FIAT Idea 1.2 16V [188A5.000] 01.2004-

FIAT Panda 1.2 4x4 [188A4.000] 10.2004-

FIAT 500 1.2 [169A4.000] 10.2007-

FIAT Stilo 1.2 16V [188A5.000] 10.2001-12.2003

FIAT Stilo 1.4 16V [192B2.000] 03.2005-

FIAT Doblo 1.4 [350A1.000] 10.2005-

FIAT Bravo 1.4 [182A5.000] 04.2007-

FIAT Idea 1.4 [350A1.000] 10.2005-

FIAT Stilo 1.4 16V [843A1.000] 01.2004-

FIAT Idea 1.4 16V [843A1.000] 01.2004-

FIAT 500 1.4 [169A3.000] 10.2007



LANCIA Ypsilon 1.2 [188A4.000] 06.2003-

LANCIA Ypsilon 1.2 [188A5.000] 10.2003-

LANCIA Ypsilon 1.4 [843A1.000] 10.2003-

LANCIA Musa 1.4 [350A1.000] 09.2005-

LANCIA Musa 1.4 [843A1.000] 10.2004

Démarreur Magneti-Marelli MT72AB

Référence : S4021

Référence 0E : MT72AB

EAN : 5901259422559

Caractéristiques :

Tension [ V ] 24

Puissance [ kW ] 3.20

Rotation du demarreur CW

Taille A [ mm ] 110.00

Taille B [ mm ] 27.50

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 0

L.1 [ mm ] 297.00

O.1 [ mm ] 147.00

O.2 [ mm ] 104.00

O.3 [ mm ] 104.00

C.1 [ mm ] 12.50

C.2 [ mm ] 12.50

C.3 [ mm ] 12.50



Références démarreurs compatibles

0001363101BOSCHListe

0001363111BOSCHListe

0986011160BOSCH

0986011161BOSCH

110517CARGO

1516715RDAF

19024242DELCO

DRS1160DELCO

42498142FIAT

42498230FIAT

4706931FIAT

4752403FIAT

6706931FIAT

77050561FIAT

77080560FIAT

77080561FIAT

929162FIAT

8EA012586-061HELLA

11.130.146ISKRA / LETRIKA

11.130.216ISKRA / LETRIKA

AZJ3520ISKRA / LETRIKA

AZJ3542ISKRA / LETRIKAListe

IS0216ISKRA / LETRIKA

2997051IVECO

4744811IVECO

4807377IVECO

504038038IVECO

063217226010MAGNETI MARELLI

63217201MAGNETI MARELLIListe

63217225MAGNETI MARELLIListe

63217226MAGNETI MARELLIListe

943202311010MAGNETI MARELLI

MSN237MAGNETI MARELLI

MSRC231MAGNETI MARELLI

MT72ABMAGNETI MARELLIListe

72736017MAHLE

MS389MAHLEListe

20500839PRESTOLITE

455520VALEO

PRSL0223EFFE

STRL022M3EFFE

AC-CBS0231ACAUTO

10440166ALANKO

ANM13380ANDEL

A11160ATL AUTOTECHNIK

S100815BTS TURBO

CST10736ASCASCO

CST30600ASCASCO

CST30600GSCASCO

CST30600OSCASCO

8651CEVAM

33345EAI

12080EFELListe

STR90015ELECTROLOG

45-0345ELSTOCK

220262ERA

103429FARCOM

8811160FRIESEN

SG0059GHIBAUDI

SG0059RBGHIBAUDI

CS231HC PARTS

3118886HENKEL PARTS

3118888HENKEL PARTS

3118890HENKEL PARTS

H5110001HOFFER

10010736AVITAB AUTOMOTIVE

10030600AVITAB AUTOMOTIVE

10030600OVITAB AUTOMOTIVE

10231KUHNER

10231MKUHNER

10231MHKUHNER

LRS00839LUCAS

LRS839LUCAS

5110001MEAT & DORIA

430090MEC DIESEL

430090MMEC DIESEL

PTC-4194POWER TRUCK

88212843POWERMAX

IR8224PROTECH

501.001.093.010PSH

501.001.093.016PSH

501.001.093.215PSH

501.001.093.311PSH

20401637BNREAL

20404006BNREAL

20404006OEREAL

20404006REREAL

011-001-000582RREMANTE

182-30301ROBERT'S

6010736.0SANDO

6030600.0SANDO

6030600.1SANDO

6030600.4SANDO

S24BH0157A2SIDAT

PL9012SNRA

STX200311STARDAX

345ST33STARTCAR

ST02470TMI

004691200XUNIC-SIMCA

18031NWAI / TRANSPO

WG2174921WILMINK GROUP

STR22005WOODAUTO

Convient pour :



IVECO 8041 3.7 [8041.04..] 07.1983-12.1984

IVECO 8041 3.9 [8041.05..] 10.1989-12.2000

IVECO 75 E 12 4.0 [8040.25X.4000TC] 01.1991-05.1996

IVECO 75 E 14 4.0 [8040.45.4000TCA] 01.1991-12.1993

IVECO 75 E 14 4.0 [8040.45.4180TCA] 01.1991-08.2000

IVECO 50-8 3.7 [8040.04.200] 01.1983-12.1986

IVECO 50-9 3.9 [8040.05.230] 01.1987-03.1991

IVECO 60 E 10 4.0 [8040.25B.4200LTC] 01.1991-05.1996

IVECO 60 E 12 4.0 [8040.25X.4000TC] 01.1991-05.1996

IVECO 60 E 14 4.0 [8040.45.4000TCA] 01.1991-05.1996

IVECO 60-11 3.9 [8040.25.230] 01.1987-03.1991

IVECO 60-8 3.7 [8040.04.200] 01.1979-04.1983

IVECO 60-9 3.9 [8040.05.200] 09.1988-12.1992

IVECO 65 E 10 4.0 [8040.25B.4200LTC] 01.1991-05.1996

IVECO 65 E 12 4.0 [8040.25X.4000TC] 01.1991-05.1996

IVECO 65 E 14 4.0 [8040.45.4000TCA] 01.1991-06.1996

IVECO 65-12 3.9 [8040.25.200] 01.1987-03.1991

IVECO 65-9 3.9 [8040.05.230] 01.1987-03.1991

IVECO 79-12 3.9 [8040.25.200][8040.25.220] 01.1987-03.1991
