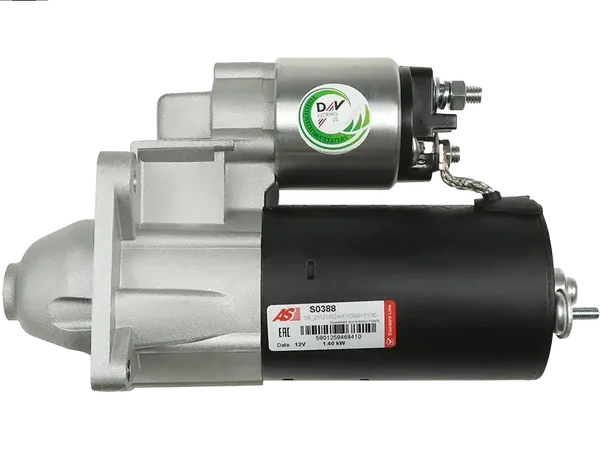

Démarreur Bosch 0001108159

Démarreur Bosch 0001108159

Référence : S0388

Référence OE : 0001108159

EAN: 5901259468410

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 1.40

Rotation du demarreur CW

Taille A [ mm ] 76.00

Taille B [ mm ] 10.50

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 3

Nombre de trous filetes [ qty. ] 0

L.1 [ mm ] 243.00

O.1 [ mm ] 73.00

O.2 [ mm ] 114.00

O.3 [ mm ] 73.00

C.1 [ mm ] 8.50

C.2 [ mm ] 8.50

C.3 [ mm ] 8.50

Balais charbons : BSX159-160

Références démarreurs compatibles :

60814706ALFA ROMEOListe

0001108048BOSCHListe

0001108126BOSCHListe

0001108136BOSCHListe

0001108159BOSCHListe

0001108225BOSCHListe

DRS5600DELCO

195100503000FIAT

46414831FIAT

51832955FIAT

55193410FIAT

551934100FIAT

55195503FIAT

551955030FIAT

60512847FIAT

605128470FIAT

60585343FIAT

60655876FIAT

60813460FIAT

60875810FIAT

60875811FIAT

71723347FIAT

71782389FIAT

71786192FIAT

71791039FIAT

71794175FIAT

77274850FIAT

11.139.310ISKRA / LETRIKA

AZE2124ISKRA / LETRIKA

20500742PRESTOLITE

STRS1823EFFE

ANM17820XANDEL

AES7142AUTOELECTRO

CST10206ASCASCO

CST10206GSCASCO

CST10207ASCASCO

3807CEVAM

11497EAI

STR10306ELECTROLOG

STR1138ELECTROLOG

STR1703ELECTROLOG

25-0218ELSTOCK

220143ERA

8015600FRIESEN

CS585HC PARTS

10585KUHNER

22.0585LAUBER

22.0585MLAUBER

330737LOGISTIK

LRS00742LUCAS

LRS742LUCAS

8212296POWERMAX

88212296POWERMAX

100.505.093PSH

100.505.093.461PSH

100.505.093.608PSH

100.505.093.945PSH

20401602BNREAL

20401602OEREAL

20401702BNREAL

6010206SANDO

6010207SANDO

S12BH0400A2SIDAT

MAV6330SIOM

SS112SOVEREIGN

SS129SOVEREIGN

STX200265STARDAX

STX200265RSTARDAX

17225NWAI / TRANSPO

STR50432WOODAUTO

Convient pour :

ALFA ROMEO 155 (167_) 1.7 T.S. (167.A4D, 167.A4H) AR67105 04.1993 - 04.1996

ALFA ROMEO 155 (167_) 1.7 T.S. (167.A4G) AR67103 04.1993 - 04.1996

ALFA ROMEO 155 (167_) 1.8 T.S. (167.A4C, 167.A) AR67402 02.1992 - 12.1997

ALFA ROMEO 155 (167_) 1.8 T.S. (167A4) AR67101 02.1992 - 05.1994

ALFA ROMEO 155 (167_) 1.8 T.S. (167A4) AR67102 02.1992 - 05.1994

ALFA ROMEO 155 (167_) 1.8 T.S. Sport (167.A4A, 167.A4C, 167.A4E) AR67101 03.1992 - 12.1996

ALFA ROMEO 155 (167_) 1.8 T.S. Sport (167.A4A, 167.A4C, 167.A4E) AR67102 03.1992 - 12.1996

ALFA ROMEO 164 (164_) 2.0 (164A2C) AR06416 06.1987 - 09.1998

ALFA ROMEO 155 (167_) 2.0 T.S. (167.A2A, 167.A2D) AR67201 02.1992 - 05.1995

ALFA ROMEO 155 (167_) 2.0 T.S. (167.A2A, 167.A2D) AR67202 02.1992 - 05.1995

ALFA ROMEO 155 (167_) 2.0 T.S. (167.A2D) AR67201 02.1992 - 01.1995

ALFA ROMEO 155 (167_) 2.0 T.S. (167.A2D) AR67202 02.1992 - 01.1995

ALFA ROMEO 164 (164_) 2.0 Twin Spark (164.A2C, 164.A2L, 164A2H) AR06416 06.1987 - 08.1992

ALFA ROMEO 164 (164_) 2.0 Twin Spark (164.A2C, 164.A2L, 164A2H) AR06420 06.1987 - 08.1992

ALFA ROMEO 164 (164_) 2.0 Twin Spark (164.A2H, 164.A2) AR06420 06.1987 - 09.1992

ALFA ROMEO 164 (164_) 2.0 Twin Spark (164.H3) AR64103 09.1992 - 09.1998

ALFA ROMEO 166 (936_) 2.0 V6 (936A3___) AR34102 09.1998 - 10.2000

ALFA ROMEO 164 (164_) 2.0 V6 Turbo (164.A2G, 164.A2F) AR64101 03.1991 - 09.1992

ALFA ROMEO 164 (164_) 2.0 V6 Turbo (164.K3) AR64102 09.1992 - 09.1998

ALFA ROMEO GTV (916_) 2.0 V6 Turbo (916.C2A) AR16202 06.1995 - 09.1998

ALFA ROMEO SPIDER (916_) 2.0 V6 Turbo (916S2A) AR16202 05.1998 - 04.2005

ALFA ROMEO 164 (164_) 2.5 V6 (164A1C) AR66201 09.1992 - 09.1998

ALFA ROMEO 155 (167_) 2.5 V6 (167.A1C, 167.A1) AR67301 03.1992 - 05.1995

ALFA ROMEO 155 (167_) 2.5 V6 (167.A1C, 167.A1E) AR67302 09.1992 - 12.1997

ALFA ROMEO 155 (167_) 2.5 V6 (167.A1C, 167.A1E) AR67303 09.1992 - 12.1997

ALFA ROMEO 156 Sportwagon (932_) 2.5 V6 24V (932A1) AR32401 02.1997 - 08.2003

ALFA ROMEO 156 (932_) 2.5 V6 24V (932A1) AR32401 09.1997 - 09.2002

ALFA ROMEO 156 (932_) 2.5 V6 24V (932A1) AR32402 09.1997 - 09.2002

ALFA ROMEO 156 (932_) 2.5 V6 24V (932A11_) AR32405 10.2000 - 09.2005

ALFA ROMEO 156 Sportwagon (932_) 2.5 V6 24V (932B1100) AR32405 02.1997 - 05.2006

ALFA ROMEO 166 (936_) 2.5 V6 24V (936A2___) AR34201 09.1998 - 12.2006

ALFA ROMEO 166 (936_) 2.5 V6 24V (936A21__) AR36201 10.2000 - 06.2007

ALFA ROMEO 164 (164_) 3.0 (164A) AR06410 11.1987 - 09.1991

ALFA ROMEO 164 (164_) 3.0 (164AG) AR06410 09.1990 - 12.1993

ALFA ROMEO 164 (164_) 3.0 (164H1) AR64304 04.1993 - 02.1995

ALFA ROMEO 164 (164_) 3.0 24V (164.K1) AR64306 09.1992 - 09.1998

ALFA ROMEO 164 (164_) 3.0 24V (164.K1) AR66301 09.1992 - 09.1998

ALFA ROMEO 164 (164_) 3.0 24V (164.K1) AR66302 09.1992 - 09.1998

ALFA ROMEO 164 (164_) 3.0 24V (164K1G, 164K1F) AR66302 03.1995 - 10.1997

ALFA ROMEO 164 (164_) 3.0 24V Q4 (164.K1M, 164.K1C) AR64307 02.1994 - 09.1998

ALFA ROMEO 164 (164_) 3.0 24V Q4 (164.K1M, 164.K1C) AR64308 02.1994 - 09.1998

ALFA ROMEO 164 (164_) 3.0 24V QV (164.H1) AR64304 09.1992 - 09.1998

ALFA ROMEO 164 (164_) 3.0 24V QV All-wheel Drive (164K1H) AR64304 11.1992 - 10.1997

ALFA ROMEO 164 (164_) 3.0 24V QV All-wheel Drive (164K1H) AR64307 11.1992 - 10.1997

ALFA ROMEO 164 (164_) 3.0 i.e. QV (164.AG) AR06430 09.1990 - 09.1992

ALFA ROMEO 164 (164_) 3.0 i.e. QV (164.AG) AR64301 09.1990 - 09.1992

ALFA ROMEO 164 (164_) 3.0 V6 (164.A) AR06410 06.1987 - 09.1992

ALFA ROMEO 164 (164_) 3.0 V6 (164.AD, 164.AH, 164.AB) AR06412 06.1987 - 09.1992

ALFA ROMEO 164 (164_) 3.0 V6 (164.H1A, 164.H1B, 164.K1P) AR64303 09.1992 - 09.1998

ALFA ROMEO 164 (164_) 3.0 V6 (164.H1A, 164.H1B, 164.K1P) AR64305 09.1992 - 09.1998

ALFA ROMEO 164 (164_) 3.0 V6 (164.H1A, 164.H1B, 164.K1P) AR64399 09.1992 - 09.1998

ALFA ROMEO 164 (164_) 3.0 V6 (164.H1A, 164.H1B, 164.K1P) AR66303 09.1992 - 09.1998

ALFA ROMEO SPIDER (916_) 3.0 V6 (916S1) AR16101 06.1995 - 04.2005

ALFA ROMEO SPIDER (916_) 3.0 V6 (916S1) AR16199 04.1995 - 04.1998

ALFA ROMEO SPIDER (916_) 3.0 V6 (916S1B00) AR16105 09.1994 - 04.2005

ALFA ROMEO GTV (916_) 3.0 V6 24V (916.C1) AR16102 10.1996 - 10.2000

ALFA ROMEO GTV (916_) 3.0 V6 24V (916.C1B__) AR16105 10.2000 - 10.2005

ALFA ROMEO SPIDER (916_) 3.0 V6 24V (916S1) AR16102 01.1999 - 10.2003

ALFA ROMEO 166 (936_) 3.0 V6 24V (936A1000, 936A1001) AR34301 09.1998 - 06.2007

ALFA ROMEO 166 (936_) 3.0 V6 24V (936A1000, 936A1001) AR34302 09.1998 - 06.2007

ALFA ROMEO 166 (936_) 3.0 V6 24V (936A11__) AR36101 10.2000 - 06.2007

ALFA ROMEO 156 Sportwagon (932_) 3.2 GTA (932.BXB00) 932A.000 03.2002 - 05.2006

ALFA ROMEO 156 (932_) 3.2 GTA (932AXB) 932A.000 03.2002 - 09.2005

ALFA ROMEO 147 (937_) 3.2 GTA (937.AXL1) 932A.000 02.2003 - 03.2010

ALFA ROMEO GT (937_) 3.2 GTA (937CXP1B) 936A.000 11.2003 - 09.2010

ALFA ROMEO GTV (916_) 3.2 V6 24V (916CXB00) 936A6.000 04.2003 - 10.2005

ALFA ROMEO SPIDER (916_) 3.2 V6 24V (916SXB00) 936A6.000 04.2003 - 04.2005

ALFA ROMEO 166 (936_) 3.2 V6 24V (936AXB00, 936AXA00) 936A.000 10.2003 - 06.2007

FIAT CROMA (154_) 2500 V6 834G.000 06.1993 - 08.1996

LANCIA KAPPA (838_) 3.0 24V (838AD1AA, 838AD11A, 838XD1AA, 838ZD1AA) 838B.000 10.1994 - 10.2001

LANCIA KAPPA SW (838_) 3.0 24V (838BD11A) 838B.000 07.1996 - 10.2001

LANCIA KAPPA Coupe (838_) 3.0 24V (838CD, 838CD11A) 838B.000 09.1996 - 03.2001

LANCIA THESIS (841_) 3.0 V6 (841AXC1101) 841A.000 07.2002 - 07.2009

LANCIA THESIS (841_) 3.2 V6 (841.AXF110) 841L.000 05.2003 - 07.2009

LANCIA THEMA (834_) 3000 V6 (834GD, 834FD) 834F.000 08.1992 - 07.1994

LANCIA THEMA SW (834_) 3000 V6 (834GD, 834FD) 834F.000 09.1992 - 07.1994
