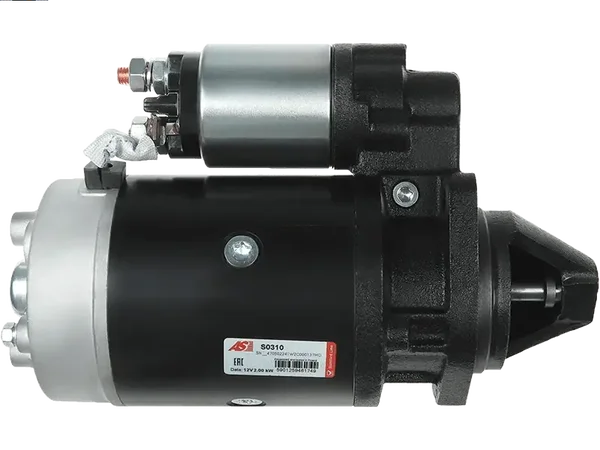

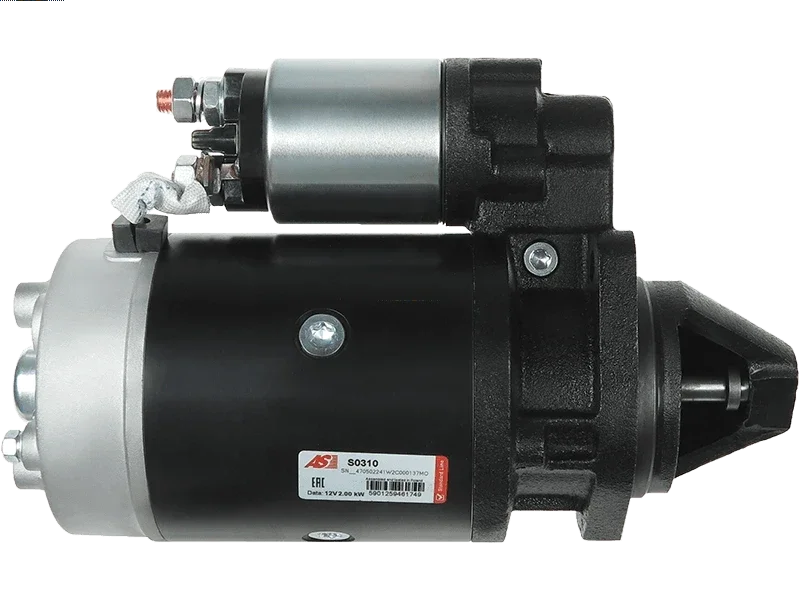

Démarreur Bosch 0001362047

Démarreur Bosch 0001362047

Référence : S0310

Référence OE : 0001362047

EAN: 5901259461749

Caractéristiques :

Tension [ V ] 12

Puissance [ kW ] 2.00

Rotation du demarreur CW

Taille A [ mm ] 82.00

Taille B [ mm ] 21.50

Nombre de dents [ qty. ] 9

Nombre de dents (s'insère dans) [ qty. ] 9

Nombre d'ouvertures dans la tete [ qty. ] 2

Nombre de trous filetes [ qty. ] 2

L.1 [ mm ] 290.00

O.1 [ mm ] 105.00

C.1 [ mm ] M12x1.75

C.2 [ mm ] M12x1.75

Balais charbons : BSX137-143 BSX139

Références démarreurs compatibles :

0001362001BOSCHListe

0001362002BOSCHListe

0001362029BOSCHListe

0001362030BOSCHListe

0001362047BOSCHListe

0001362600BOSCHListe

0001362601BOSCHListe

0001369004BOSCHListe

0986011150BOSCH

9000143406BOSCHListe

9000143408BOSCHListe

9000331419BOSCHListe

110368CARGO

F032110368CARGO

1516705RDAF

1516772RDAF

19024239DELCOListe

19024249DELCOListe

3917420FIAT

8EA726020-001HELLA

11.130.300ISKRA / LETRIKA

11.130.399ISKRA / LETRIKA

11.130.885ISKRA / LETRIKA

11.130.886ISKRA / LETRIKA

AZJ3107ISKRA / LETRIKAListe

AZJ3311ISKRA / LETRIKAListe

AZJ3312ISKRA / LETRIKAListe

AZJ3567ISKRA / LETRIKAListe

943251443010MAGNETI MARELLI

943252223MAGNETI MARELLI

943252223010MAGNETI MARELLI

944280111500MAGNETI MARELLI

MRS11150MAGNETI MARELLI

MSR425MAGNETI MARELLI

MSR516MAGNETI MARELLI

MS 323MAHLEListe

MS 326MAHLEListe

0011516201MERCEDES

0021506901MERCEDES

0021513001MERCEDES

0021515101MERCEDES

0021516901MERCEDES

002151690180MERCEDES

0031510701MERCEDES

003151070180MERCEDES

0031511101MERCEDES

003151110180MERCEDES

0031512001MERCEDES

003151200180MERCEDES

0031515401MERCEDES

003151540180MERCEDES

0041510901MERCEDES

004151090180MERCEDES

3151070180MERCEDES

3151200180MERCEDES

41510901MERCEDES

A0011516201MERCEDES

A0021506901MERCEDES

A0021513001MERCEDES

A0021515101MERCEDES

A0021516901MERCEDES

A002151690180MERCEDES

A0031510701MERCEDES

A003151070180MERCEDES

A0031511101MERCEDES

A003151110180MERCEDES

A0031512001MERCEDES

A003151200180MERCEDES

A0031515401MERCEDES

A003151540180MERCEDES

A0041510901MERCEDES

A004151090180MERCEDES

84043545NEW HOLLAND

20500534PRESTOLITE

35261130PRESTOLITEListe

433294VALEO

726108VALEO

D9R141VALEOListe

068911023AXVW

MD90800001VW

ND90800000VW

STRL2493EFFE

STRS0793EFFE

STRS2463EFFE

AES8116AUTOELECTRO

CST10185CASCO

CST10185ASCASCO

CST10185ESCASCO

CST10185GSCASCO

CST10185OSCASCO

CST10185RSCASCO

3467CEVAM

11830EFEL

STR1680ELECTROLOG

STR7840ELECTROLOG

STR79082ELECTROLOG

25-0188ELSTOCK

220082ERA

CS188HC PARTS

7431022000KASSBOHRER

7431028000KASSBOHRER

STB0188KRAUF

10188KUHNER

10716KUHNER

330707LOGISTIK

LRS00816LUCAS

LRS816LUCAS

88212270POWERMAX

550.009.092.010PSH

550.009.092.215PSH

550.009.092.460PSH

20401581BNREAL

6010185SANDO

MAV121850SIOM

STX200245STARDAX

STX200245RSTARDAX

STX200656STARDAX

STX200836STARDAX

16445NWAI / TRANSPO

91-15-6849WILSON

91-15-6849NWILSON

STR50243WOODAUTO



Convient pour :



AUDI 100 C2 Saloon (431, 433, 434) 2.0 D CN 08.1978 - 07.1982

AUDI 100 C2 Avant (435, 436) 2.0 D CN 08.1978 - 02.1983

AUDI 100 C3 Saloon (443, 444) 2.0 D Turbo DE 08.1982 - 07.1988



MERCEDES-BENZ 123 Saloon (W123) 200 D OM615.940 03.1979 - 11.1985

MERCEDES-BENZ /8 (W115) 200 D (115.115) OM615.913 01.1968 - 01.1977

MERCEDES-BENZ 123 Saloon (W123) 200 D (123.120) OM615.940 07.1976 - 02.1979

MERCEDES-BENZ T1 Platform/Chassis (601) 207 D 2.4 OM616.917 04.1977 - 12.1982

MERCEDES-BENZ T1 Van (601, 611) 207 D 2.4 OM616.937 06.1982 - 01.1990

MERCEDES-BENZ T1 Platform/Chassis (601) 207 D 2.4 OM616.937 12.1977 - 10.1989

MERCEDES-BENZ T1 Platform/Chassis (601) 207 D 2.4 OM616.939 12.1977 - 10.1989

MERCEDES-BENZ T1 Van (601, 611) 207 D 2.4 OM616.939 06.1982 - 01.1990

MERCEDES-BENZ T1 Bus (B601) 207 D 2.4 (601.371, 601.372, 601.376, 601.377) OM616.917 05.1977 - 12.1982

MERCEDES-BENZ T1 Bus (B601) 207 D 2.4 (601.371, 601.372, 601.376, 601.377) OM616.934 05.1977 - 12.1982

MERCEDES-BENZ T1 Bus (B601) 207 D 2.4 (601.371, 601.376, 601.377) OM616.937 07.1982 - 01.1990

MERCEDES-BENZ T1 Bus (B601) 207 D 2.4 (601.371, 601.376, 601.377) OM616.939 07.1982 - 01.1990

MERCEDES-BENZ T1 Platform/Chassis (601) 209 D 2.9 OM617.913 12.1982 - 01.1990

MERCEDES-BENZ T1 Van (601, 611) 209 D 2.9 OM617.913 12.1982 - 01.1990

MERCEDES-BENZ T1 Bus (B601) 209 D 2.9 OM617.913 12.1982 - 01.1990

MERCEDES-BENZ 123 Saloon (W123) 220 D OM615.941 01.1977 - 03.1979

MERCEDES-BENZ /8 (W115) 220 D (115.110) OM615.912 01.1968 - 01.1977

MERCEDES-BENZ 123 Saloon (W123) 220 D (123.126) OM615.941 01.1976 - 02.1979

MERCEDES-BENZ /8 (W115) 240 D (115.117) OM616.916 08.1973 - 01.1977

MERCEDES-BENZ 123 Saloon (W123) 240 D (123.123) OM616.912 02.1976 - 02.1979

MERCEDES-BENZ 123 Saloon (W123) 240 D (123.123) OM616.912 03.1979 - 11.1985

MERCEDES-BENZ /8 (W115) 240 D 3.0 (115.114) OM617.910 08.1974 - 11.1976

MERCEDES-BENZ G-CLASS (W460) 240 GD (460,3) OM616.936 03.1979 - 08.1987

MERCEDES-BENZ G-CLASS Cabrio (W460) 240 GD (460.310, 460.341) OM616.936 03.1979 - 08.1989

MERCEDES-BENZ G-CLASS Cabrio (W460) 240 GD (460.310, 460.341) OM616.938 03.1979 - 08.1989

MERCEDES-BENZ 123 T-Model (S123) 240 T D OM616.912 09.1977 - 02.1979

MERCEDES-BENZ 123 T-Model (S123) 240 T D (123.183) OM616.912 03.1979 - 12.1985

MERCEDES-BENZ 123 Coupe (C123) 300 C Turbo-D (123.153) OM617.952 09.1981 - 07.1985

MERCEDES-BENZ 123 Saloon (W123) 300 D (123.130) OM617.912 02.1976 - 07.1980

MERCEDES-BENZ 123 Saloon (W123) 300 D (123.130) OM617.912 03.1979 - 11.1985

MERCEDES-BENZ G-CLASS (W460) 300 GD (460,3) OM617.931 12.1979 - 12.1991

MERCEDES-BENZ G-CLASS Cabrio (W460) 300 GD (460.312, 460.343) OM617.931 11.1979 - 08.1989

MERCEDES-BENZ G-CLASS Cabrio (W460) 300 GD (460.312, 460.343) OM617.932 11.1979 - 08.1989

MERCEDES-BENZ 123 T-Model (S123) 300 T D (123.190) OM617.912 03.1979 - 11.1985

MERCEDES-BENZ 123 T-Model (S123) 300 T D (123.190) OM617.912 09.1977 - 10.1985

MERCEDES-BENZ 123 T-Model (S123) 300 T Turbo-D (123.193) OM617.952 10.1980 - 11.1985

MERCEDES-BENZ 123 Saloon (W123) 300 Turbo-D (123.133) OM617.952 08.1981 - 07.1985

MERCEDES-BENZ T1 Platform/Chassis (B602) 307 D 2.4 OM616.937 06.1982 - 01.1990

MERCEDES-BENZ T1 Van (B602) 307 D 2.4 OM616.937 10.1982 - 01.1990

MERCEDES-BENZ T1 Platform/Chassis (B602) 307 D 2.4 OM616.937 04.1977 - 01.1983

MERCEDES-BENZ T1 Van (B602) 307 D 2.4 OM616.939 10.1982 - 01.1990

MERCEDES-BENZ T1 Platform/Chassis (B602) 307 D 2.4 OM616.939 06.1982 - 01.1990

MERCEDES-BENZ T1 Van (B602) 309 D 3.0 OM617.913 10.1982 - 01.1990

MERCEDES-BENZ T1 Platform/Chassis (B602) 309 D 3.0 OM617.913 10.1982 - 01.1990

MERCEDES-BENZ T1/TN Platform/Chassis 407 D (611.317, 611.318) OM616.913 07.1981 - 01.1989

MERCEDES-BENZ T1/TN Platform/Chassis 407 D (611.317, 611.318) OM616.939 07.1981 - 01.1989

MERCEDES-BENZ T1/TN Van 407 D (611.367, 611.368) OM616.913 07.1981 - 01.1989

MERCEDES-BENZ T1/TN Van 407 D (611.367, 611.368) OM616.939 07.1981 - 01.1989

MERCEDES-BENZ T1/TN Platform/Chassis 409 D (611.417, 611.418) OM617.913 04.1982 - 01.1989

MERCEDES-BENZ T1/TN Van 409 D (611.467, 611.468) OM617.913 04.1982 - 01.1989

MERCEDES-BENZ T2/LN1 Platform/Chassis 507 D (667.301, 667.302, 667.341, 667.342) OM616.914 04.1986 - 04.1989

MERCEDES-BENZ T2/LN1 Van 507 D (667.361, 667.362) OM616.914 04.1986 - 04.1989

MERCEDES-BENZ T2/LN1 Platform/Chassis 507 DK (667.341, 667.342) OM616.914 04.1986 - 04.1989

MERCEDES-BENZ MB Bus (W631) D OM616.963 12.1990 - 12.1994

MERCEDES-BENZ MB Van (W631) D (631.332, 631.342) OM616.963 12.1990 - 02.1996

MERCEDES-BENZ MB Van (W631) D (631.332, 631.342) OM616.963 02.1988 - 05.1992

MERCEDES-BENZ MB Bus (W631) D (631.333, 631.343, 631.334, 631.344) OM616.963 02.1988 - 05.1992

MERCEDES-BENZ MB Bus (W631) D (631.333, 631.343, 631.334, 631.344) OM616.963 12.1990 - 02.1996

MERCEDES-BENZ MB Platform/Chassis (W631) D (631.340) OM616.963 12.1990 - 02.1996

MERCEDES-BENZ MB Platform/Chassis (W631) D (631.340) OM616.963 02.1988 - 05.1992

MERCEDES-BENZ T2/L Platform/Chassis L 407 D (309.100, 309.101, 309.102, 309.103) OM616.910 01.1975 - 12.1988

MERCEDES-BENZ T2/L Van L 407 D (309.111, 309.112, 309.113, 309.114, 309.115,... OM616.910 01.1975 - 12.1988

MERCEDES-BENZ UNIMOG U 45 OM615.911 01.1966 - 04.1971

MERCEDES-BENZ UNIMOG U 52, U 60, U 600,U 600L OM616.911 01.1977 - 05.1988

MERCEDES-BENZ UNIMOG U 52, U 60, U 600,U 600L OM616.915 01.1977 - 05.1988

MERCEDES-BENZ UNIMOG U 52, U 60, U 600,U 600L OM616.931 01.1977 - 05.1988

MERCEDES-BENZ UNIMOG U 52, U 60, U 600,U 600L OM616.932 01.1977 - 05.1988

MERCEDES-BENZ UNIMOG U 600 OM616.942 05.1988 -

MERCEDES-BENZ UNIMOG U 600 OM616.942 05.1988 -

MERCEDES-BENZ UNIMOG U 600 OM616.943 05.1988 -

MERCEDES-BENZ UNIMOG U 600 OM616.943 05.1988 -

MERCEDES-BENZ UNIMOG U 60T, U 600T OM616.911 01.1977 - 05.1988

MERCEDES-BENZ UNIMOG U 60T, U 600T OM616.915 01.1977 - 05.1988

MERCEDES-BENZ UNIMOG U 60T, U 600T OM616.931 01.1977 - 05.1988

MERCEDES-BENZ UNIMOG U 60T, U 600T OM616.932 01.1977 - 05.1988

MERCEDES-BENZ UNIMOG U 650,U 650L OM616.942 05.1988 -

MERCEDES-BENZ UNIMOG U 650,U 650L OM616.942 05.1988 -

MERCEDES-BENZ UNIMOG U 650,U 650L OM616.943 05.1988 -

MERCEDES-BENZ UNIMOG U 650,U 650L OM616.943 05.1988 -



PUCH G-MODELL (W460) 240 GD (460.330, 460.331) OM616.936 03.1979 - 09.1987

PUCH G-MODELL (W460) 240 GD (460.330, 460.331) OM616.938 03.1979 - 09.1987

PUCH G-MODELL (W460) 300 GD (460.332, 460.333) OM617.931 09.1979 - 12.1991

PUCH G-MODELL (W460) 300 GD (460.332, 460.333) OM617.932 09.1979 - 12.1991



SEAT 132 (132A) 2.2 D OM615.912 05.1979 - 12.1982



VOLVO 264 2.4 GL D24 01.1980 - 01.1981

VOLVO 264 2.4 GLE D24 01.1980 - 01.1980

VOLVO 265 2.4 GLE D24 01.1980 - 01.1980
